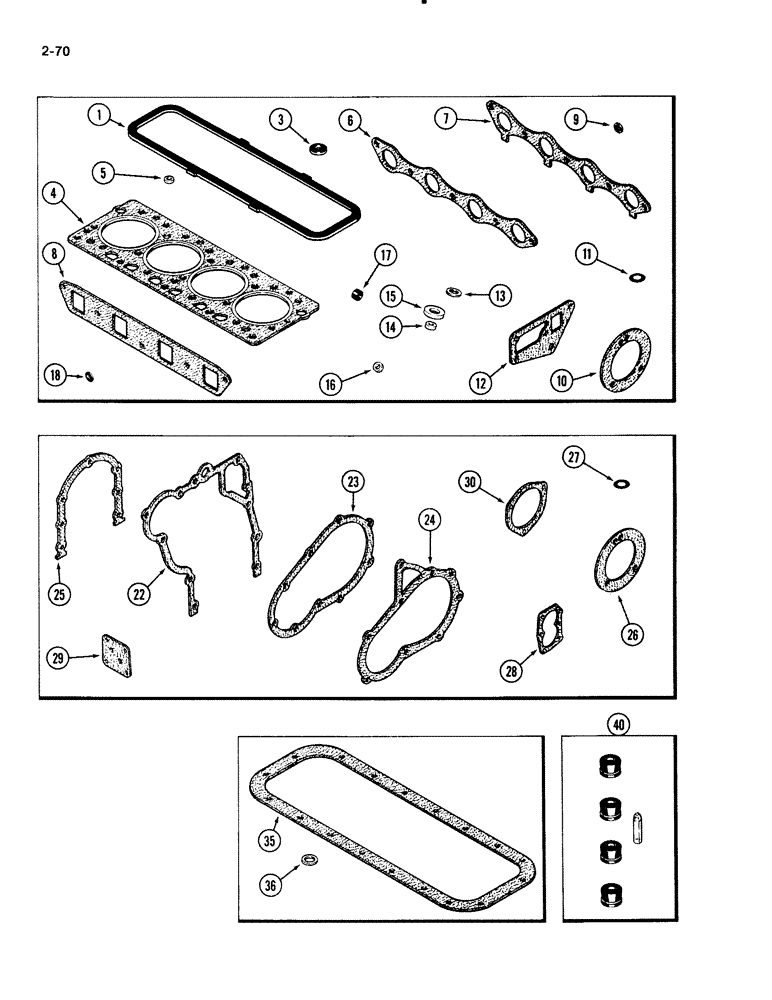

Запчасти Case IH 1835B (2-70) - ENGINE GASKET KITS, 188 DIESEL ENGINE (02) - ENGINE

A155589

GASKET KIT

valve grind, Includes: Ref. 1-18

1шт.

For complete engine overhaul order A155589, A43198 and A44758.

1шт.

1

A43030

GASKET,3.05mm Thk

valve, Serial Range: cover-head

1шт.

3

A142098

GROMMET

valve cover studs

2шт.

4

A148745

CYLINDER HEAD GASKET

cylinder, Serial Range: head-block

1шт.

5

G46851

SEAL

valve stem

8шт.

6

G46872

MANIFOLD GASKET

exhaust manifold to head, without turbocharger

1шт.

7

A155137

GASKET

exhaust manifold, with turbocharger, Not used this application

1шт.

8

G46871

GASKET

intake, Serial Range: manifold-head

1шт.

9

A50694

DISC

WASHER seal, intake manifold stud

3шт.

10

A38083

GASKET

water pump

1шт.

11

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

water pump body, 3/4 inch, 20 mm ID

1шт.

12

A38084

GASKET,1.27mm Thk

water pump, Serial Range: body-head

1шт.

13

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

GASKET fuel injection, Serial Range: lines-pump

8шт.

14

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon stop, injector nozzle

4шт.

15

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

seal, injector nozzle

4шт.

16

G49068

GASKET

injector nozzle, Not used this application

4шт.

17

222-101

SLEEVE,3/16" Tube

3/16 inch tube, Not used this application

4шт.

18

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

manifold stud, Not used this application

3шт.

A43198

GASKET

KIT cylinder block, Includes: Ref. 22-30

1шт.

For complete engine overhaul order A155589, A43198 and A44758.

1шт.

22

A51529

GASKET

timing gear, Serial Range: cover-block

1шт.

23

A39925

GASKET

drive gear cover

1шт.

24

G46859

GASKET

drive gear cover, Not used this application

1шт.

25

A39188

GASKET

oil seal retainer

1шт.

26

A38083

GASKET

water pump

1шт.

27

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

water pump, 3/4 inch, 20 mm ID

1шт.

28

G46852

GASKET

oil pump cover

1шт.

29

G46854

GASKET

oil filter bracket, Not used this application

1шт.

30

A30042

GASKET

power steering pump, Not used this application

1шт.

A44758

GASKET

KIT oil pan, Includes: Ref. 35-36

1шт.

For complete engine overhaul order A155589, A43198 and A44758.

1шт.

35

NSS

NOT SOLD SEPARAT

GASKET pan to block, Ref. No. A35273

1шт.

36

A58608

GASKET

drain plug, nylon

1шт.

36

A34827

GASKET

drain plug, copper, Not used this application

1шт.

40

M20611

SEAL KIT

SEAL KIT valve stem, Includes: 4 seals and tool

1шт.
