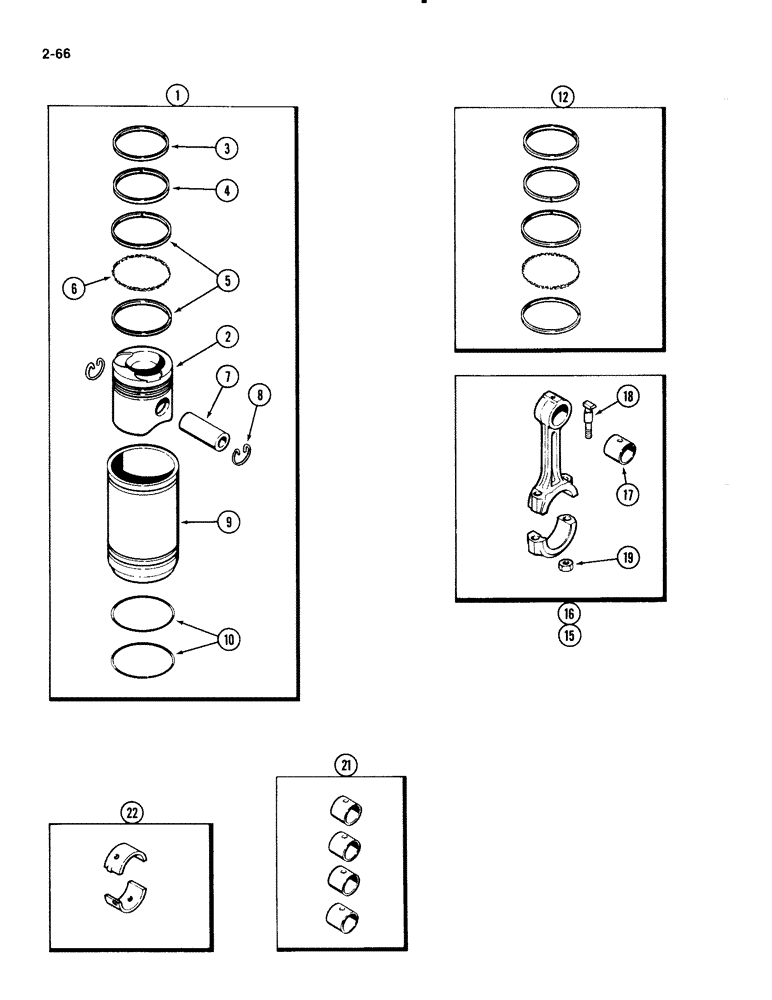

Запчасти Case IH 1835B (2-66) - PISTON ASSEMBLY, 188 DIESEL ENGINE (02) - ENGINE

1

A151995

SLEEVE ASSY

PISTON ASSEMBLY engine, Includes: Ref. 2-10, piston assembly 188 diesel engine

4шт.

2

A38424

PISTON

engine, piston assembly 188 diesel engine

1шт.

3

A51189

RING

compression, top groove, See Ref. 12, piston assembly 188 diesel engine

1шт.

4

G4817

RING

compression, second groove, See Ref. 12, piston assembly 188 diesel engine

1шт.

5

G47155

RAIL

oil control ring, See Ref. 12, piston assembly 188 diesel engine

2шт.

6

G47174

SPRING

SPACER oil control ring, See Ref. 12, piston assembly 188 diesel engine

1шт.

7

A35770

PISTON PIN,31.75mm OD x 80.44mm L

PIN piston, piston assembly 188 diesel engine

1шт.

8

G46702

RING, LOCKING

RING retaining, piston assembly 188 diesel engine

2шт.

9

A39006

SLEEVE

piston, piston assembly 188 diesel engine

1шт.

10

G46888

O-RING,3.737" ID x 3.943" OD

sleeve seal, piston assembly 188 diesel engine

2шт.

12

A151857

PISTON RING SET

RING SET piston,assembly 188 diesel engine

4шт.

15

A182011

ROD

ASSEMBLY connecting, Includes: Ref. 17,18 and 19, With yellow color code, 1205 to 1229 Grams, 33 to 43 ounces connecting rod

1шт.

15

A182012

ROD, CONNECTING

ROD ASSEMBLY connecting, Includes: Ref. 17,18 and 19, With red color code, 1229 to 1253 Grams, 43 to 44 ounces, connecting rod

1шт.

15

A182013

ROD, CONNECTING

ROD ASSEMBLY connecting, Includes: Ref. 17,18 and 19, With blue color code, 1253 to 1277 Grams, 44 to 45 ounces, connecting rod

1шт.

A182014

ROD, CONNECTING

ROD ASSEMBLY KIT connecting, Set of 4 with no color code, Within 1/4 ounce, 7.08 grams of each other, connecting rod

1шт.

16

A136931

ROD, CONNECTING

ROD ASSEMBLY connecting, Includes: Ref. 17-19, connecting rod

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING rod, Order Ref. 21 No. A136712, connecting rod

1шт.

18

G49064

STEP BOLT

BOLT rod cap, connecting rod

2шт.

19

A51904

NUT

NUT cap bolt, connecting rod

2шт.

21

A44083

KIT

BUSHING SET connecting rod, Set of 4, connecting rod

1шт.

22

A46050

BEARING LINER,53.66mm ID x 56.82mm OD x 26.67mm W

INSERT KIT rod bearing, Set of 2, Standard, connecting rod

4шт.

22

A46051

BEARING LINER

INSERT KIT rod bearing, Set of 2, 0.002 inch, 0.0508 mm undersize, connecting rod

4шт.

22

A46052

BEARING LINER,53.4mm ID x 56.82mm OD x 26.67mm W

INSERT KIT rod bearing, Set of 2, 0.010 inch, 0.254 mm undersize, connecting rod

4шт.

22

A46053

BEARING LINER,53.15mm ID x 56.82mm OD x 26.67mm W

INSERT KIT rod bearing, Set of 2, 0.020 inch, 0.508 mm undersize, connecting rod

4шт.

22

A46054

BEARING LINER

INSERT KIT rod bearing, Set of 2, 0.030 inch, 0.762 mm undersize, connecting rod

4шт.
