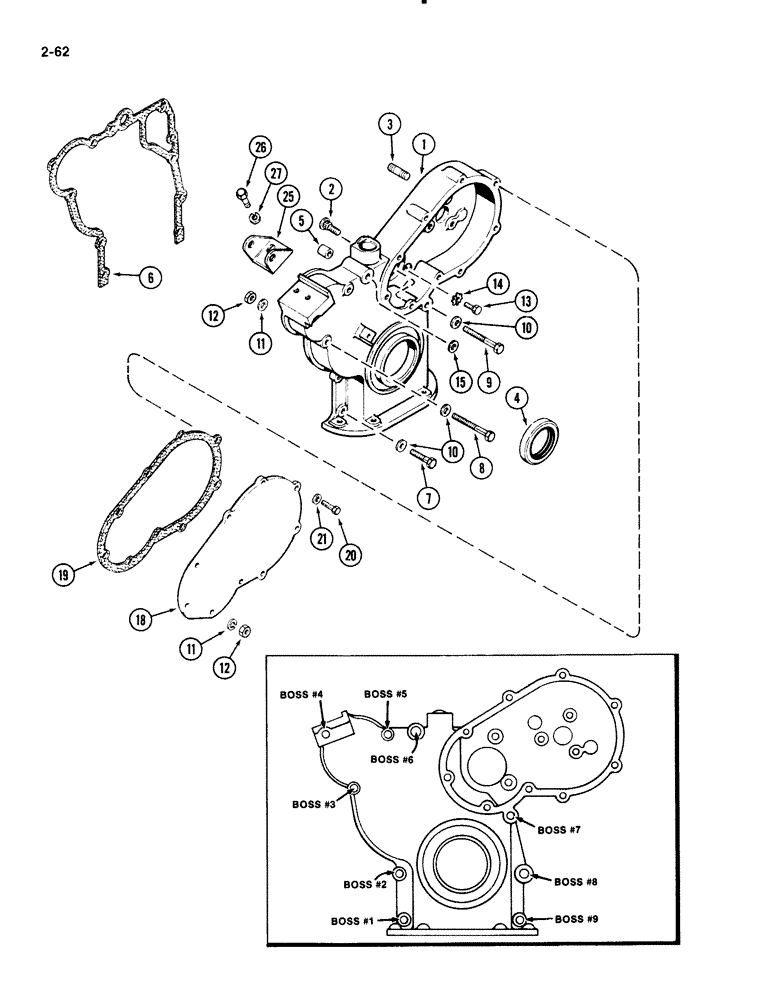

Запчасти Case IH 1835B (2-62) - TIMING GEAR COVER, 188 DIESEL ENGINE (02) - ENGINE

1

A51981

COVER

ASSEMBLY timing gear, Includes: Ref. 2-4

1шт.

2

A51649

STUD

cover

2шт.

3

G102128

BOLT

pump mounting, 1-7/16 inch

3шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

oil, crankshaft front

1шт.

5

A29442

RING

DOWEL locating

2шт.

6

A51529

GASKET

, Serial Range: cover-block

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Boss No. 1, 2, 9 Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch, Boss No. 8

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

hex, 3/8 NC x 2-3/4 inch, Boss No. 7

1шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

hex, 3/8 NC x 3 inch, Boss No. 6

1шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex, 3/8 NC x 3-1/2 inch, Boss No. 3, 4, 5

3шт.

10

A50820

WASHER

cover bolt

9шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

12

25-106

NUT,3/8"-16, G5

hex, 3/8 inch NC

5шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

14

193-53

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

15

95-6

WASHER,3/8"

flat, 7/16 x 1 x 1/16 inch, 11 x 25 x 2 mm, Boss No. 6

1шт.

18

A51908

COVER

COVER injection pump drive

1шт.

19

A39925

GASKET

drive cover

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

25

A160391

BRACKET

alternator

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
