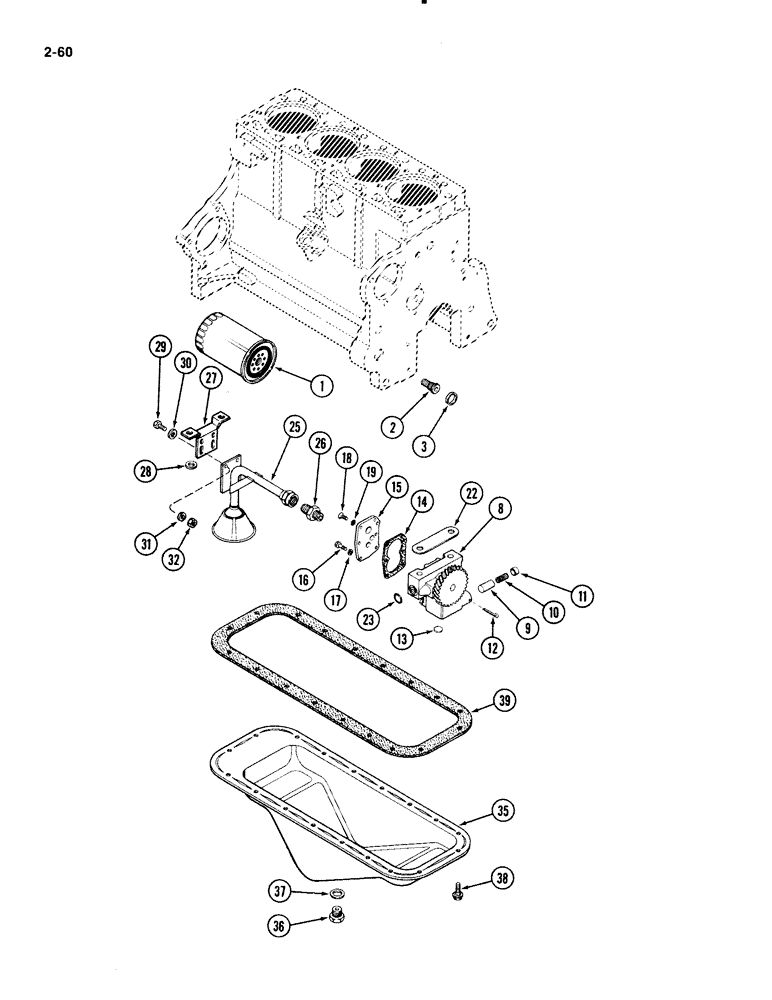

Запчасти Case IH 1835B (2-60) - OIL FILTER, 188 DIESEL ENGINE (02) - ENGINE

1

A146696

ENGINE OIL FILTER

FILTER engine oil, 188 diesel engine

1шт.

2

A153552

ADAPTER

ADAPTER filter to block, 188 diesel engine

1шт.

3

41-1016

PLUG,Cup, 1"

PLUG cup type, 1 inch diameter, 25 mm, 188 diesel engine

1шт.

8

A38372

PUMP

PUMP ASSEMBLY oil, New, Includes: Ref. 9-19, oil pump

1шт.

8

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

8

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

9

A155144

VALVE, PRESSURE RELI

EF VALVE relief, oil pump

1шт.

10

G48500

SPRING

SPRING relief valve, oil pump

1шт.

11

A29260

RETAINER

RETAINER spring, oil pump

1шт.

12

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4", oil pump

1шт.

13

A39321

PLUG,Cup, 7/16"

PLUG cup type, 1/2 inch,13 mm, diameter, oil pump

1шт.

14

G46852

GASKET

GASKET pump cover, oil pump

1шт.

15

NSS

NOT SOLD SEPARAT

COVER pump body, Ref. No. G11838, oil pump

1шт.

16

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, , Oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

16

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Oil pump 1/4"

4шт.

18

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW flat head, 1/4 NC x 5/8 inch, oil pump

2шт.

19

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

22

G11337

SHIM,.002" Thk

SHIM, , Pump mounting (0.0508 mm), Oil pump .002" Thk

1шт.

22

G11337

SHIM,.002" Thk

SHIM, , Pump mounting (0.0508 mm), Oil pump .002" Thk

1шт.

22

G11338

SHIM,.005" Thk

SHIM, , Pump mounting (0.127 mm), Oil pump .005" Thk

1шт.

23

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O-RING oil port, oil pump

1шт.

25

A156794

FILTER SCREEN

SCREEN ASSEMBLY suction, oil pump

1шт.

26

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR 5/8 tube 7/8-14 thread x 3/8 inch PT, oil pump

1шт.

27

A156845

BRACKET

BRACKET support screen, oil pump

1шт.

28

G35009

WASHER

WASHER hardened, oil pump

2шт.

29

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, , Oil pump Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

30

195-102

WASHER,1/4"

WASHER flat, 5/16 x 3/4 x 1/16 inch, 8 x 19 x 2 mm, oil pump

2шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Oil pump 1/4"

2шт.

32

25-104

NUT,1/4"-20, G5

NUT, , Oil pump 1/4"-20, G5

2шт.

35

A36782

PAN

PAN ASSEMBLY oil, Includes: Ref. 36-37,oil pan

1шт.

36

A140222

PLUG

PLUG drain, oil pan

1шт.

37

A58608

GASKET

GASKET drain plug, oil pan

1шт.

38

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT hex, 5/16 NC x 3/4 inch, Sems, oil pan

18шт.

39

REF

INSTRUCTION

GASKET pan to block, Order A44758 Fig. 2-70, oil pan

1шт.
