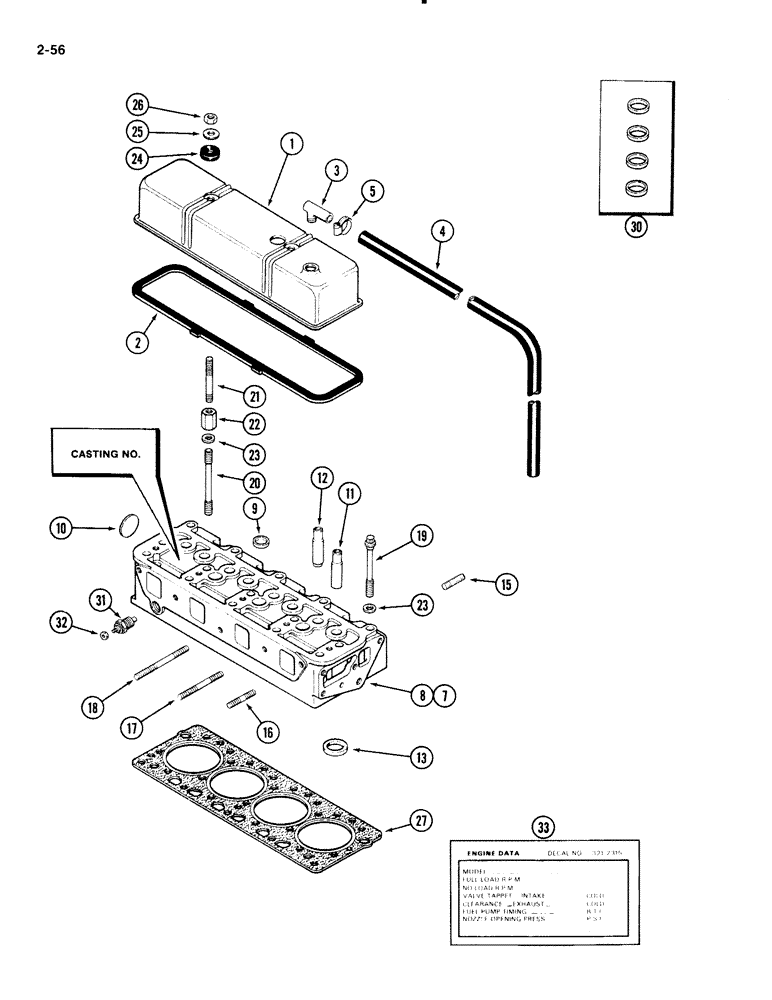

Запчасти Case IH 1835B (2-56) - CYLINDER HEAD AND COVER, 188 DIESEL ENGINE (02) - ENGINE

1

A36815

COVER

cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

, Serial Range: cover-head

1шт.

3

A9155

90 ELBOW

breather

1шт.

4

A39570

HOSE

breather

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP tube, 9/16 to 1-1/16 inch

1шт.

7

AR166025

REMAN-CYLINDER HEAD

HEAD ASSEMBLY cylinder, remanufactured, With valves, springs and retainers, North America only

1шт.

7

AC166025

CORE-CYLINDER HEAD

RETURN NUMBER cylinder head, with valves, springs and retainers, Use this number when returning head for credit

1шт.

8

A166029

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder New, Casting No. A155925, With drilled push rod holes, Includes: Ref. 9-18

1шт.

9

41-1016

PLUG,Cup, 1"

cup type, 1 inch diameter, 25 mm

3шт.

10

41-1028

PLUG,Cup, 1 3/4"

cup type, 1-3/4 inch diameter, 44 mm

1шт.

11

G2069

GUIDE

exhaust valve

4шт.

12

G2068

GUIDE

intake valve

4шт.

13

NSS

NOT SOLD SEPARAT

INSERT exhaust valve seat, Order Ref. 30, No. A39268

4шт.

15

A29431

STUD

exhaust manifold, 1-3/4 inch

2шт.

16

A140924

STUD

intake manifold, 2-5/8 inch

2шт.

17

A153248

STUD

intake manifold, 4-13/16 inch

2шт.

18

A51500

STUD

intake manifold, 5-5/16 inch

1шт.

19

A39047

12 PT SCREW

BOLT head to block, 3-1/2 inch, 12 point head

4шт.

19

A39048

12 PT SCREW

BOLT head to block, 5-1/8 inch, 12 point head

11шт.

19

A39049

12 PT SCREW

BOLT head to block, 5-5/8 inch, 12 point head

2шт.

20

A36902

STUD

lower, cover, 5-5/8 inch

2шт.

21

A51271

STUD

upper, cover, 3-3/4 inch

2шт.

22

A51114

NUT

connector, head stud

2шт.

23

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

head stud

19шт.

24

A142098

GROMMET

cover stud

2шт.

25

195-137

WASHER,13/32" x 1 1/8" x .180"

flat, 13/32 x 1-1/8 x 3/16 inch, 10 x 29 x 5 mm

2шт.

26

25-106

NUT,3/8"-16, G5

hex, 3/8 inch NC

2шт.

27

REF

INSTRUCTION

GASKET head to block, See Fig. 2-70

1шт.

30

A39268

INSERT

KIT exhaust valve seat

4шт.

31

A154283

SWITCH

UNIT sender, engine temperature

1шт.

32

193-1000

NUT,Keps, w/LW,#10-32

Keps, No. 10 NF

1шт.

33

321-6284

DECAL

engine data, on cover

1шт.
