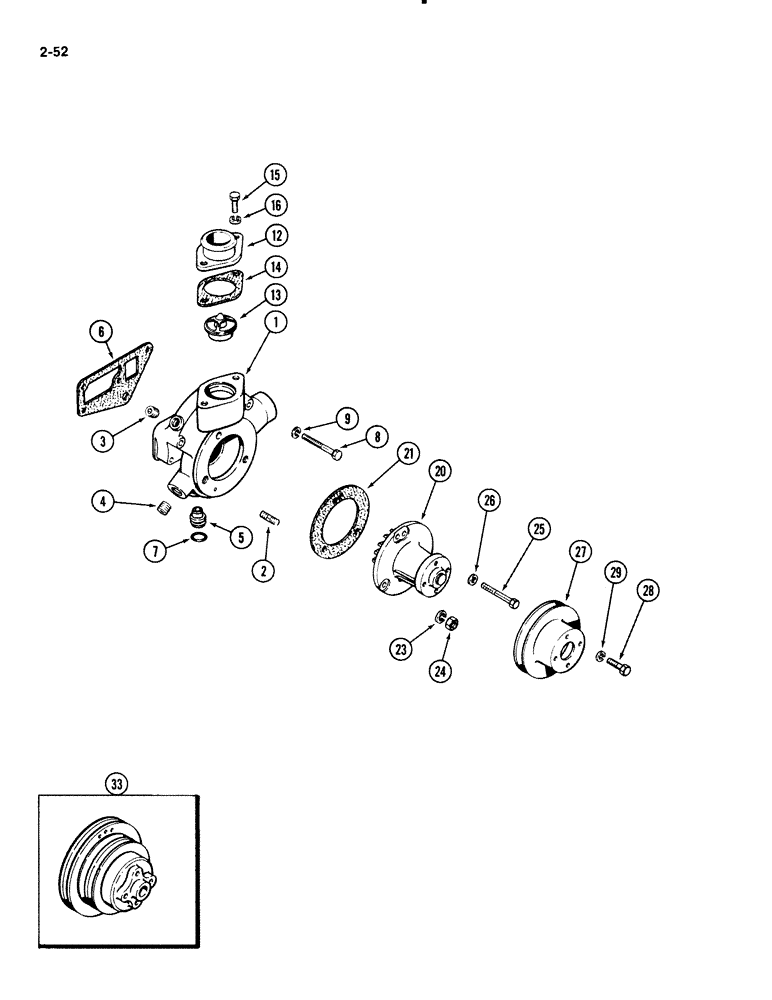

Запчасти Case IH 1835B (2-52) - WATER PUMP AND THERMOSTAT, 188 DIESEL ENGINE (02) - ENGINE

1

A152801

BODY

BODY ASSEMBLY water pump, Includes: Ref. 2-5

1шт.

2

A29433

STUD

STUD water pump to body, 1 inch

2шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

PLUG socket head, 3/8 inch PT

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

PLUG socket head, 1/2 inch PT

1шт.

5

A152715

COUPLING

FITTING inlet

1шт.

6

A38084

GASKET,1.27mm Thk

GASKET, Serial Range: body-head

1шт.

7

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

O-RING body to cover

1шт.

8

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

BOLT hex, 3/8 NC x 1-7/8 inch

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT hex, 3/8 NC x 2-3/4 inch

2шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

12

G2144

FITTING

HOUSING thermostat

1шт.

13

A57641

THERMOSTAT

THERMOSTAT coolant, 180\ deF 82\ deC

1шт.

14

G46907

GASKET

GASKET thermostat housing

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

A146584

PUMP, WATER

PUMP ASSEMBLY water pump, Includes: Ref. 21

1шт.

20

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

20

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assembly

1шт.

20

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

20

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

20

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

21

A38083

GASKET

GASKET, Serial Range: pump-body

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

25

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT hex, 3/8 NC x 2-3/4 inch

1шт.

26

A7085

WASHER

WASHER copper

1шт.

27

G11339

PULLEY

PULLEY fan

1шт.

28

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

33

A51767

PUMP

PUMP ASSEMBLY water, Includes fan pulley, For optional noise control package

1шт.
