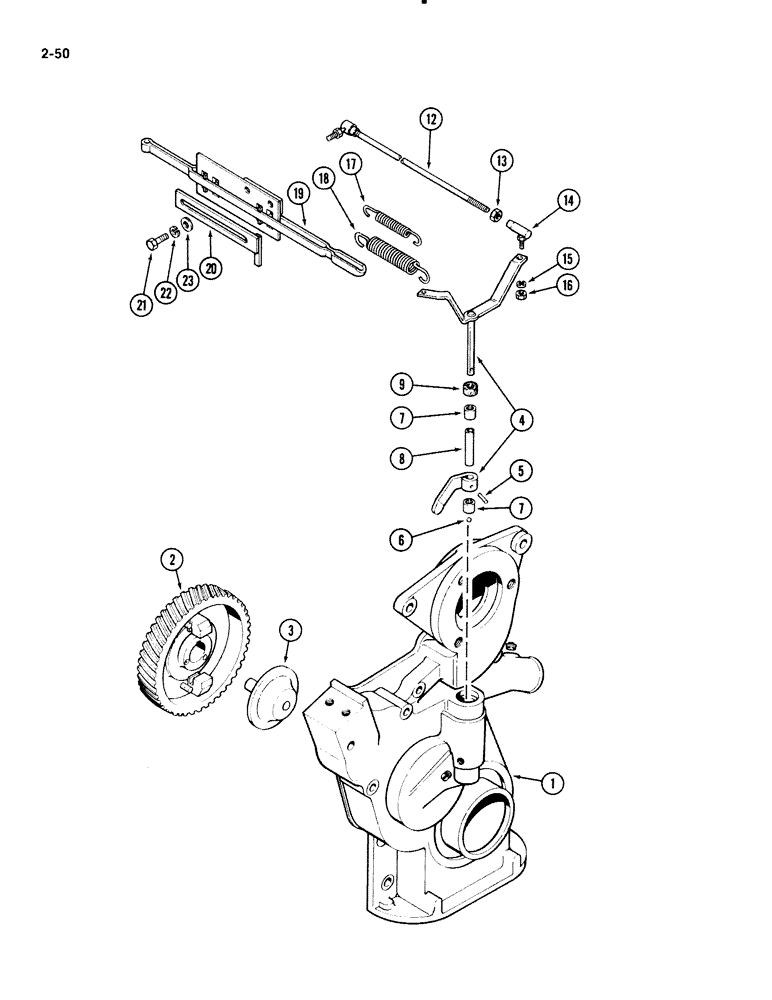

Запчасти Case IH 1835B (2-50) - GOVERNOR AND LINKAGE, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

REF

INSTRUCTION

COVER ASSEMBLY timing gear, See Fig. 2-30

1шт.

2

G37066

GEAR

ASSEMBLY camshaft, Includes governor weights

1шт.

3

A29957

SHAFT

ASSEMBLY governor

1шт.

4

A51754

LEVER

ASSEMBLY governor control, Includes: Ref. 5

1шт.

5

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

6

211-5

BALL,3/16" Dia

thrust, 3/16 inch, 5 mm diameter

1шт.

7

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING needle, lever shaft

2шт.

8

A30012

SPACER

thrust, governor lever shaft

1шт.

9

A30011

SEAL

dust, lever shaft

1шт.

12

A38301

ROD

ASSEMBLY throttle, Includes: Ref. 13-14

1шт.

13

25-114

NUT,1/4"-28, G5

hex, 1/4 inch NF

1шт.

14

A10329

BALL JOINT,1/4" - 28 x 1"

rod end

1шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

16

25-114

NUT,1/4"-28, G5

hex, 1/4 inch NF

2шт.

17

G47064

SPRING

inner, governor control

1шт.

Ref. 17 ,G47064 and Ref. 18, A30711 springs S/B switched.The G47064 is the outer and the A30711 is the inner spring.

1шт.

18

A30711

SPRING

outer, governor control

1шт.

19

G45793

ROD

ASSEMBLY governor control

1шт.

20

G45792

STOP

GUIDE control rod

1шт.

21

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

195-103

WASHER,5/16"

flat, 5/16 x 11/16 x 1/16 inch, 8 x 17 x 2 mm

2шт.
