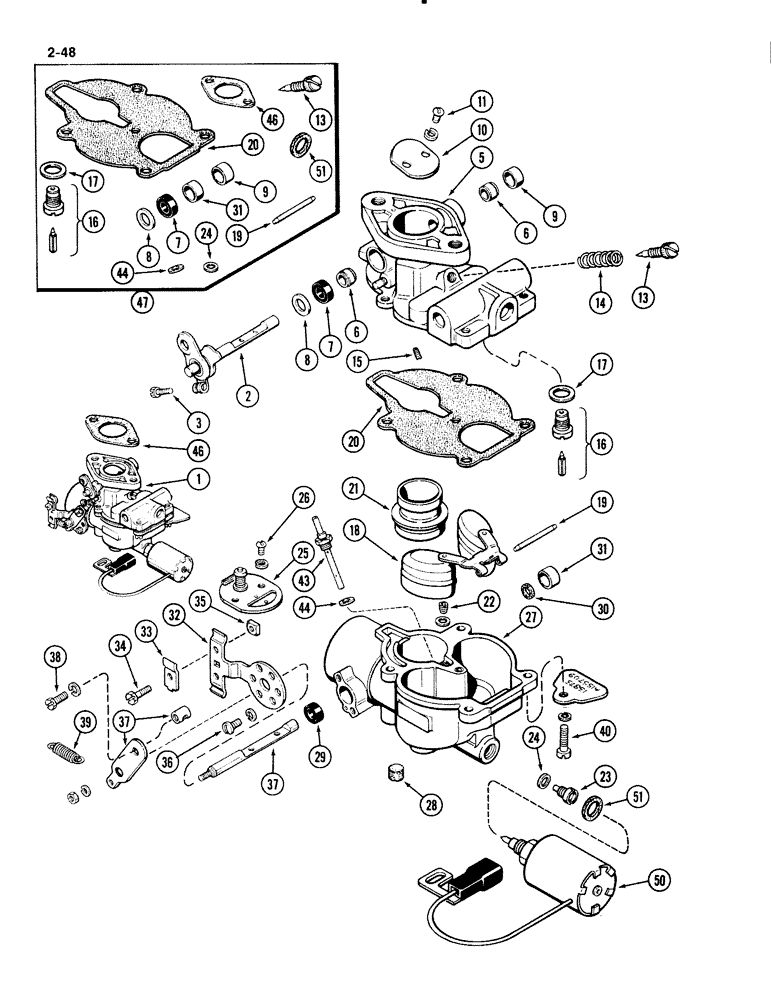

Запчасти Case IH 1835B (2-48) - CARBURETOR AND SOLENOID, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

A155709

CARBURETOR

ASSEMBLY Facet No. 13873, Includes: A155710

1шт.

carburetor, A155711 solenoid and A166172 gasket

1шт.

A155710

CARBURETOR

ASSEMBLY Facet No. OE-3604, Order A155709

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY throttle, Includes: Ref. 2

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW stop

1шт.

5

NSS

NOT SOLD SEPARAT

BODY throttle

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING throttle shaft

2шт.

7

A47774

RUBBER SEAL

throttle shaft

2шт.

Part of repair kit P/N A48388

1шт.

8

B59360

RETAINER

WASHER seal retaining

1шт.

Part of repair kit P/N A48388

1шт.

9

A40612

PLUG

throttle shaft hole

1шт.

Part of repair kit P/N A48388

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE throttle

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW throttle plate

2шт.

NSS

NOT SOLD SEPARAT

PLUG body Not Shown

2шт.

13

B51260

NEEDLE

NEEDLE idle adjusting

1шт.

Part of repair kit P/N A48388

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING adjusting

1шт.

15

NSS

NOT SOLD SEPARAT

JET idle

1шт.

16

A182056

VALVE

ASSEMBLY fuel, Includes: Ref. 17

1шт.

Part of repair kit P/N A48388

1шт.

17

B51618

WASHER

fiber

1шт.

Part of repair kit P/N A48388

1шт.

18

A48389

FLOAT

carburetor

1шт.

19

B51427

GASKET

AXLE float

1шт.

Part of repair kit P/N A48388

1шт.

20

A47773

GASKET

bowl

1шт.

Part of repair kit P/N A48388

1шт.

21

NSS

NOT SOLD SEPARAT

VENTURI carburetor

1шт.

22

NSS

NOT SOLD SEPARAT

JET well vent

1шт.

23

A47769

JET

main

1шт.

24

B51619

WASHER

main jet

1шт.

Part of repair kit P/N A48388

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY choke

1шт.

26

NSS

NOT SOLD SEPARAT

SCREW choke plate

2шт.

27

NSS

NOT SOLD SEPARAT

BOWL ASSEMBLY fuel, Includes: Ref. 28-31

1шт.

28

NSS

NOT SOLD SEPARAT

DISC drain

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER packing, felt

1шт.

Part of repair kit P/N A48388

1шт.

30

NSS

NOT SOLD SEPARAT

RETAINER felt

1шт.

31

B51509

PLUG

choke shaft hole

1шт.

Part of repair kit P/N A48388

1шт.

32

NSS

NOT SOLD SEPARAT

BRACKET choke cable, Includes: Ref. 33-35

1шт.

33

NSS

NOT SOLD SEPARAT

CLIP cable

1шт.

34

NSS

NOT SOLD SEPARAT

SCREW clip

1шт.

35

NSS

NOT SOLD SEPARAT

NUT clip retaining

1шт.

36

NSS

NOT SOLD SEPARAT

SCREW bracket

2шт.

37

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY choke, Includes: Ref. 38

1шт.

38

NSS

NOT SOLD SEPARAT

SCREW swivel

1шт.

39

NSS

NOT SOLD SEPARAT

SPRING return

1шт.

40

NSS

NOT SOLD SEPARAT

SCREW, Serial Range: bowl-body

4шт.

43

NSS

NOT SOLD SEPARAT

JET ASSEMBLY discharge

1шт.

44

B51624

WASHER

discharge jet

1шт.

Part of repair kit P/N A48388

1шт.

NSS

NOT SOLD SEPARAT

PLUG bowl drain, Not Shown

1шт.

46

A29956

GASKET

, Serial Range: carburetor-manifold

1шт.

Part of repair kit P/N A48388

1шт.

47

A48388

KIT

- repair, Includes: Ref. 7, 8, 9, 13, 16, 17, 19, 20, 24, 29, 31, 44, 46 and 51

1шт.

50

A155711

SOLENOID

shut-off

1шт.

51

A166172

WASHER

GASKET solenoid

1шт.

Part of repair kit P/N A48388

1шт.
