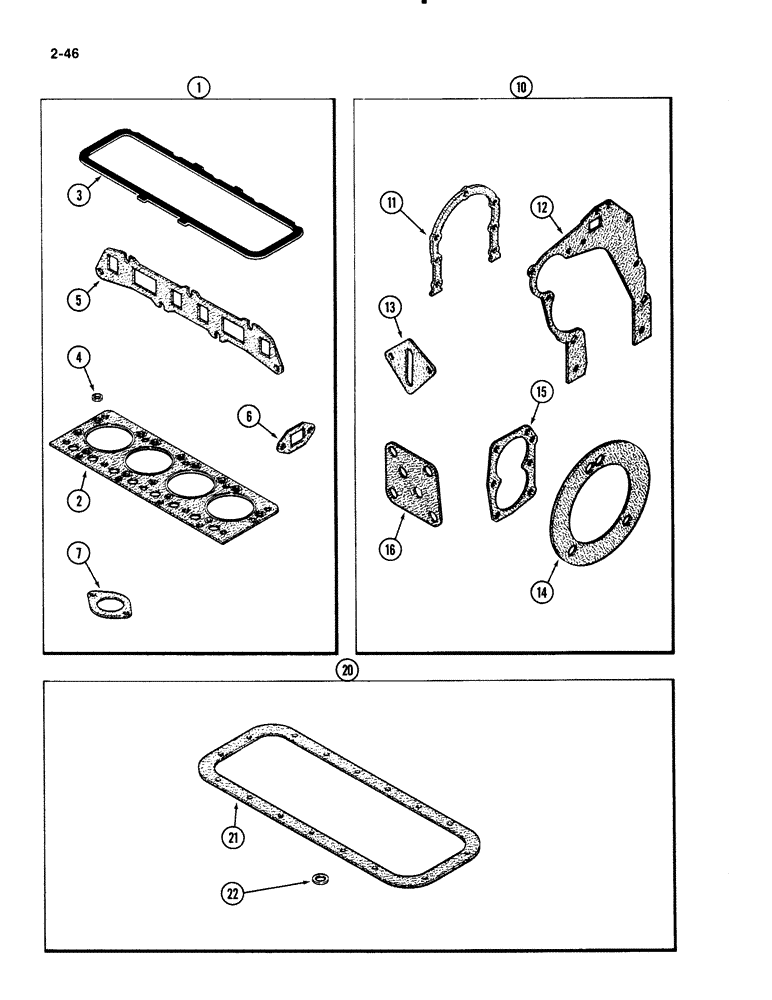

Запчасти Case IH 1835B (2-46) - ENGINE GASKET KITS, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

G11963

GASKET

KIT valve grind, Includes: Ref. 2-7

1шт.

For complete engine overhaul order G11963, A41465 and A40710.

1шт.

2

G46870

CYLINDER HEAD GASKET

cylinder, Serial Range: head-block

1шт.

3

A43021

GASKET

cylinder head cover

1шт.

4

G46851

SEAL

valve stem

4шт.

5

A30030

GASKET

, Serial Range: manifold-head

1шт.

6

A30003

GASKET

water outlet elbow

1шт.

7

A29956

GASKET

carburetor, With 11/32 inch bolt holes

1шт.

Ref #7A - Replaced by 1342824C1 03/20/96

1шт.

7

G46826

GASKET

carburetor, With 13/32 inch bolt holes, Not used this application

1шт.

10

A41465

GASKET

KIT cylinder block, Includes: Ref. 11-16

1шт.

For complete engine overhaul order G11963, A41465 and A40710.

1шт.

11

A39188

GASKET

rear oil seal retainer

1шт.

12

A38226

GASKET

timing gear, Serial Range: cover-block

1шт.

13

A65561

GASKET

fuel, Serial Range: pump-block

1шт.

14

A38083

GASKET

water pump

1шт.

15

G46852

GASKET

oil pump cover

1шт.

16

G46854

GASKET

oil filter bracket, Not used this application

1шт.

20

D128322

RELAY

GASKET KIT oil pan, Includes: Ref. 21-22

1шт.

For complete engine overhaul order G11963, A41465 and A40710.

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET oil pan, Reference No. A35271

1шт.

22

A58608

GASKET

drain plug, nylon

1шт.

22

A34827

GASKET

drain plug, Copper, Not used this application

1шт.
