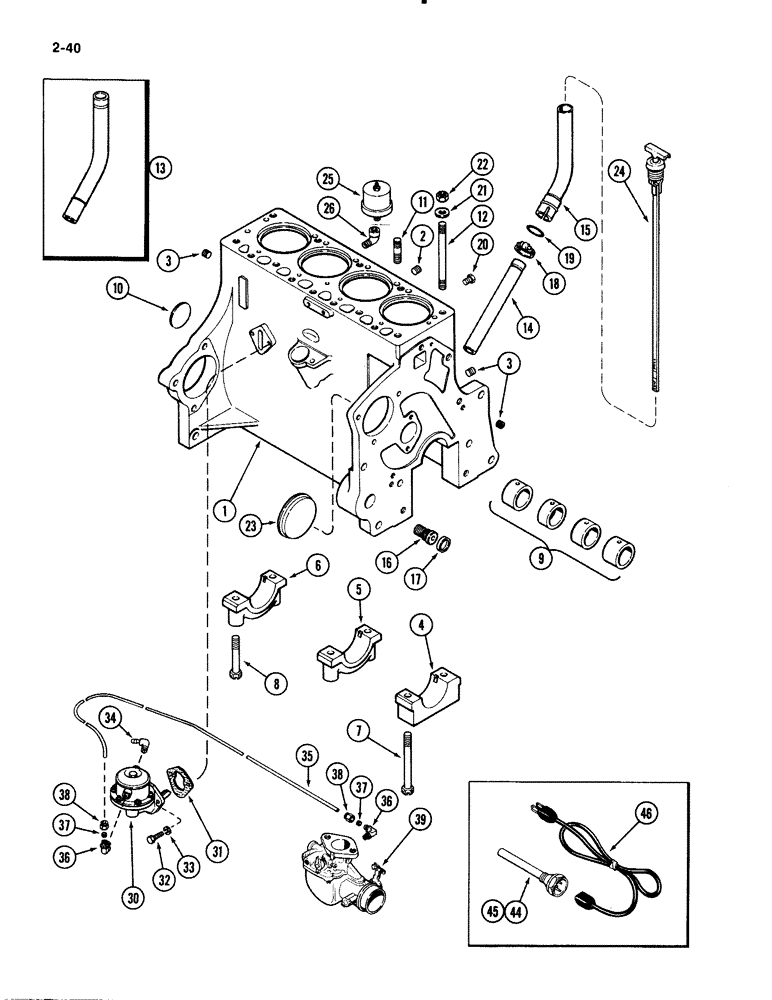

Запчасти Case IH 1835B (2-40) - CYLINDER BLOCK, 148B SPARK IGNITION ENGINE, FUEL PUMP, BLOCK HEATER (02) - ENGINE

A40586

SKELETON ENGINE

BLOCK ASSEMBLY short Includes stripped block, crankshaft and bearing, connecting rods, pistons, camshaft, oil pump and timing gears), 148B spark ignition engine

1шт.

1

A37828

SKELETON ENGINE

BLOCK ASSEMBLY stripped, Casting No. A37470, Includes Ref. 2-19, 148B spark ignition engine

1шт.

2

221-850

PLUG,Hex Soc, 1/16"-27

socket hex pipe, 1/16 inch PT, 148B spark ignition engine

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

148B spark ignition engine Hex Soc, 1/4"-18 NPTF

3шт.

4

G2035

CAP

front, main bearing, 148B spark ignition engine

1шт.

5

G2036

CAP

center, main bearing, 148B spark ignition engine

1шт.

6

G2037

CAP

rear, main bearing, 148B spark ignition engine

1шт.

7

G49059

BOLT

front bearing cap, 4-3/4 inch, hex special, 148B spark ignition engine

2шт.

8

G49037

BOLT

bearing cap, 3 inch, hex special, 148B spark ignition engine

4шт.

9

REF

INSTRUCTION

BUSHING SET camshaft, See Fig. 2-38, 148B spark ignition engine

1шт.

10

A39241

PLUG,Exp, 2.12" dia

expansion, 2-1/8 inch, diameter 54 mm, 148B spark ignition engine

1шт.

11

A30057

STUD

2 inch, 148B spark ignition engine

9шт.

12

A29436

STUD

5-7/8 inch, 148B spark ignition engine

5шт.

13

A39281

TUBE

oil filler, JI Case installed block, 148B spark ignition engine

1шт.

14

A37149

TUBE

oil filler, Service repair block, 148B spark ignition engine

1шт.

15

A37407

TUBE

oil filler, extension Service repair block, 148B spark ignition engine

1шт.

16

A153552

ADAPTER

oil filter, 148B spark ignition engine

1шт.

17

41-1016

PLUG,Cup, 1"

cup, 1 inch, diameter 25 mm, 148B spark ignition engine

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP tube retaining, 1-3/16 to 1-3/4 inch, 148B spark ignition engine

1шт.

19

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

tube seal, 148B spark ignition engine

1шт.

20

221-841

PLUG

hex head, 1/4 inch PT, 148B spark ignition engine

1шт.

21

G49404

WASHER

head stud nut, 148B spark ignition engine

14шт.

22

A30021

NUT

head stud, 148B spark ignition engine

14шт.

23

41-1052

PLUG,Cup, 3 1/4"

cup, 3-1/4 inch, diameter 83 mm, 148B spark ignition engine

1шт.

24

A136379

DIPSTICK

oil level, 148B spark ignition engine

1шт.

25

A162297

SWITCH

SENDER oil pressure, 148B spark ignition engine

1шт.

26

221-1401

ELBOW,45º, 1/8"-27, NPT

45 degree, 1/8 inch PT, 148B spark ignition engine

1шт.

30

G45778

PUMP

ASSEMBLY fuel, fuel pump

1шт.

31

A65561

GASKET

fuel pump to block, fuel pump

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Fuel pump Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Fuel pump 5/16"

2шт.

34

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

ELBOW barb, 5/16 hose end x 1/8 inch PT, fuel pump

1шт.

35

A141054

TUBE

LINE fuel, pump to carburetor, fuel pump

1шт.

36

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ASSEMBLY 90 degree, 5/16 tube 1/2-24 thread x 1/2-24 inch, fuel pump, Includes: Ref. 37-38, fuel pump

2шт.

37

222-653

SLEEVE,5/16" Tube, Comp

5/16 inch, tube, fuel pump

1шт.

38

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT 5/16 inch tube, fuel pump

1шт.

39

REF

INSTRUCTION

CARBURETOR ASSEMBLY engine fuel, See Fig. 2-48, fuel pump

1шт.

44

A182031

HEATER ASSY.

HEATER ASSEMBLY cylinder block Includes: Ref. 46, (Canadian), block heater

1шт.

45

A182030

HEATER

ASSEMBLY cylinder block,block heater

1шт.

46

A182034

CABLE

CORD ASSEMBLY heater, 18 inch, 457 mm long, block heater

1шт.

A182030 and A182031 WILL NOT fit 148B Gasoline engines...Diesel engines ONLY...per note in parts catalog...02DEC96...glc

1шт.
