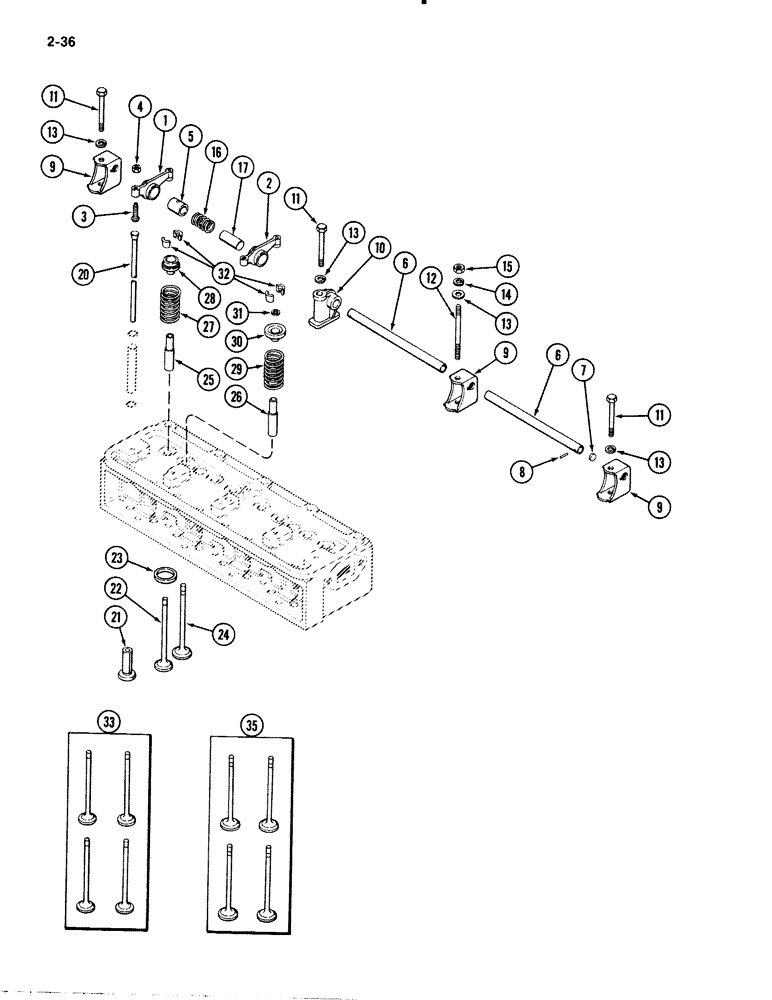

Запчасти Case IH 1835B (2-36) - VALVE MECHANISM, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

G45234

ARM

ASSEMBLY rocker, right Includes: Ref 3, 4 and 5

4шт.

2

G45235

ARM

ASSEMBLY rocker, left

4шт.

3

A31056

ADJUSTMENT SCREW,5/16" - 24 x 1 11/32"

SCREW adjusting

1шт.

4

25-155

JAM NUT,Jam, 5/16"-24, G5

hex jam, 5/16 inch NF

1шт.

5

A31055

BUSHING

rocker shaft

1шт.

6

A37197

SHAFT

ASSEMBLY rocker

2шт.

7

A26796

PLUG

shaft end

2шт.

8

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

9

G46250

BRACKET

rocker shaft

4шт.

10

G2107

BRACKET

center, rocker shaft

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

hex, 3/8 NC x 2-3/4 inch

3шт.

12

G49505

STUD

bracket, 4-5/8 inch

2шт.

13

D41740

WASHER

flat, hardened

4шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

hex, 3/8 inch NC

2шт.

16

A30007

SPRING

rocker shaft

4шт.

17

A30008

SPACER

rocker shaft

2шт.

20

G11086

ROD

push

8шт.

21

A30006

TAPPET

LIFTER push rod

8шт.

22

NSS

NOT SOLD SEPARAT

VALVE exhaust, Order Ref. 33 No. G46242

4шт.

23

G2106

INSERT

exhaust valve seat

4шт.

24

NSS

NOT SOLD SEPARAT

VALVE intake, Order Ref. 35 No. G46241

4шт.

25

A29954

GUIDE

exhaust valve

4шт.

26

A29955

GUIDE

intake valve

4шт.

27

G10004

SPRING

exhaust valve, 2-3/16 inch, 56 mm free length

4шт.

28

G10072

CAP

ROTATOR exhaust valve

4шт.

29

A30025

SPRING

intake valve, 2-3/8 inch, 60 mm free length

4шт.

30

G11717

RETAINER

intake valve

4шт.

31

G46851

SEAL

intake valve stem

4шт.

32

A30004

RETAINER

LOCK retainer, valve

16шт.

33

G11962

VALVE, ENG EXHAUST,

VALVE KIT exhaust Set of 4

1шт.

35

G11961

VALVE

KIT intake Set of 4

1шт.
