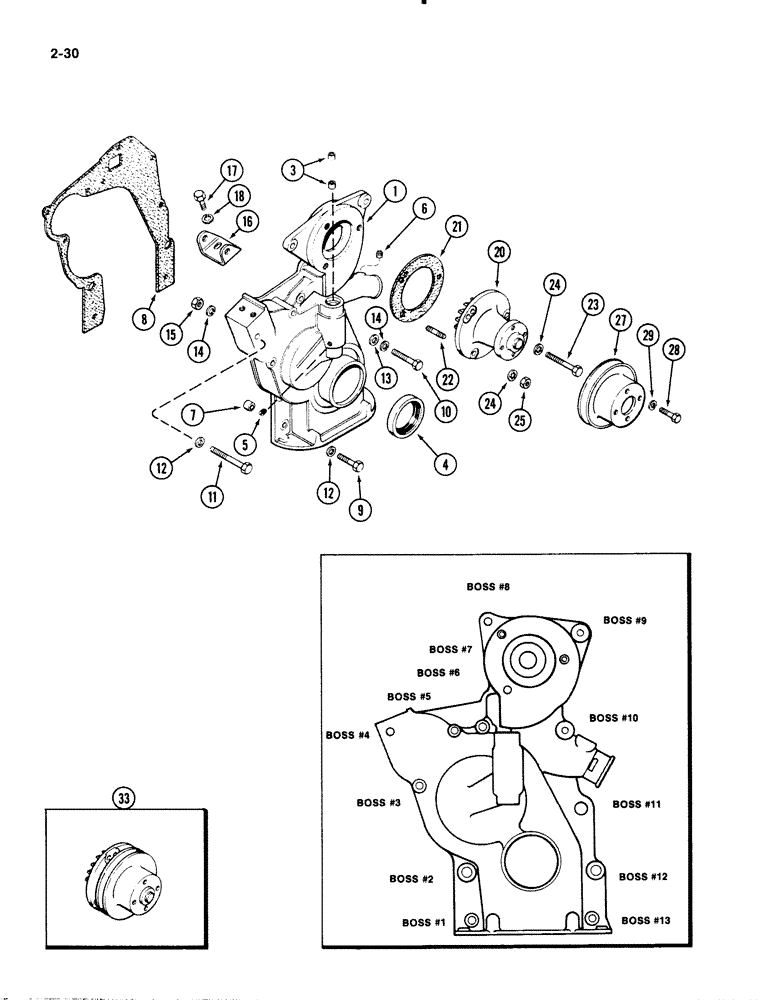

Запчасти Case IH 1835B (2-30) - TIMING GEAR COVER, 148B SPARK IGNITION ENGINE, WATER PUMP (02) - ENGINE

1

A39102

COVER

COVER ASSEMBLY timing gear, Includes: Ref. P/N NSS, 3-6, 148B spark ignition engine

1шт.

NSS

NOT SOLD SEPARAT

COVER timing gear Ref. No. A39103, 148B spark ignition engine

1шт.

3

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING needle, governor shaft, 148B spark ignition engine

2шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

SEAL oil, crankshaft, 148B spark ignition engine

1шт.

5

A30016

FITTING

PLUG slotted, 1/8 inch PT, 148B spark ignition engine

1шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

PLUG socket head, 1/8 inch PT, 148B spark ignition engine

1шт.

7

A29442

RING

PLUG dowel, cover locating, 148B spark ignition engine

2шт.

8

A38226

GASKET

GASKET cover to block, 148B spark ignition engine

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Boss 1, 11 and 13, 148B spark ignition engine Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT hex, 3/8 NC x 1-1/2 inch, Boss 2 and 12, 148B spark ignition engine

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Boss 6, 148B spark ignition engine Hex, 3/8"-16 x 2", G5

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, , Boss 10, 148B spark ignition engine Hex, 3/8"-16 x 2 1/4", G5

1шт.

11

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT hex, 3/8 NC x 3-1/4 inch, Boss 3, 4 and 5, 148B spark ignitio engine

3шт.

12

195-525

WASHER,3/8", SAE

WASHER flat, 3/8 x 13/16 x 1/16 inch, 10 x 21 x 2 mm, Boss 2 and 12, 148b spark ignition engine

2шт.

13

195-137

WASHER,13/32" x 1 1/8" x .180"

WASHER cover bolt, Boss 11, 148B spark ignition engine

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 148B Spark ignition engine 3/8"

10шт.

15

25-106

NUT,3/8"-16, G5

NUT hex, 3/8 inch NC, 148B spark ignition engine

3шт.

16

A160391

BRACKET

BRACKET mounting, alternator, 148B spark ignition engine

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , 148B spark ignition engine Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 148B Spark ignition engine 3/8"

2шт.

20

A146584

PUMP, WATER

PUMP ASSEMBLY- water, water pump

1шт.

20

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

20

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assembly

1шт.

20

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

20

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

20

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

21

A38083

GASKET

GASKET pump, water, water pump

1шт.

22

A29433

STUD

STUD mounting, pump, water, waterpump

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , Water pump Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

23

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT hex, 3/8 NC x 2-3/4 inch, water pump

1шт.

24

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Water pump Int Tooth, 3/8"

3шт.

25

25-106

NUT,3/8"-16, G5

NUT hex, 3/8 inch NC, water pump

1шт.

27

G11339

PULLEY

PULLEY fan, water pump

1шт.

28

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, , Water pump Hex, 5/16"-18 x 1/2", G5, Full Thd

4шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Water pump 5/16"

4шт.

33

A51767

PUMP

PUMP ASSEMBLY water Includes fan pulley, water

1шт.

.

For optional noise control package, water pump

1шт.
