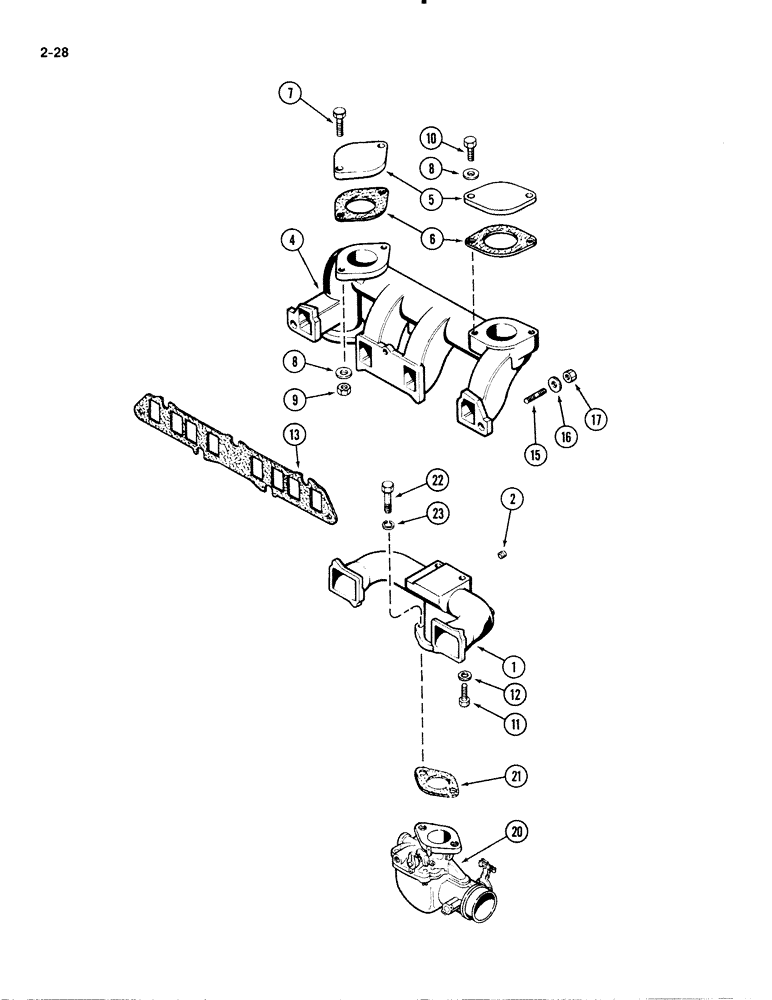

Запчасти Case IH 1835B (2-28) - MANIFOLDS, 148B SPARK IGNITION ENGINE, CARBURETOR (02) - ENGINE

1

A37172

MANIFOLD

intake, 148B spark ignition engine

1шт.

2

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG square head, 1/4 inch PT, 148B spark ignition engine

1шт.

A39231

MANIFOLD ASSY

MANIFOLD ASSEMBLY exhaust, Includes: Ref. 4-9, 148B spark ignition engine

1шт.

4

NSS

NOT SOLD SEPARAT

MANIFOLD exhaust Reference No. A39230, 148B spark ignition engine

1шт.

5

A38188

PLATE

cover, 148B spark ignition engine

2шт.

6

G46853

MANIFOLD GASKET

plate, 148B spark ignition engine

2шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

148B spark ignition engine Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

8

195-525

WASHER,3/8", SAE

flat, 3/8 x 13/16 x 1/16" 10 x 21 x 2 mm, 148B spark ignition engine

4шт.

9

131-903

NUT,3/8"-16

NUT hex, 3/8 inch NC Seez-Pruf, 148B spark ignition engine

4шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

148B spark ignition engine Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch, 148B spark ignition engine

1шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

148B spark ignition engine Hex, 3/8"-16 x 2", G5

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 148B Spark ignition engine 3/8"

2шт.

13

A30030

GASKET

manifolds to head, 148B spark ignition engine

1шт.

15

A29431

STUD

manifold to head, 1-3/4 inch, 148B spark ignition engine

7шт.

16

A30058

WASHER

flat, manifold stud, 148B spark ignition engine

4шт.

16

195-525

WASHER,3/8", SAE

flat, 3/8 x 13/16 x 1/16 inch 10 x 21 x 2 mm, 48B spark ignition engine

3шт.

17

131-903

NUT,3/8"-16

NUT hex, 3/8 inch NC Seez-Pruf, 148B spark ignition engine

7шт.

20

REF

INSTRUCTION

CARBURETOR ASSEMBLY See Fig. 2-48 CARBURETOR

1шт.

21

A29956

GASKET

carburetor to manifold CARBURETOR

1шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Carburetor Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Carburetor 5/16"

2шт.
