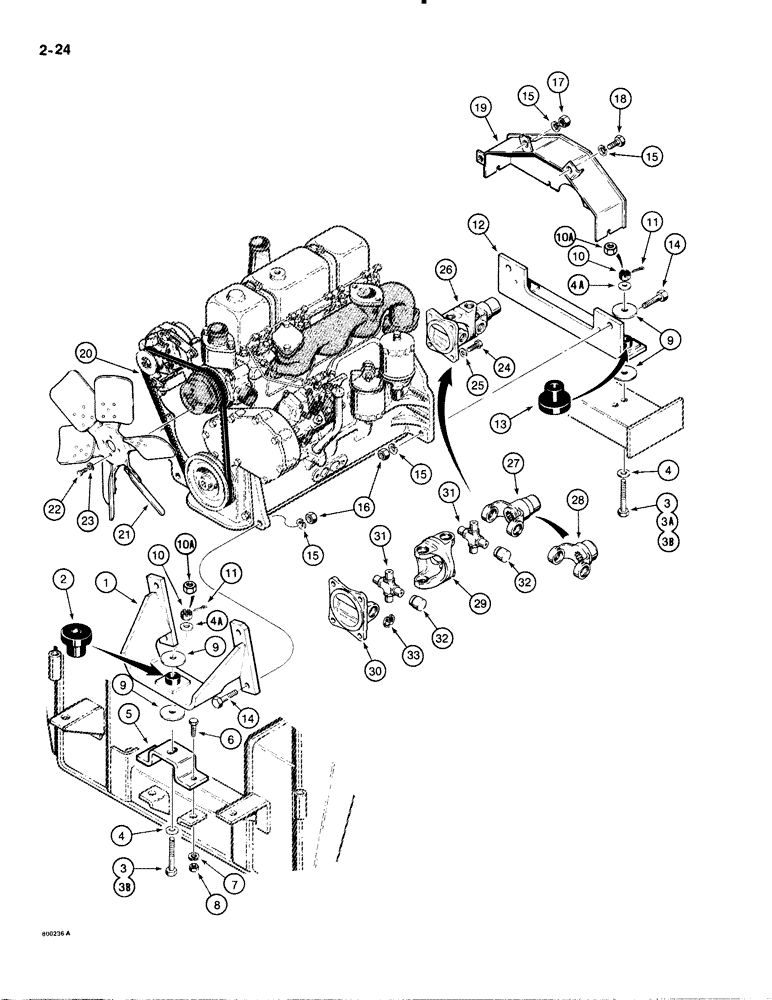

Запчасти Case IH 1835B (2-24) - ENGINE MOUNTING, FLYWHEEL GUARD, FAN, AND FAN BELT (02) - ENGINE

1

D63931

MOUNTING PARTS

MOUNT engine, rear, Includes: Ref. 2, 12 and 26

1шт.

2

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

BUSHING rubber mount, rear

1шт.

3

D64065

BOLT

hex head, 5/8" - 18 NC x 3-1/2", special, used with D63923 mount

3шт.

3a

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

hex head, 5/8" - 11 NC x 4", plated, used with D124064 mount

2шт.

3b

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5, Used with 131-64 nut

3шт.

4

195-541

WASHER,5/8", SAE

flat, 5/8", plated

3шт.

4a

195-541

WASHER,5/8", SAE

flat, 5/8", if used

3шт.

5

D90596

BRACKET

engine mounting, rear

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

9

D35009

WASHER

flat, special

6шт.

10

129-610

SLOTTED NUT,5/8"-18, G5

Used with D63923 mount 5/8"-18, G5

3шт.

10a

131-64

LOCK NUT,5/8"-11, GC

NUT hex, self locking, 5/8" - 11 NC, plated, used with D124064 mount

3шт.

11

132-311

COTTER PIN,5/32" x 1 1/4"

if used 5/32" x 1 1/4"

3шт.

12

D63923

BRACKET

MOUNT engine, front, used before PIN 9866541, Includes: Ref. 13

1шт.

12

D124064

MOUNTING PARTS

MOUNT engine, front, used on PIN 9866541 and after

1шт.

Ref #12A - 7 1/2" high 03/20/96

1шт.

Ref #12 - 5" high 03/20/96

1шт.

13

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

BUSHING rubber mount, front

2шт.

14

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

6шт.

15

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

16

129-107

NUT,5/8"-11, G5

6шт.

17

129-127

NUT,5/8"-18, G5

1шт.

18

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

1шт.

19

D64238

GUARD

flywheel

1шт.

20

A11444

BELT,0.53" W x 50.50" L

Fan and Alternator, Diesel Models 0.53" W x 50.50" L

1шт.

20

A38824

BELT

Fan and Alternator, Gasoline Models

1шт.

21

D68865

FAN

PUSHER FAN engine cooling, uses 3/4" long bolts, no longer available

1шт.

order A172885 fan and (4) 113-113 bolts

1шт.

21

A172885

FAN

PUSHER FAN engine cooling, uses 7/8" long bolts, the Case part number

1шт.

is stamped on fan blade for identification

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Used with D68865 fan

4шт.

22

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Used with A172885 fan Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

24

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

4шт.

25

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

special

4шт.

26

D64444

JOINT

UNIVERSAL JOINT diesel models, complete assembly not available

1шт.

order individual components

1шт.

26

D64445

JOINT

UNIVERSAL JOINT gasoline models, complete assembly not available, Includes: Ref. 27-30

1шт.

order individual components

1шт.

27

D70628

YOKE

pump end, D64445 universal joint, gasoline models

1шт.

28

D70625

YOKE

pump end, D64444 universal joint, diesel models

1шт.

29

D70626

YOKE

center

1шт.

30

D70624

YOKE

FLANGE engine end

1шт.

D70629

U-JOINT SPIDER

KIT universal, Includes: Ref. 31-33

2шт.

31

NSS

NOT SOLD SEPARAT

CROSS universal

1шт.

32

NSS

NOT SOLD SEPARAT

BEARING universal

4шт.

33

11256

SNAP RING

RETAINING RING bearing

4шт.
