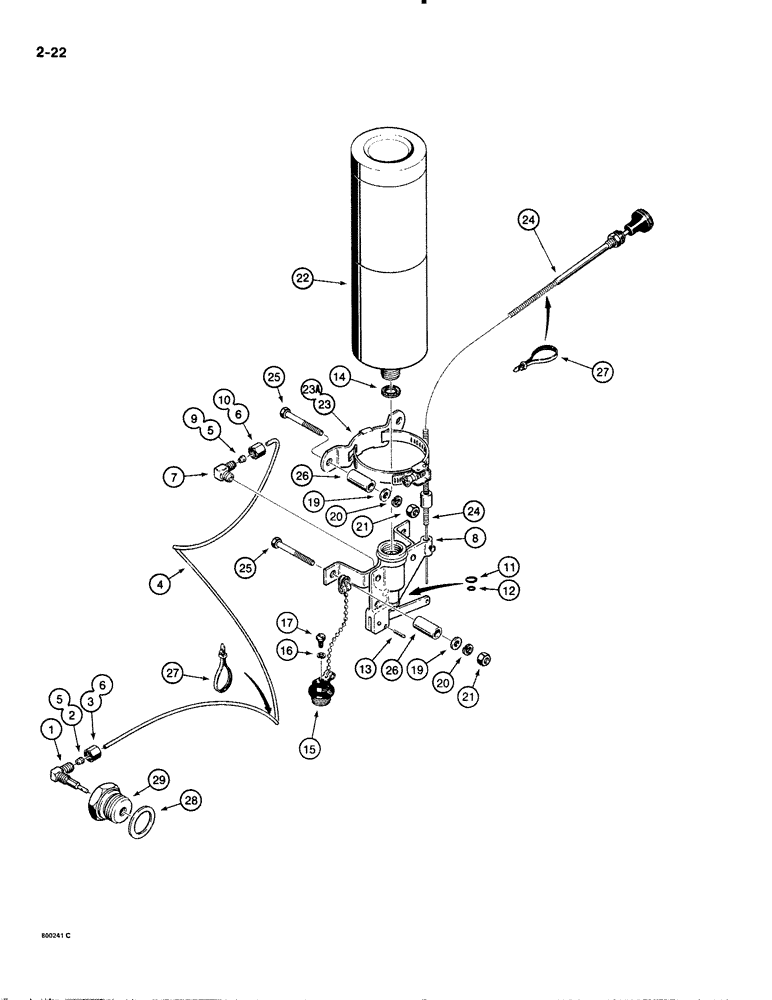

Запчасти Case IH 1835B (2-22) - COLD START SYSTEM (02) - ENGINE

D70782

KIT

cold start, machinery Ref. see Fig. 2 for ordering, Includes Ref. P/N D55946, 1-24

1шт.

D55946

JET

INJECTOR ASSEMBLY cold start, Includes: Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

INJECTOR cold start

1шт.

2

222-650

SLEEVE,1/8" Tube, Comp

1шт.

3

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

Sleeve 5/16"-24, 45º Fl, Comp

1шт.

D55947

TUBE

ASSEMBLY valve to injector, Includes: Ref.4-6

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE valve to injector, 60" 1524 mm long

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

2шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

Sleeve 5/16"-24, 45º Fl, Comp

2шт.

D55948

VALVE

ASSEMBLY cold start, Includes: Ref. 7-17

1шт.

7

NSS

NOT SOLD SEPARAT

ELBOW ASSEMBLY valve

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE actuator

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

1шт.

10

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

Sleeve 5/16"-24, 45º Fl, Comp

1шт.

11

A51274

O-RING,0.145" ID x 0.285" OD

internal plunger, top

1шт.

Part of Valve Kit, P/N D55951

1шт.

12

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

internal plunger, bottom

1шт.

Part of Valve Kit, P/N D55951

1шт.

13

135-313

GROOVED PIN,3/32" x 1/2"

Pin, Grooved, , drive 3/32" x 1/2"

1шт.

Part of Valve Kit, P/N D55951

1шт.

14

D74422

GASKET

SEAL, Serial Range: cylinder-valve

1шт.

Part of Valve Kit, P/N D55951

1шт.

15

N8826

PLUG

CHAIN valve, Includes plug

1шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

17

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

No. 10 - 24 NC x 1/2", plated

1шт.

18

RESERVED

1шт.

19

195-102

WASHER,1/4"

flat, , plated 1/4"

4шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

22

D55767

CYLINDER

cold start

1шт.

23

L35279

BRACKET

cylinder

1шт.

23a

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP cylinder, Includes hardware

1шт.

24

D88741

CABLE

cold start control

1шт.

25

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5, Replaces 3/4" long bolt that is included in cold start kit but not used on this model

4шт.

26

D76210

SPACER

cylinder clamp

4шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

2шт.

28

A20916

MANIFOLD GASKET

WASHER special

1шт.

29

L10283

PLUG

manifold

1шт.

D55951

REPAIR KIT

KIT - valve, Includes: Ref. 11, 12, 13 and 14

1шт.
