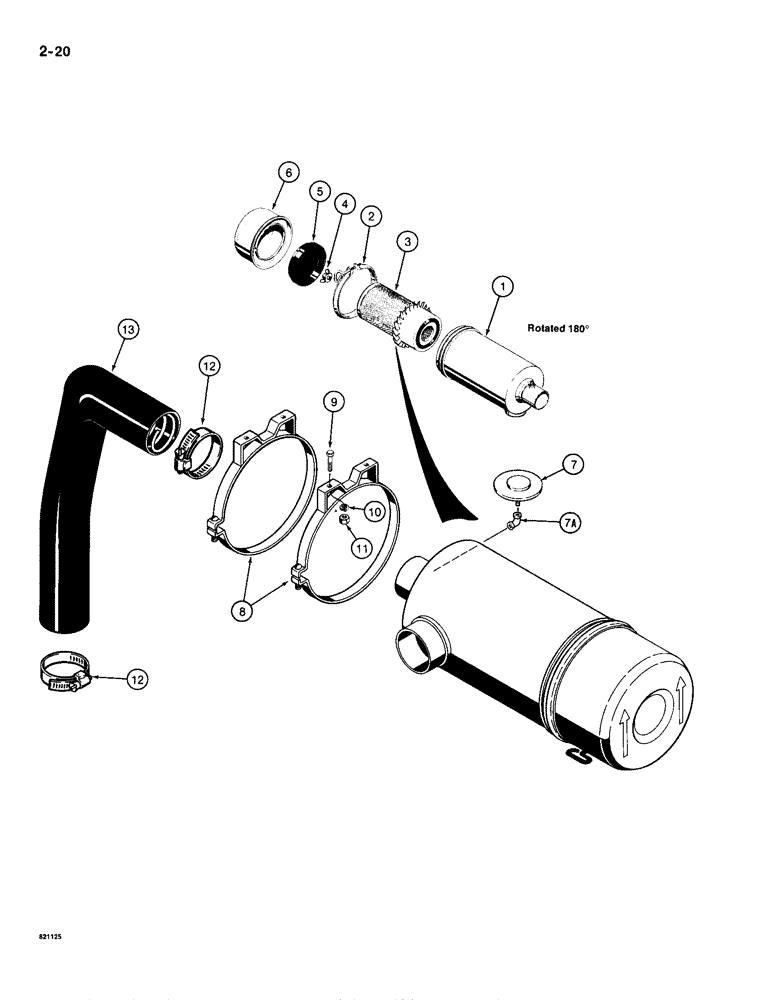

Запчасти Case IH 1835B (2-20) - AIR CLEANER, DIESEL MODELS (02) - ENGINE

D64003

CLEANER

AIR CLEANER ASSEMBLY dry type, Includes Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY air cleaner

1шт.

2

F84999

CLAMP,168.28mm

ASSEMBLY cup retaining

1шт.

Ref #2 - L30338 Screw and 25-225 Nut are the hardware for this clamp 03/20/96

1шт.

3

A42274

AIR FILTER

ELEMENT filter

1шт.

4

D78354

WING NUT

WING NUT element

1шт.

Ref #4 - D37936 Gasket for this screw & washer 03/20/96

1шт.

5

F22312

BAFFLE

air cleaner

1шт.

6

F91760

CUP

dust

1шт.

7

L103131

INDICATOR

air restriction

1шт.

7a

221-374

ELBOW,90 Degree, 1/8" NPT

90 degree, 1/8" NPT

1шт.

8

L11247

BAND

ASSEMBLY air cleaner, Includes hardware

2шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

12

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP air cleaner

2шт.

13

D84188

INTAKE AIR HOSE,2.25" ID x 13.40", SAE J20, SAE 20R4 CLASS D2

Cleaner 2.25" ID x 13.40", SAE J20, SAE 20R4 CLASS D2

1шт.
