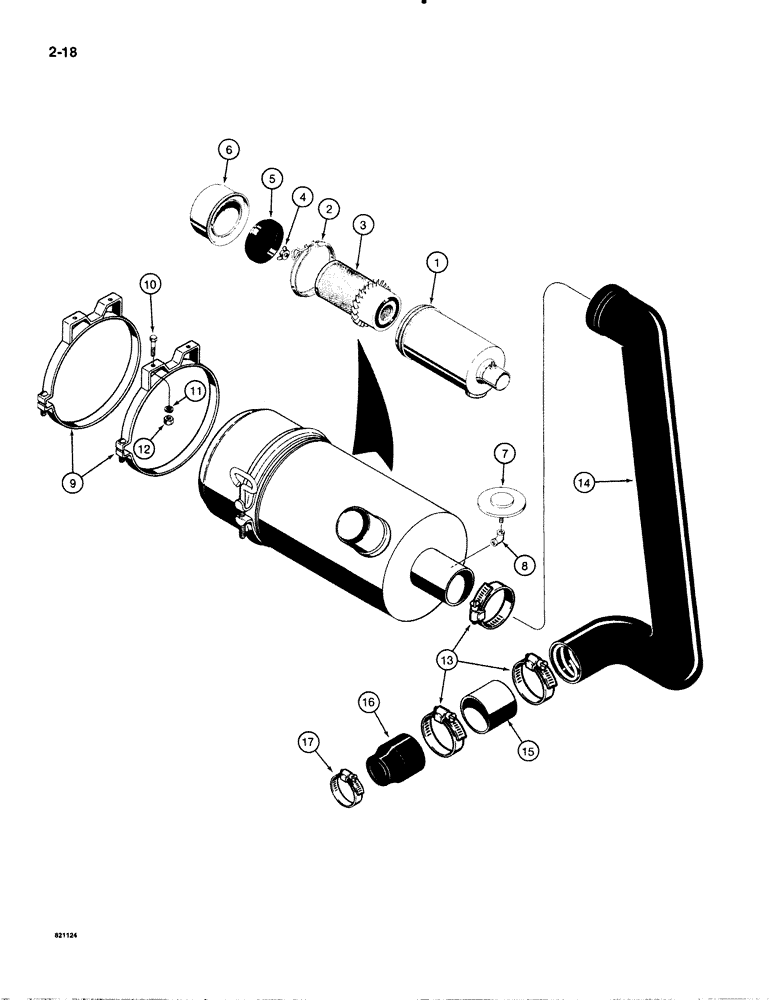

Запчасти Case IH 1835B (2-18) - AIR CLEANER, GASOLINE MODELS (02) - ENGINE

D64003

CLEANER

AIR CLEANER ASSEMBLY dry type, Includes Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY air cleaner

1шт.

2

F84999

CLAMP,168.28mm

ASSEMBLY cup retaining

1шт.

3

A42274

AIR FILTER

ELEMENT filter

1шт.

4

D78354

WING NUT

WING NUTelement

1шт.

5

F22312

BAFFLE

air cleaner

1шт.

6

F91760

CUP

dust

1шт.

7

L103131

INDICATOR

air restriction

1шт.

8

221-1374

ELBOW,90 Degree, 1/8" NPT

90 degree, 1/8" NPT

1шт.

9

L11247

BAND

ASSEMBLY air cleaner, Includes hardware

2шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

13

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP air cleaner, large

3шт.

14

D90848

INTAKE AIR HOSE,2.06" ID, 2.25" ID x 20.95", SAE J20 20R4 CLASS D2

2.06" ID, 2.25" ID x 20.95", SAE J20 20R4 CLASS D2

1шт.

15

D90858

SLEEVE

hose

1шт.

16

D49086

ADAPTER

ADAPTOR hose

1шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

air cleaner, small #28, 1.31/2.25 Type F Worm

1шт.
