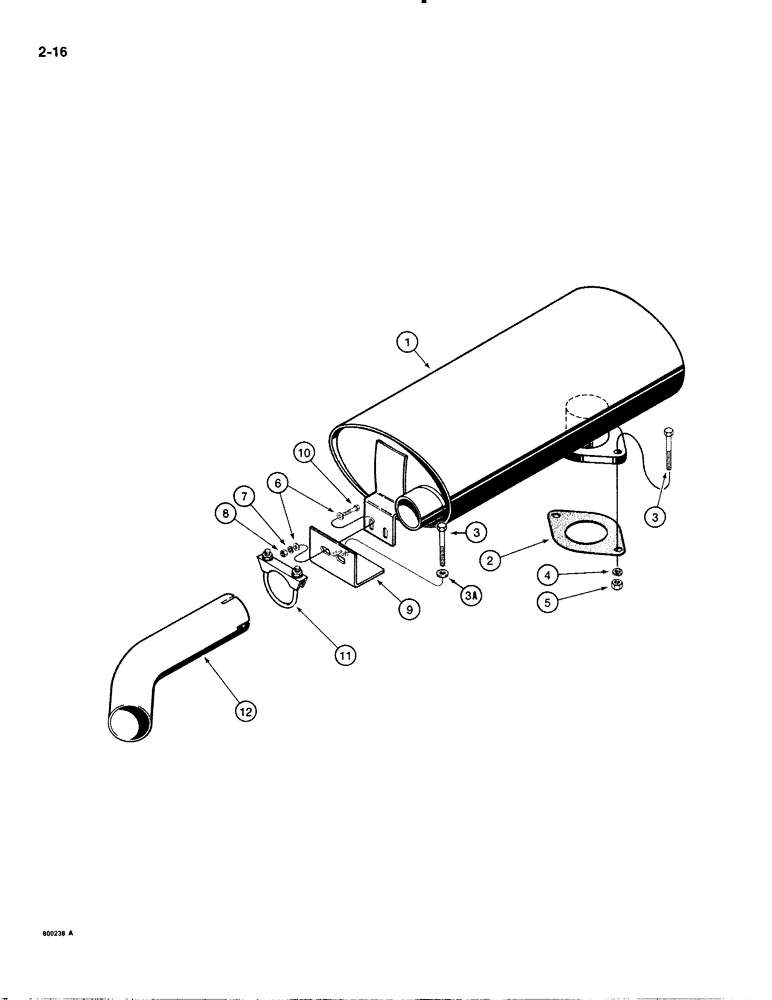

Запчасти Case IH 1835B (2-16) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

D88436

MUFFLER

exhaust, standard, if used

1шт.

1

D92598

MUFFLER

exhaust, wrapped, noise control, not shown, if used

1шт.

1

D91319

MUFFLER

exhaust, spark arresting, not shown, if used

1шт.

2

G46853

MANIFOLD GASKET

muffler

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

3a

195-525

WASHER,3/8", SAE

flat, 3/8", plated

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

195-103

WASHER,5/16"

flat, , plated 5/16"

4шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

9

D88435

BRACKET

muffler mounting

1шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

11

L73301

CLAMP,51mm ID

ASSEMBLY muffler, Includes hardware

1шт.

12

D91297

PIPE, EXHAUST SYSTEM

PIPE exhaust

1шт.
