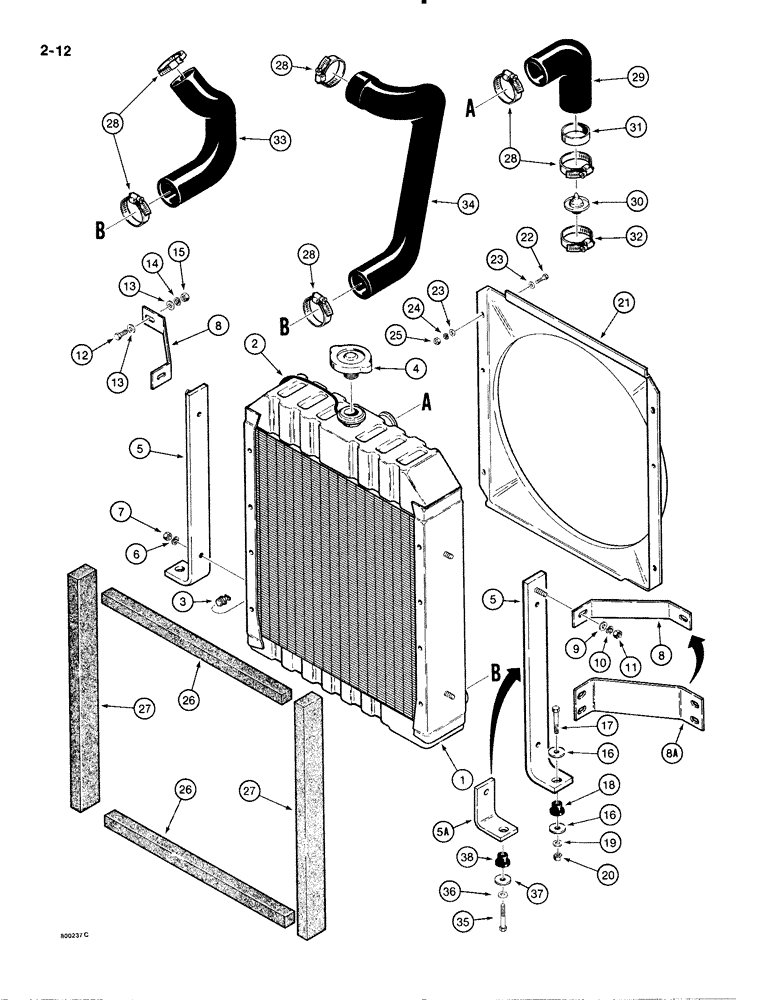

Запчасти Case IH 1835B (2-12) - RADIATOR, HOSES, AND SHROUD (02) - ENGINE

D83592

RADIATOR

ASSEMBLY cooling, Includes Ref. 1, 2, 22 and 23

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR cooling

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE overflow

1шт.

3

217-103

COCK, DRAIN

VALVE radiator drain

1шт.

4

F23120

CAP

radiator

1шт.

5

D84385

MOUNTING PARTS

SUPPORT radiator, long, no longer available, order D123408 support

2шт.

5a

D123408

SUPPORT

radiator, short, Replaces: D84385 support

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2-4шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2-4шт.

8

D84386

BRACKET

radiator support, no longer available, order D123368 bracket

2шт.

8a

D123368

BRACKET

radiator support, Replaces: D84386 bracket

2шт.

9

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

195-525

WASHER,3/8", SAE

flat, 3/8", plated

4шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

16

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

special, used with D84385 long radiator support

4шт.

17

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Used with D84385 long radiator support Hex, 3/8"-16 x 2", G5

2шт.

18

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT radiator, rubber, used with D84385 long radiator support

2шт.

19

195-525

WASHER,3/8", SAE

flat, 3/8", plated, used with D84385 long radiator support

2шт.

20

131-52

NUT,3/8"-16, GC

NUT hex, self locking, 3/8" - 16 NC, plated, used with D84385 long

1шт.

radiator support

2шт.

21

D81056

SHROUD ASSY.

SHROUD radiator

1шт.

22

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

23

195-518

WASHER,1/4", SAE

flat, 1/4", plated

12шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

26

D84413

BAFFLE foam, radiator, upper and lower, 1" 25 mm x 20" 508 mm, cut from D59897 bulk, see below

2шт.

27

D87611

BAFFLE foam, radiator, sides, 2" 51 mm x 23" 584 mm, cut from D598987 bulk, see below

2шт.

28

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

29

D84373

HOSE,2.00" ID x 5.30", SAE J20, SAE 20R4 CLASS D2

RADIATOR HOSE, , Upper 2.00" ID x 5.30", SAE J20, SAE 20R4 CLASS D2

1шт.

30

A57641

THERMOSTAT

gas models

1шт.

31

D53507

SUPPORT

hose clamp, gas models

1шт.

32

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP hose, gas models

1шт.

33

D90769

RADIATOR HOSE,44.40 mm ID x 162.60 mm, SAE J20, SAE 20 R4 CLASS D2

Lower (Gas Models) 44.40 mm ID x 162.60 mm, SAE J20, SAE 20 R4 CLASS D2

1шт.

34

D88561

RADIATOR HOSE,1.75" ID, 2.00" ID x 13.55", SAE J20 20R4 CLASS D2

Lower (Diesel Models) 1.75" ID, 2.00" ID x 13.55", SAE J20 20R4 CLASS D2

1шт.

35

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Used with D123408 short radiator support 36 195-25 WASHER flat Hex, 3/8"-16 x 1 3/4", G5

2шт.

37

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

special, hardened, used with D123408 short radiator support

4шт.

38

D75755

ISOLATOR

MOUNT radiator, rubber, used with D123408 short radiator support

2шт.

39

D59897

PADDING

BAFFLE bulk pad, 54" 1372 mm x 36" 914 mm x 1" 25 mm

1шт.
