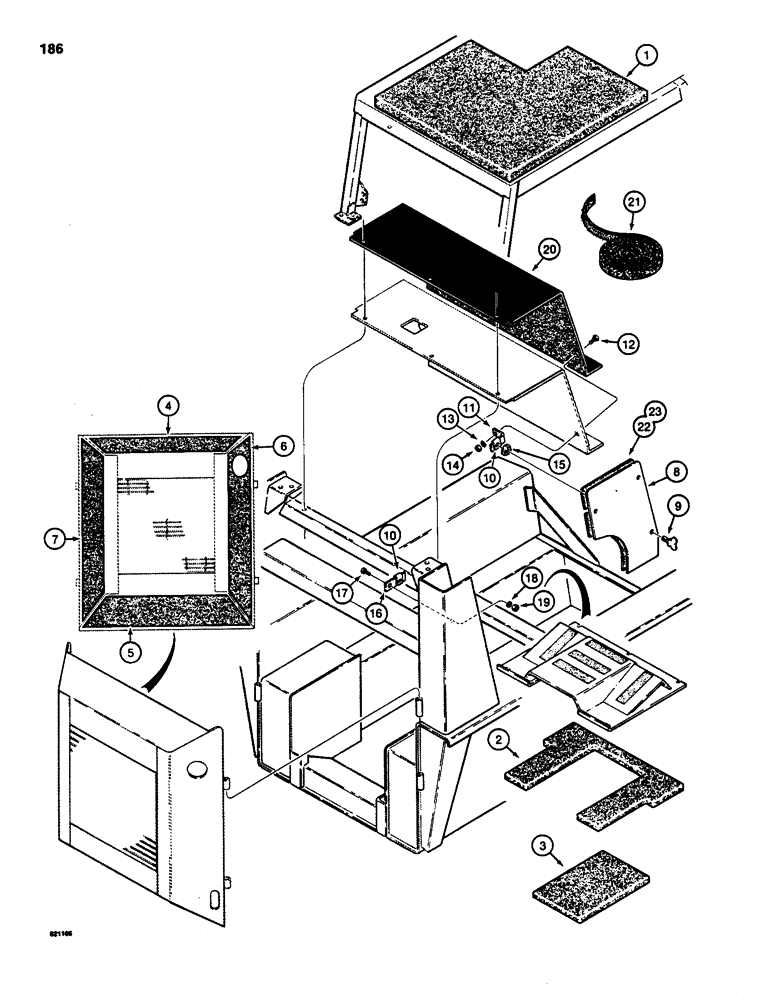

Запчасти Case IH 1835 (186) - NOISE CONTROL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
4
REF
INSTRUCTION
PAD rear door, upper, 33-1/4 inch (843 mm) x 6 inch (152 mm)
1шт.
5
REF
INSTRUCTION
PAD rear door, lower, 35-5/16 inch (897 mm) x 9 inch (229 mm), cut from P/N D91573, see below
1шт.
6
REF
INSTRUCTION
PAD rear door, R.H. side, 37 inch (940 mm) x 8-1/2 inch (216 mm), cut from P/N D91573, see below
1шт.
7
REF
INSTRUCTION
PAD rear door, L.H. side, 37 inch (940 mm) x 8-1/2 inch (216 mm), cut from P/N D91573, see below
1шт.
12
111-202
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
4шт.
13
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
20
D94136
PAD
shield, heat, Includes: P/N 321-2996 battery decal and P/N 321-4197 instruction decal
1шт.
D91573
FOAM
PAD bulk, with adhesive, 54 inch (1372 mm) x 36 inch (914 mm) x 1 inch (25 mm), use for Ref. 4 thru 7
1шт.
345-44
ADHESIVE
spray can, 23 fluid ounces, for attaching foam pads to metal surfaces
1шт.
