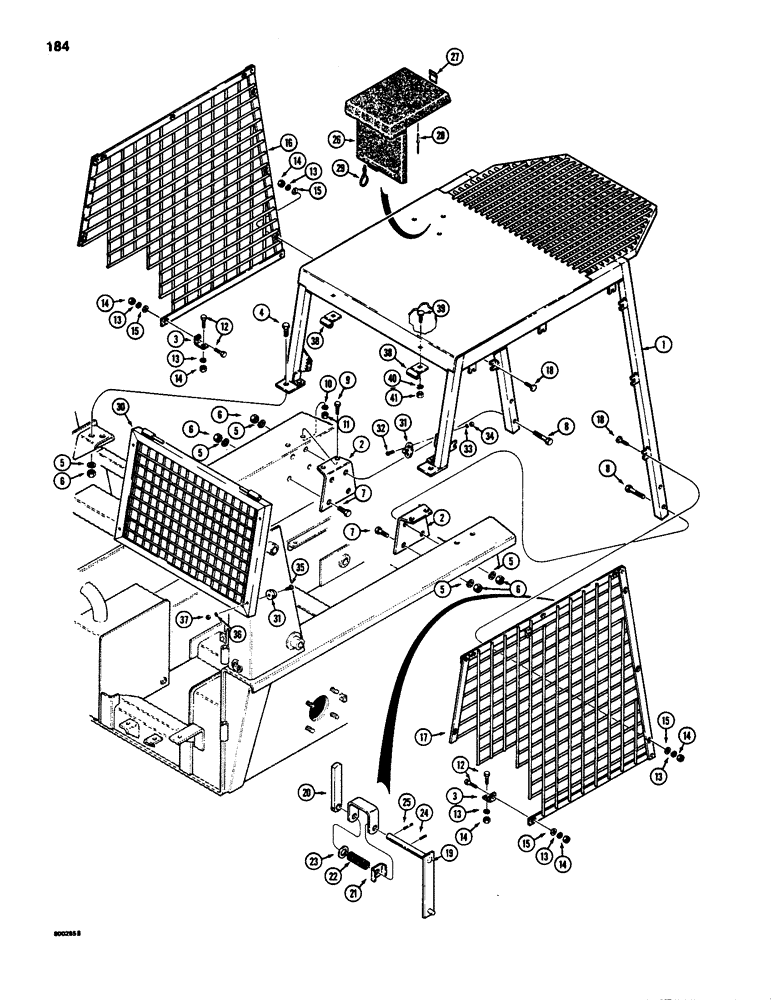

Запчасти Case IH 1835 (184) - ROPS CONOPY AND SIDE SCREENS (09) - CHASSIS/ATTACHMENTS

1

D100831

ROPE

CANOPY ROPS

1шт.

2

D94414

BRACKET

SUPPORT ROPS, fender

2шт.

3

F42810

BRACKET

side screen, lower

2шт.

4

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

8

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

4шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

17шт.

14

9635082

NUT,5/16" - 18, Gr 5

17шт.

15

195-521

WASHER,5/16", SAE

flat, plate, 5/16 inch

15шт.

16

D90013

SCREEN

side, L.H.

1шт.

17

D90012

SCREEN

side, R.H.

1шт.

18

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT hex, head, plated, 5/16 inch - 18 NC x 1 inch

13шт.

19

D80018

ARM

support, strut

1шт.

20

D89708

LEVER

support, strut

1шт.

21

D80803

BRACKET

support, strut

1шт.

22

D79941

SPRING

support, strut

1шт.

23

195-2028

WASHER,.391" x 5/8" x .065"

flat, 3/8 inch

1шт.

24

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

25

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

26

R38893

CASE

BOX manual, operators, Includes: Ref. 27

1шт.

27

N7120

LATCH

box, operators manual

1шт.

28

151-522

RIVET,Pop, 3/16" x .575"

pop, operators manual box

3шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

30

D91407

GUARD

SCREEN rear, guard

1шт.

31

F93104

HOLDER

guard

2шт.

32

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

machine, flat head, plated, NO. 10 - 24 NC x 5/8 inch

4шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER lock, 5/16 inch

4шт.

34

129-17

NUT,Hex, #10 - 24

NUT hex, plated, Nn. 10 - 24 NC

4шт.

35

173-207

X

SCREW machine, round head, plated, 1/4 inch - 20 NC s 5/8 inch

2шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

37

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

38

F93322

HINGE

screen, rear, guard

2шт.

39

111-520

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

BOLT carriage, plated, 1/2 inch - 13 NC x 1-1/4 inch

2шт.

40

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

41

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
