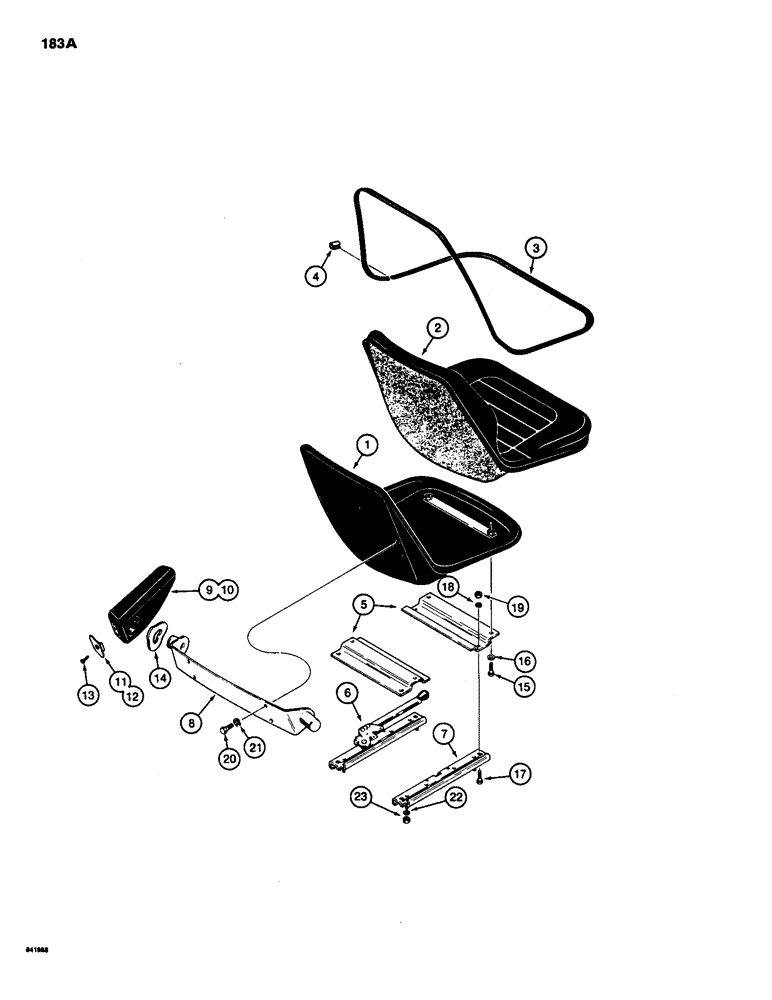

Запчасти Case IH 1835 (183A) - DELUXE OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS

D82233

SEAT

ASSEMBLY, deluxe, with armrests, Includes: Ref. 1 thru 21

1шт.

1

N6672

SEAT

SHELL seat

1шт.

2

N6673

CUSHION ASSY.

CUSHION seat

1шт.

3

N9034

SEAT

RETAINER strip, Serial Range: cushion-shell

1шт.

4

N6674

CLIP

seat

1шт.

5

N6675

BRACKET

slide, mounting

2шт.

6

S114284

SLIDE

seat adjuster, with handle

1шт.

7

N6676

RAIL

SLIDE seat, adjuster, without handle

1шт.

8

N6677

BRACKET

armrest

1шт.

9

A45488

ARMREST

L.H.

1шт.

10

A45489

ARMREST

R.H.

1шт.

11

A45583

PLATE

cover, L.H.

1шт.

12

A45584

COVER

PLATE cover, R.H.

1шт.

13

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

14

A47352

WASHER

wave, special

2шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

16

195-103

WASHER,5/16"

flat, plated, 5/16 inch

4шт.

17

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

19

9635082

NUT,5/16" - 18, Gr 5

4шт.

20

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, head, plated, 3/8 inch - 16 NC x 3/4 inch

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch - 18 NC

4шт.
