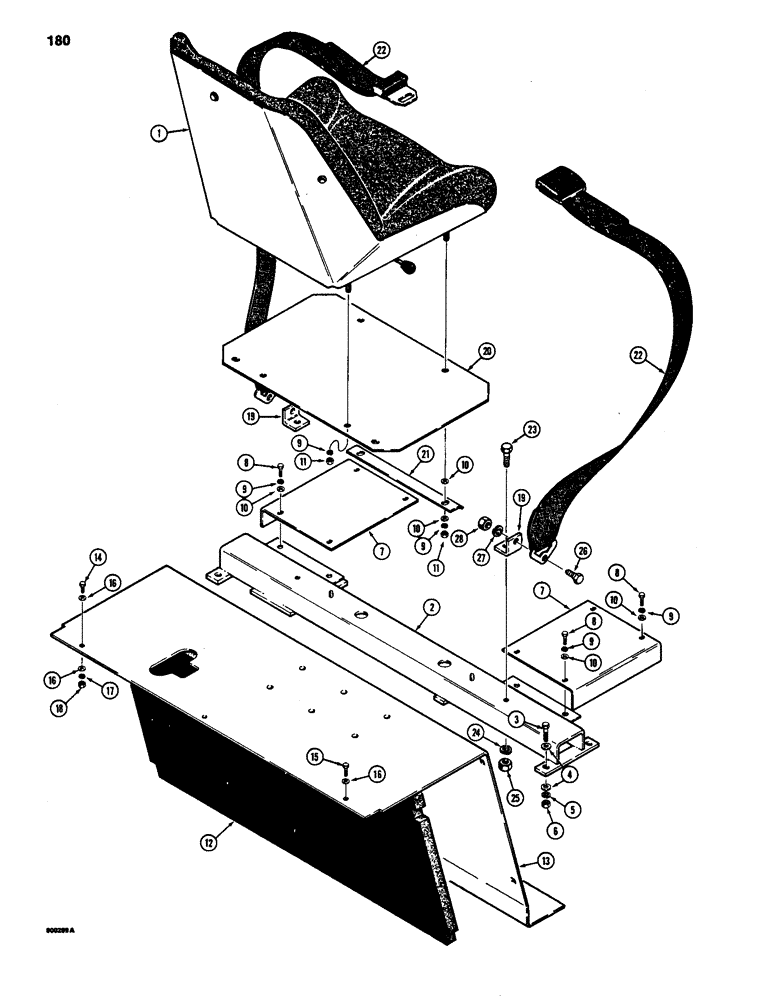

Запчасти Case IH 1835 (180) - SEAT, SEAT BELT, AND HEAT SHIELD (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSY, operators, Fig. 183

1шт.

2

D87450

SPARE PART Seat

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

4

195-25

WASHER,3/8"

8шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

Hex

4шт.

7

D63873

PANEL

Cover

2шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

9

92-5

LOCK WASHER,5/16"

12шт.

10

195-21

WASHER,5/16"

Flat

12шт.

11

9635082

NUT,5/16" - 18, Gr 5

Hex

4шт.

12

D94009

PAD

Insulation

1шт.

13

D93381

KIT

SHIELD, heat

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

15

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

16

195-21

WASHER,5/16"

Flat

6шт.

17

92-5

LOCK WASHER,5/16"

3шт.

18

9635082

NUT,5/16" - 18, Gr 5

Hex

3шт.

19

D54655

BRACKET

ANGLE, seat belt

2шт.

20

D59768

PLATE

Seat

1шт.

21

D72913

CLIP

BAR seat

1шт.

22

D85816

SAFETY BELT

BELT, 3 inch (76 mm), if used

1шт.

22

D75997

SAFETY BELT ,1.80" W

If used

1шт.

23

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

24

92-7

LOCK WASHER,7/16"

2шт.

25

25-107

NUT,7/16"-14, G5

Hex, 7/16 inch-16 NC

2шт.

26

F42236

STEP BOLT

Special

2шт.

27

192-22

LOCK WASHER,7/16"

2шт.

28

425-117

NUT,7/16"-20, G5

2шт.
