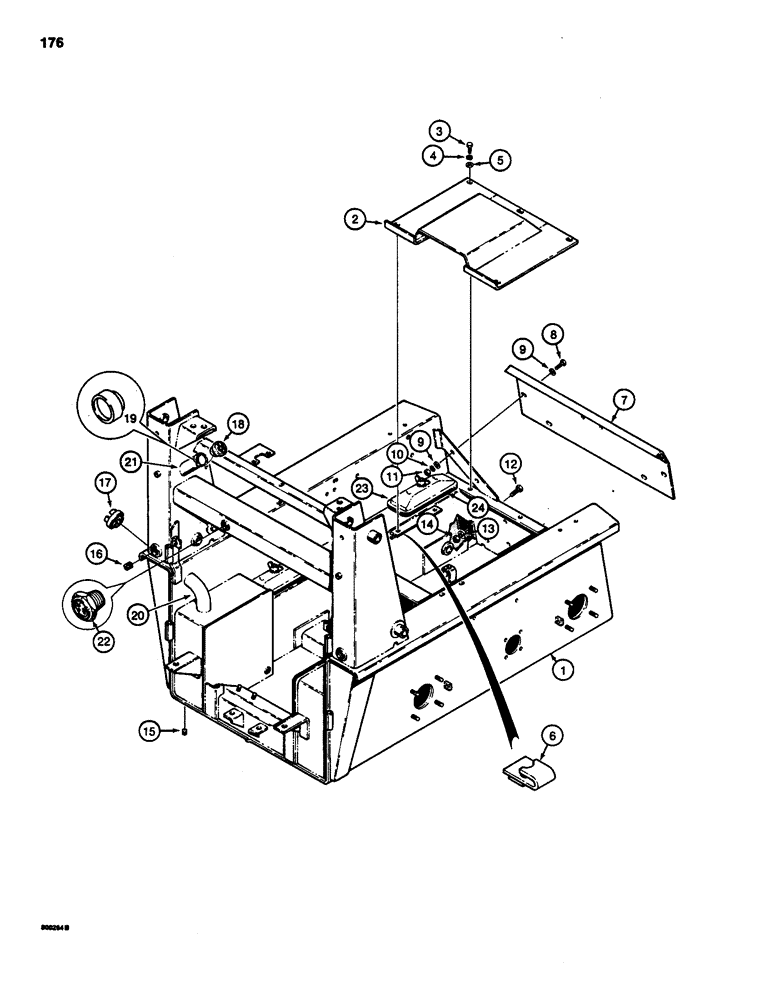

Запчасти Case IH 1835 (176) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

D83775

FRAME

CHASSIS main

1шт.

2

D91448

PLATE

floor

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

4

92-5

LOCK WASHER,5/16"

5шт.

5

195-21

WASHER,5/16"

- flat, 5/16"

5шт.

6

131-636

SPRING NUT,J, Ret, 5/16"-18

special, 5/16 inch

2шт.

7

D75157

GUARD

foot

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

195-525

WASHER,3/8", SAE

flat, 3/8 inch

8шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

12

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

13

T42588

WASHER

seal, 1/2 inch

4шт.

14

25-108

NUT,1/2"-13, G5

hex, 1/2 inch - 13 NC

4шт.

15

221-1034

PLUG,Sq Soc, 1/2" MPTF

square, socket, 1/2 inch, NPT

5шт.

16

221-1037

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG square, socket, 1- 1/4 inch, NPT

2шт.

17

D93757

CAP

fuel, gas and diesel

1шт.

18

D93981

FILLER CAP

CAP tube, hydraulic, oil, filler, tube

1шт.

19

N8796

PLUG

BREATHER hydraulic, oil, fill, tube

1шт.

20

D91035

NECK FILLER

TUBE weld-on, fuel, filler

1шт.

21

D93982

FILLER

TUBE weld-on, hydraulic, oil, filler

1шт.

22

D63875

PLUG

GAUGE sight

1шт.

23

D86162

COVER

chain, access

4шт.

24

D90172

GASKET

chain, access, cover

4шт.
