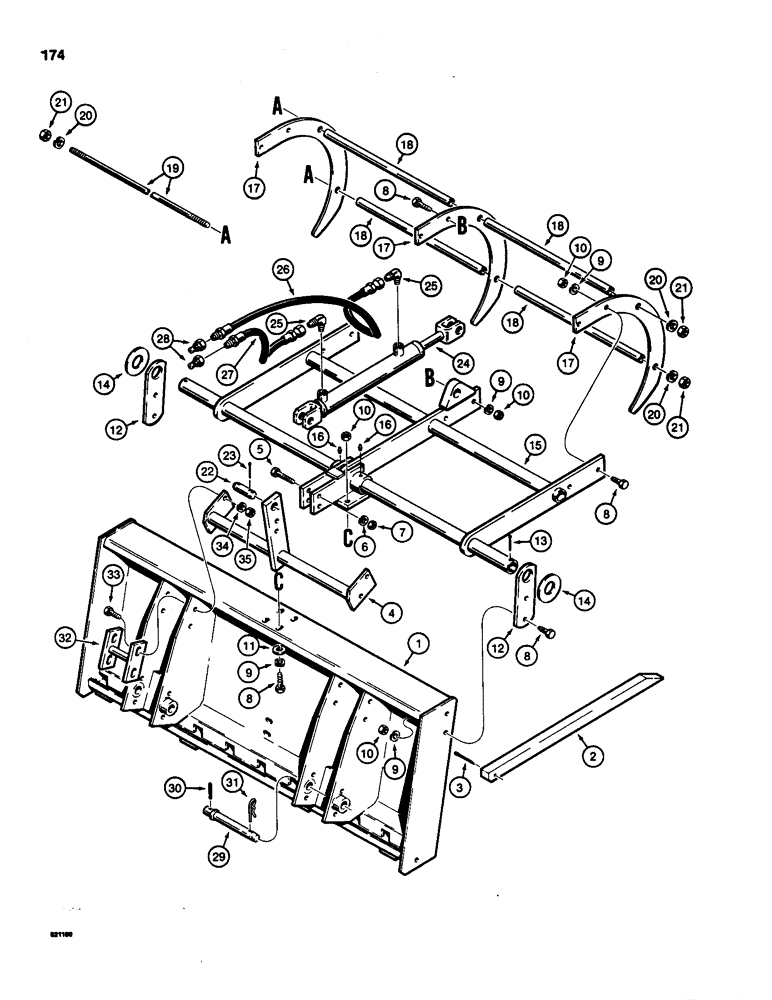

Запчасти Case IH 1835 (174) - MANURE FORK, GRAPPLE ATTACHMENT, LOADER ATTACHMENT BAR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

D128061

FORK

FRAME fork, manure

1шт.

2

D64911

TINE

fork, manure

11шт.

3

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Manure fork 1/4" x 2"

11шт.

4

D88370

ANCHOR

BRACKET cylinder, grapple attachment

1шт.

5

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

hex, head, plated, 1/2 inch - 13 NC x 2-1/2 inch, grapple attachment

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Grapple attachment 1/2"

2шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

Grapple attachment 1/2"-13, G5

2шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Grapple attachment Hex, 1/2"-13 x 1 1/2", G5, Full Thd

14шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Grapple attachment 1/2"

14шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

Grapple attachment 1/2"-13, G5

14шт.

11

195-106

WASHER,1/2"

flat, plated, 1/2 inch, grapple attachment

4шт.

12

D64908

BRACE

pivot, grapple attachment

2шт.

13

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), , grapple attachment 1/4" x 2 1/2"

2шт.

14

195-116

WASHER,1 5/8"

flat, plated 1-5/8 inch, grapple attachment

2шт.

15

D88375

FRAME

grapple attachment

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 inch, NPT

2шт.

17

D64909

FORK

grapple attachment

1шт.

18

D64907

BUSHING

SPACER fork, grapple attachment

4шт.

19

D64912

ROD

tie, fork, grapple attachment

2шт.

20

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Grapple attachment 3/4"

4шт.

21

129-108

NUT,3/4"-10, G5

Grapple attachment 3/4"-10, G5

4шт.

22

D61036

PIN

cylinder, mounting, grapple attachment

2шт.

23

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), , grapple attachment 5/32" x 1 1/2"

4шт.

24

D61075

CYLINDER

Fig. 162, grapple attachment

1шт.

25

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

90 degree, grapple attachment

2шт.

26

D66596

HOSE

rod end of cylinder, 66 inch (1676 mm) long, grapple attachment

1шт.

27

D66597

HOSE

closed end of cylinder, 56 inch (1422 mm) long, grapple attachment

1шт.

28

D60708

COUPLING, BREAK AWAY

COUPLING quick disconnect, male,, grapple attachment

2шт.

29

D132172

PIN

loader attachment bar mounting

2шт.

30

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, , Loader attachment bar mounting 1/4" x 2", Slotted

2шт.

31

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN hair, pin retaining, loader attachment bar mounting

2шт.

32

D61308

PIN

BRACKET upper, manure fork frame, loader attachment bar mounting

2шт.

33

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Loader attachment bar mounting Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Loader attachment bar mounting 1/2"

8шт.

35

129-105

NUT,Hex, 1/2" - 13, Gr 5

Loader attachment bar mounting 1/2"-13, G5

8шт.
