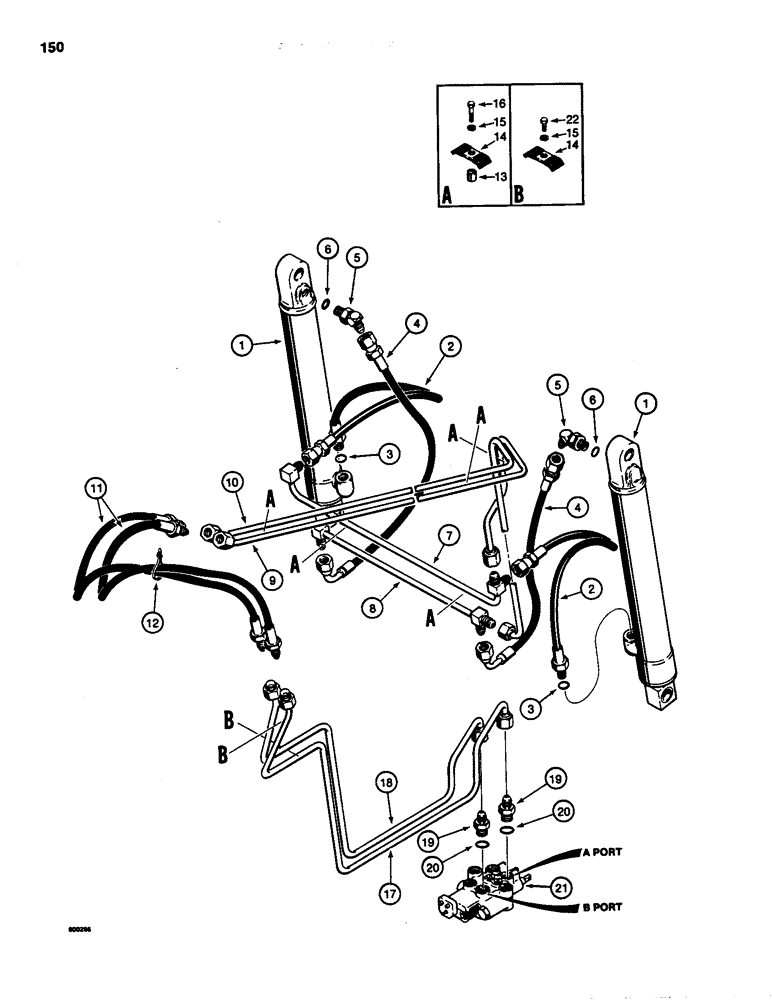

Запчасти Case IH 1835 (150) - LOADER BUCKT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER bucket, tilt, Fig. 160

2шт.

2

D61499

HOSE

hydraulic, bucket, cylinder, rod end, 18 inch (457 mm) long, Includes: Ref. 3

2шт.

4

D61500

HOSE

hyrdaulic, bucket, cylinder, closed end, 22 inch (559 mm) long

2шт.

5

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

adjustable, male, 45 degree, Incl. Ref 6

2шт.

7

D61506

TUBE

bucket, crossover, rod end

1шт.

8

D61508

TUBE

bucket, crossover, closed end

1шт.

9

D61495

TUBE

outer, bucket on lift arm

1шт.

10

D61497

TUBE

inner, bucket, on lift arm

1шт.

11

D61484

HOSE

hydraulic, bucket 29 inch (737 mm) long

2шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon 15 inch

1шт.

13

D33551

BUSHING

SPACER tube

5шт.

14

D33316

CLAMP

tube

7шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

lock, 5/16 inch

7шт.

16

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, head, 5/16 inch - 18 NC x 1-1/4 inch

5шт.

17

D90193

HYD TUBE,0.5" OD x 32.06, 23" L

TUBE front, to valve

1шт.

18

D90262

HYD TUBE,0.5" OD x 29.11, 23" L

TUBE rear, to valve

1шт.

19

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 19 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

21

REF

INSTRUCTION

VALVE hydraulic, 2 spool, Fig. 144

1шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
