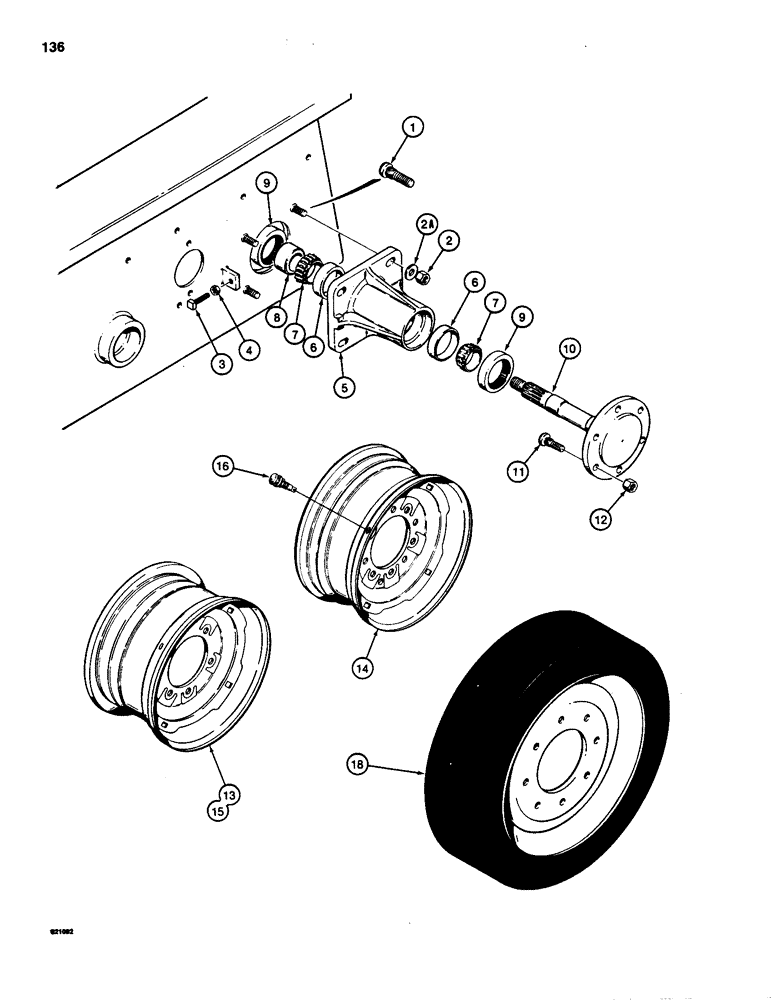

Запчасти Case IH 1835 (136) - AXLES AND WHEELS (06) - POWER TRAIN

1

D79943

BOLT

special, press-in

16шт.

2

131-915

FLANGE NUT,Flg, 1/2"-20, G5

hex, self-locking, 1/2 inch - 20 NF

16шт.

2a

D73296

WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk

special

16шт.

3

85-636

SET SCREW,Sq Hd, 3/8"-16 x 2 1/4"

SCREW set, square head, 3/8 inch - 16 NC x 2-1/4 inch

3шт.

4

25-106

NUT,3/8"-16, G5

hex, self-locking, 3/8 inch - 16 NC

3шт.

D90258

HUB

ASSEMBLY, axle, Includes: Ref. 5 and 6

4шт.

5

NSS

NOT SOLD SEPARAT

HUB axle

1шт.

6

D53762

BEARING CUP,2.892" OD x 0.62"

CUP bearing, race

2шт.

7

D53766

TAPERED BEARING,1.7812" ID x 0.78"

BEARING cone

8шт.

8

D58925

SPACER

axle

4шт.

9

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

oil

8шт.

D59095

AXLE

AXLE ASSEMBLY, axle and bolts, Includes: Ref. 10 and 11

4шт.

10

NSS

NOT SOLD SEPARAT

AXLE wheel

1шт.

11

D91709

WHEEL BOLT

BOLT special, wheel

6шт.

12

F23214

WHEEL NUT

special, wheel

24шт.

13

T40663

WHEEL

RIM wheel, used with 7.00 inch x 15 inch tire

4шт.

14

T40839

WHEEL

RIM wheel, used with 10 inch x 16.5 inch flotation tire

4шт.

15

G57007

WHEEL

RIM wheel, offset, used with 7.00 inch x 15 inch tire

4шт.

16

D48692

VALVE

STEM wheel

4шт.

17

D55063

CHAIN (AG)

CHAIN tire, for use with Ref. 19 or 20, not shown

4шт.

18

REF

INSTRUCTION

TIRE solid rubber, 7.00 inch x 15 inch, includes wheel, machinery item, see Fig. 2 for ordering

4шт.

19

REF

INSTRUCTION

TIRE 6 ply, nylon, 7.00 inch x 15 inch, not shown, machinery item, see Fig. 2 for ordering

4шт.

20

REF

INSTRUCTION

TIRE 6 ply steel cap, 7.00 inch x 15 inch not shown, machinery item, see Fig. 2 for ordering

4шт.

21

REF

INSTRUCTION

TIRE, 6 ply, flotation, 10 inch x 16.5 inch, not shown, machinery item, see Fig. 2 for ordering

4шт.

P/N B93176 Wheel Kit consists of: 2 PCS Ref. 6 Cup, Ref. 7 Cone and Ref. 9 Seal. 1 Kit per wheel.

1шт.
