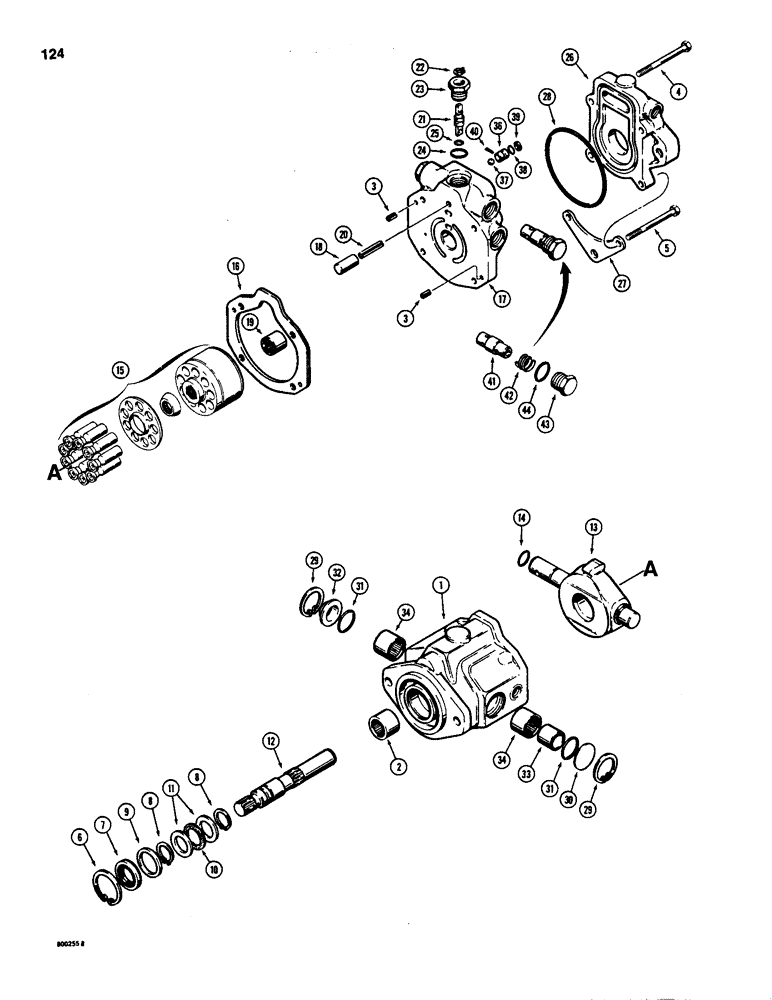

Запчасти Case IH 1835 (124) - N7715 VARIABLE DISPLACEMENT PUMP (06) - POWER TRAIN

NR7715

REMAN-HYD PUMP

PUMP ASSEMBLY piston, variable displacement, left-hand drive, remanufactured

1шт.

Component parts listed in this figure do not apply to the remanufactured assembly.

1шт.

NC7715

CORE-HYDRAULIC PUMP

RETURN NUMBER

1шт.

Use this P/N NC7715 to return pump core for credit when using a remanufactured assembly.

1шт.

N7715

PUMP

ASSEMBLY piston, new, variable displacement, left-hand drive, Cessna No. 70442DCU, Includes: Ref. 1, 4 thru 16 and P/N 66361

1шт.

1

D73658

HOUSING

front, Includes: Ref. 2 and 3

1шт.

2

F60368

NEEDLE BEARING

BEARING housing

1шт.

3

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

4

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

5

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

hex, head, 3/8 inch - 16 NC x 3-1/2 inch

2шт.

6

D41419

RING

retaining shaft

1шт.

Part of repair kit P/N N6615.

1шт.

7

D73667

SEAL,28.57mm ID x 50.98mm OD x 6.35mm Thk

shaft

1шт.

8

F62235

SNAP RING,#112, Ext

Ring, Snap, , washer #112, Ext

2шт.

Part of repair kit P/N N6615.

1шт.

9

D66330

WASHER

RING backup, seal

1шт.

10

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING thrust, shaft

1шт.

11

A52205

RACE,28.63mm ID x 44.2mm OD x 2.41mm Thk

thrust, shaft

2шт.

12

N6624

SHAFT

drive

1шт.

13

D77394

PLATE

swash, left-hand

1шт.

14

D73669

O-RING

O-RING swash plate, left-hand

1шт.

Part of repair kit P/N N6615.

1шт.

15

N9943

PACKAGE

PISTON ASSEMBLY, pump

1шт.

16

N7804

GASKET

housing

1шт.

Part of repair kit P/N N6615.

1шт.

D66361

PLATE

ASSEMBLY, backing, Includes: Ref. 17 thru 20 and P/N D66362

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE backing

1шт.

18

NSS

NOT SOLD SEPARAT

STOP cam

1шт.

19

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING shaft

1шт.

20

138-174

LOCK PIN,3/8" x 1 1/2", Slotted

PIN, 3/8" x 1 1/2", Slotted

1шт.

D66362

VALVE

tow, Includes: Ref. 21 thru 35, 41, 42, and P/N N6623

1шт.

21

NSS

NOT SOLD SEPARAT

SEPARATOR relief, valve

1шт.

22

G46146

SNAP RING,#37, Ext

Ring, Snap, , separator #37, Ext

1шт.

Part of repair kit P/N N6615.

1шт.

23

NSS

NOT SOLD SEPARAT

PLUG separator

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Large

1шт.

Part of repair kit P/N N6615.

1шт.

25

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

small

1шт.

Part of repair kit P/N N6615.

1шт.

26

N6530

ADAPTER

HOUSING adapter

1шт.

27

D66364

SUPPORT

BRACKET support

1шт.

28

D63347

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

housing

1шт.

Part of repair kit P/N N6615.

1шт.

29

NLS

NO LONGER SERVICED

Ring, Snap, , sleeve 1.625", Int, #162

2шт.

Part of repair kit P/N N6615.

1шт.

30

D66359

COVER

trunnion

1шт.

31

A62193

O-RING,1.424" ID x 1.63" OD

bearing

2шт.

Part of repair kit P/N N6615.

1шт.

32

D66354

SLEEVE

cover

1шт.

33

D66352

BUSHING

RACE inner

1шт.

34

A14858

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 19.05mm W

BEARING needle, pump

2шт.

35

D61966

VALVE

check, not shown assembled, Includes: Ref: 36 Thru 40

2шт.

36

NSS

NOT SOLD SEPARAT

BODY check

1шт.

37

211-308

BALL steel, 9/32 inch (7 mm) diameter

1шт.

38

D61967

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

body

1шт.

Part of repair kit P/N N6615.

1шт.

39

D54861

BACK-UP RING

WASHER special

1шт.

Part of repair kit P/N N6615.

1шт.

40

138-54

LOCK PIN,1/8" x 9/16", Slotted

PIN, 1/8" x 9/16", Slotted

1шт.

41

N6621

VALVE

relief, pump

2шт.

42

N6629

SPRING

relief, valve

2шт.

N6623

PLUG ASSEMBLY, relief, valve, Includes: Ref. 43 and 44

2шт.

43

NSS

NOT SOLD SEPARAT

PLUG relief, valve

1шт.

44

R30989

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

plug

1шт.

Part of repair kit P/N N6615.

1шт.

N6615

KIT

repair, Includes: Refs. 6, 8, 14, 16, 22, 24, 25, 28, 29, 31, 38, 39 and 44

1шт.
