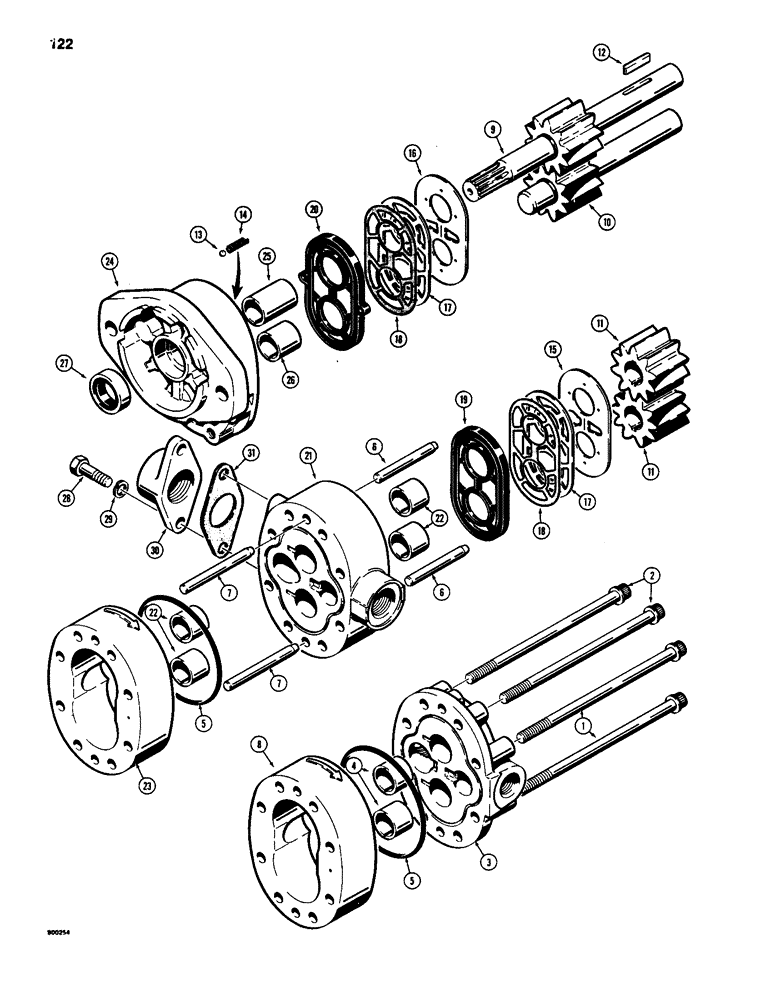

Запчасти Case IH 1835 (122) - N6612 DUAL PUMP (06) - POWER TRAIN

NR6612

REMAN-HYD PUMP

PUMP ASSEMBLY, hydraulic, remanufactured

1шт.

Component parts listed in this figure do not apply to the remanufactured assembly.

1шт.

NC6612

CORE-HYDRAULIC PUMP

RETURN NUMBER

1шт.

Use this part number to return pump core for credit when using a remanufactured assembly.

1шт.

N6612

PUMP

ASSEMBLY, hydraulic, new, dual gear, Cessna No. 24386-RBL, Includes: Ref.1 thru 31

1шт.

1

166-19

12 PT SCREW,Flg, 5/16" - 18 x 5 1/2", Gr 8

BOLT ferry, head, 5/16 inch - 18 NC x 5-1/2 inch

4шт.

2

166-39

BOLT ferry, head, 5/16 inch - 18 NC x 5-1/4 inch

4шт.

3

N6031

COVER

port, end, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING cover

2шт.

5

H758599

O-RING,2.989" ID x 3.129" OD

gear, housing

2шт.

Part of seal kit P/N N6030.

1шт.

6

A7975

PIN

dowel, 2-1/4 inch (57 mm) long

2шт.

7

H756825

PIN dowel, 2 inch (51 mm) long

2шт.

8

D71206

HOUSING

GEAR HOUSING, port end

1шт.

9

N6619

PINION

GEAR drive, pump

1шт.

10

N6620

PINION

GEAR idler

1шт.

11

D71205

GEAR

rear

2шт.

12

D71209

KEY

1/8 inch x 3/16 inch x 13/32 inch

1шт.

13

211-306

BALL,7/32" Dia

steel

2шт.

Part of seal kit P/N N6030.

1шт.

14

F9883

SPRING

ball

2шт.

Part of seal kit P/N N6030.

1шт.

15

H325613

DIAPHRAGM

center, body

1шт.

Part of seal kit P/N N6030.

1шт.

16

D77645

DIAPHRAGM

front, cover

1шт.

17

H366922

GASKET

backup

2шт.

Part of seal kit P/N N6030.

1шт.

18

H262477

GUARD

PROTECTOR gasket

2шт.

Part of seal kit P/N N6030.

1шт.

19

H264994

SEAL

diaphragm, center, body

1шт.

Part of seal kit P/N N6030.

1шт.

20

H262469

SEAL

diaphragm, front, cover

1шт.

Part of seal kit P/N N6030.

1шт.

21

N6618

HOUSING

CARRIER bushing, Includes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

BUSHING body

4шт.

23

F30416

BODY

HOUSING gear, drive shaft, end

1шт.

24

R33009

COVER

drive shaft, end, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING cover, long

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING cover, short

1шт.

27

F11406

SEAL

shaft

1шт.

Part of seal kit P/N N6030.

1шт.

28

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

hex head, 3/8 inch - 16 NC x 1 inch

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

H173831

ADAPTER

PORT body

1шт.

31

H173823

GASKET

port

1шт.

Part of seal kit P/N N6030.

1шт.

N6030

SEAL KIT

seal, Includes: Refs. 5, 13 - 15, 17 - 20, 27 and 31

1шт.
