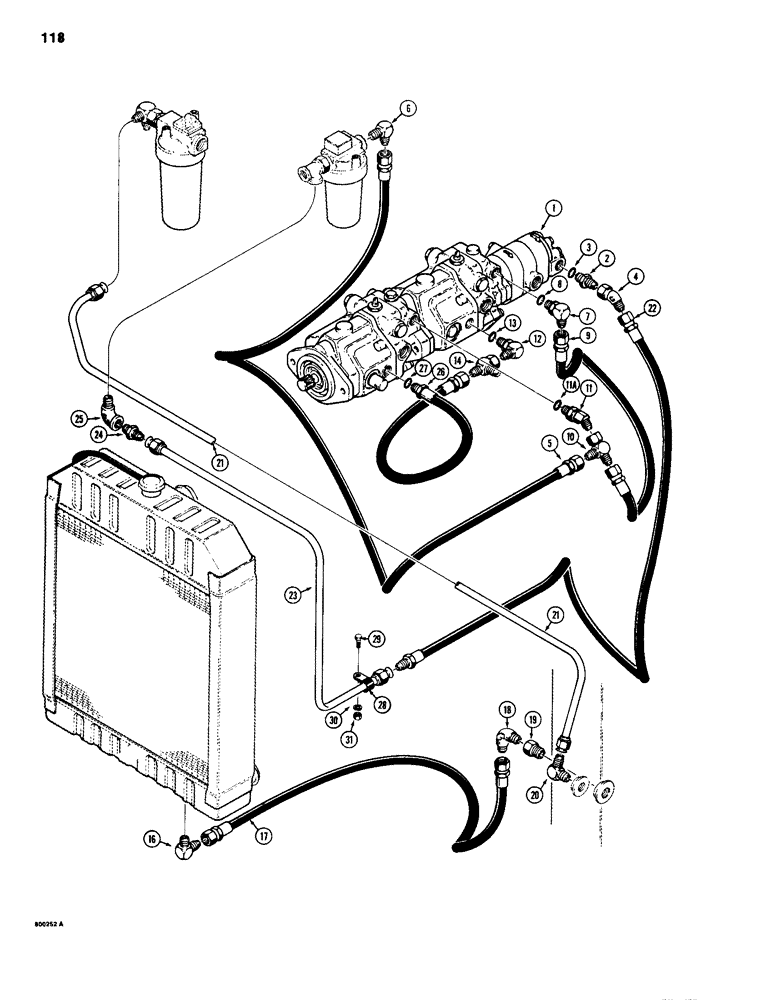

Запчасти Case IH 1835 (118) - TANDEM PUMP HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

REF

INSTRUCTION

PUMP tandem, Fig. 120

1шт.

2

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, male, connector, Includes: Ref. 3

1шт.

4

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

swivel, 45 degree

1шт.

5

D84482

HOSE

filter to pump, 47-1/4 inch (1200 mm) long

1шт.

6

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

filter to hose, 90 degree

1шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 8 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

9

D87560

HOSE

pump to charge ports, 17-11/16 inch (450 mm) long

1шт.

10

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

charge, pressure, inlet

1шт.

11

D69737

FITTING

ELBOW special, rear, charge, port, Includes: Ref.11A

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

front, pump, drain, Includes: Ref. 13

1шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

14

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

pump 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

16

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

cooler, 90 degree

1шт.

17

D121823

HOSE

cooler to reservoir, 26-9/16 inch (675 mm) long

1шт.

18

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

hose, 90 degree

1шт.

19

221-63

BUSHING

REDUCER, 3/8 inch x 1 inch

1шт.

20

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

tube to reservoir, 90 degree

1шт.

21

D88590

TUBE hydraulic, filter to reservoir 0.75" OD x 29.79, 14.01" L

1шт.

22

720-8197

HOSE ASSY.

HOSE charge pump to filter, 31-1/2 inch (800 mm) long

1шт.

23

D90638

TUBE,0.75" OD

pump to filter

1шт.

24

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

ADAPTER straight, male

1шт.

25

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW, 1/2 NPT,90 degree

1шт.

26

D61390

HOSE

pump, drain, 16 inch (406 mm) long, Includes: Ref. 27

1шт.

27

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

1шт.

28

49855

CLAMP

hydraulic tube

1шт.

29

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

30

92-5

LOCK WASHER,5/16"

1шт.

31

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch - 18 NC

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

11a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
