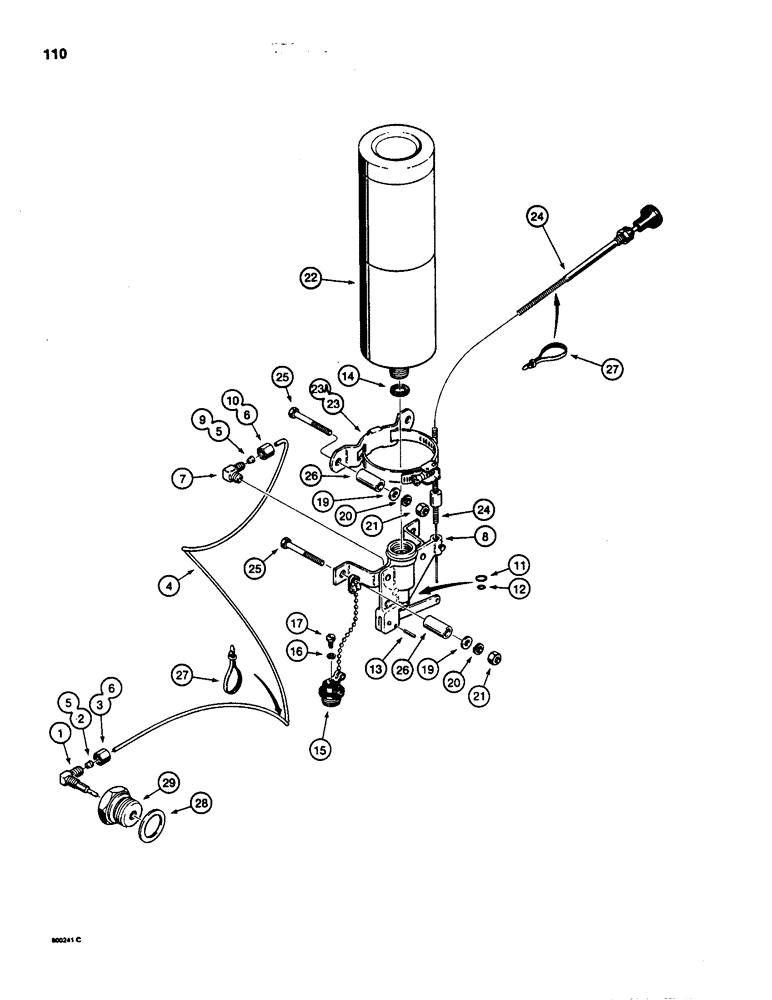

Запчасти Case IH 1835 (110) - COLD START AID (04) - ELECTRICAL SYSTEMS

D70782

KIT

cold, start, Includes: P/N D55946, D55947, D55948 and Ref. 19 thru 24

1шт.

D55946

JET

ASSEMBLY injector, cold, start, Includes: Ref. 1 thru 3

1шт.

1

NSS

NOT SOLD SEPARAT

INJECTOR cold, start

1шт.

2

222-650

SLEEVE,1/8" Tube, Comp

1шт.

3

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

sleeve 5/16"-24, 45º Fl, Comp

1шт.

D55947

TUBE

ASSEMBLY, valve to injector, Includes: Ref. 4 thru 6

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE, valve to injector, 60 inch (1524 mm) long

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

2шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

sleeve 5/16"-24, 45º Fl, Comp

2шт.

D55948

VALVE

ASSEMBLY, cold, start, Includes: Ref. 7 thru 17

1шт.

7

NSS

NOT SOLD SEPARAT

ELBOW ASSEMBLY, valve

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE actuator

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

1шт.

10

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

sleeve 5/16"-24, 45º Fl, Comp

1шт.

11

A51274

O-RING,0.145" ID x 0.285" OD

internal, plunger, top

1шт.

Part of valve kit P/N D55951.

1шт.

12

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

internal, plunger, bottom

1шт.

Part of valve kit P/N D55951.

1шт.

13

135-313

GROOVED PIN,3/32" x 1/2"

PIN drive, 3/3 inch

1шт.

Part of valve kit P/N D55951.

1шт.

14

D74422

GASKET

SEAL, Serial Range: cylinder-valve

1шт.

Part of valve kit P/N D55951.

1шт.

15

N8826

PLUG

CHAIN valve, Includes: plug

1шт.

16

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

17

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

No. 10 - 24 NC x 1/2 inch

1шт.

19

195-102

WASHER,1/4"

flat, plated, 1/4 inch

4шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

22

D55767

CYLINDER

cold, start

1шт.

23

L35279

BRACKET

clamp

1шт.

23a

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP cylinder, includes: hardware

1шт.

24

D88741

CABLE

cold, start, control

1шт.

25

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

4шт.

Replaces 3/4 inch long bolt that is included in cold start kit but not used on this model.

1шт.

26

D121476

BUSHING

SPACER cylinder, clamp

4шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

28

A20916

MANIFOLD GASKET

WASHER special

1шт.

29

L10283

PLUG

manifold

1шт.

D55951

REPAIR KIT

KIT valve, Includes: Refs. 11 thru 14

1шт.
