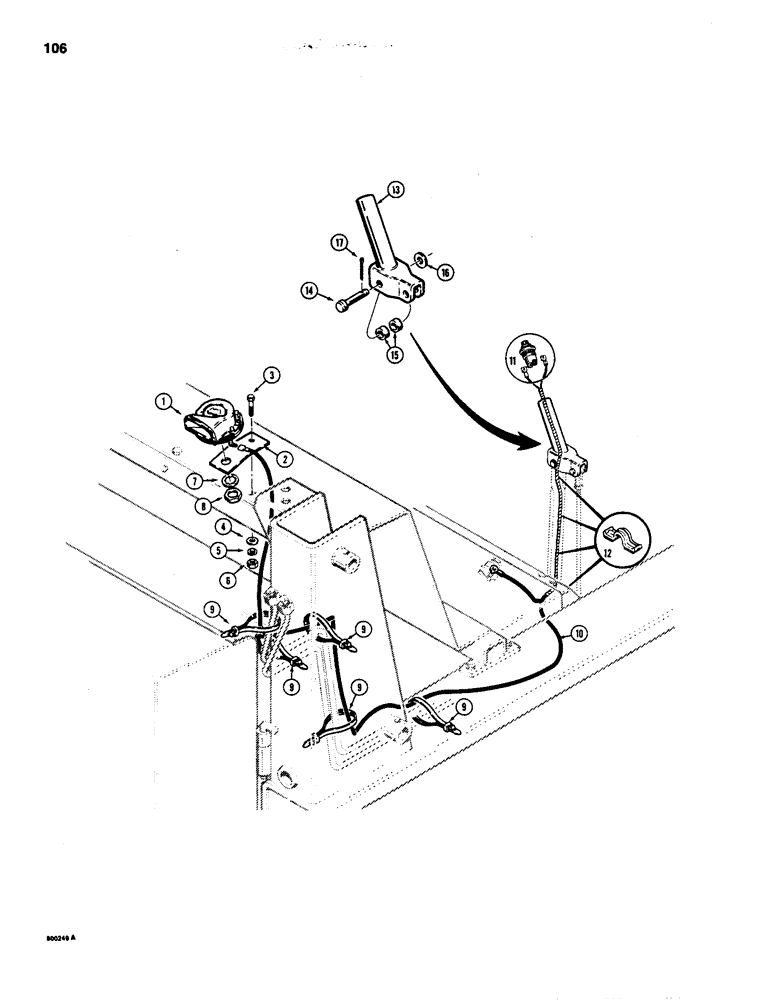

Запчасти Case IH 1835 (106) - HORN (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

12 volt

1шт.

2

D70122

BRACKET

horn, mounting

1шт.

3

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, head, 5/16 inch - 18 NC x 1-1/4 inch

1шт.

4

195-521

WASHER,5/16", SAE

flat , plated, 5/16 inch

1шт.

5

92-5

LOCK WASHER,5/16"

WASHER lock, 3/8 inch, used with P/N D75814

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch - 18 NC

1шт.

7

193-36

LOCK WASHER,Int Tooth, 7/8"

WASHER, LOCK, Int Tooth, 7/8"

1шт.

8

L30866

LOCK NUT

special

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

10

D76685

HARNESS

horn

1шт.

11

D91440

SWITCH

BUTTON horn

1шт.

12

F93268

CLIP

harness

4шт.

13

D93384

HANDLE

control, right-hand, used on models with horn, Replaces: P/N D65261

1шт.

14

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN clevis, handle

1шт.

15

D33551

BUSHING

SPACER handle

2шт.

16

195-25

WASHER,3/8"

1шт.

17

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.
