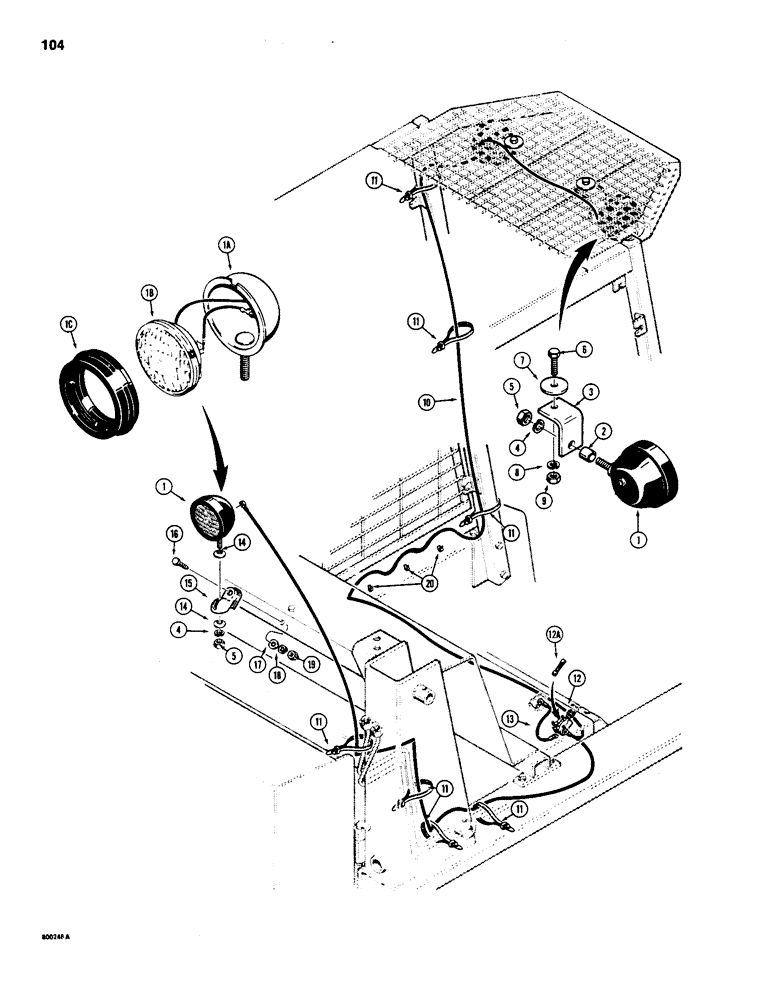

Запчасти Case IH 1835 (104) - LAMPS (04) - ELECTRICAL SYSTEMS

1

D70483

HEADLIGHT

LAMP ASSEMBLY, 12 volt, driving and flood, Includes: Ref. 1A, 1B, 1C

3шт.

1a

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

1b

A42294

SEALED BEAM UNIT

LAMP sealed beam, No. 4406

1шт.

1c

A25213

RETAINER

rubber

1шт.

2

Y214

BUSHING

SPACER lamp

2шт.

3

D70114

BRACKET

lamp mounting

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

7

T40254

WASHER

special

2шт.

8

195-525

WASHER,3/8", SAE

lock, plated, 3/8 inch

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

WASHER hex, plated, 3/8 inch - 16 NC

2шт.

10

D70030

HARNESS

lamp

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

12

L16099

SWITCH

lamp, Includes: Ref 12A

1шт.

12a

223-20

FUSE,20 Amp, Type SFE

20 amp.

1шт.

13

D54480

WIRE jumper

1шт.

14

10923

WASHER

special, 1/2 inch

2шт.

15

A34046

BRACKET

lamp

1шт.

16

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

17

195-521

WASHER,5/16", SAE

flat, plated, 5/16 inch

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

19

9635082

NUT,5/16" - 18, Gr 5

1шт.

20

214-1105

CLIP

harness

3шт.
