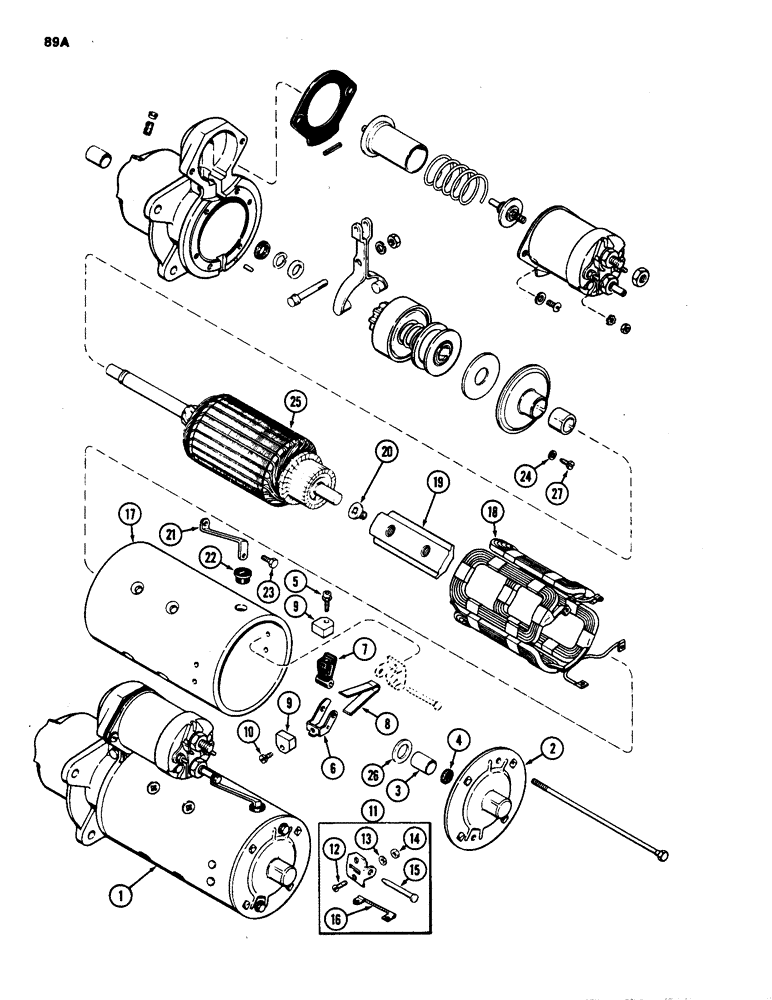

Запчасти Case IH 1835 (089A) - A169502 STARTER, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A169502

STARTER MOTOR

STARTER ASSEMBLY, engine, new, Delco - Remy no.1998353

1шт.

1

A47494

STARTING MOTOR

STARTER ASSEMBLY engine, remanufactured

1шт.

1

A47495

CORE-STARTER

Return Part Number, starter, Includes: Ref. 2 thru 26

1шт.

Use this number for intransit core for credit.

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A49447

FUNNEL

FRAME HEAD ASSEMBLY, commutator, end, Includes: Ref. 3 and 4

1шт.

3

A45152

BUSHING

BUSHING armature, shaft

1шт.

4

A47133

WICK

WICK oil

1шт.

6

A48714

HOLDER

HOLDER brush, grounded

2шт.

7

A49448

HOLDER

HOLDER brush, insulated

2шт.

8

A48713

SPRING

SPRING pressure, brush

2шт.

9

A49479

BRUSH

BRUSH armature

4шт.

10

A42124

SCREW,#8 - 32 x 5/8"

SCREW ASSEMBLY, brush

2шт.

10

A48710

SCREW,3/4"

SCREW ASSEMBLY, brush

2шт.

11

A46860

SUPPORT

KIT support, brush, holder, Includes: Ref. 12 thru 16

2шт.

12

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW slotted, round, head, No. 10-24 x 3/16 inch

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

14

129-17

NUT,Hex, #10 - 24

NUT hex, No. 10-24

2шт.

15

A41983

PIN

PIN brush, holder

1шт.

16

NLS

NO LONGER SERVICED

WIRE LEAD ground, brush

1шт.

17

NSS

NOT SOLD SEPARAT

FRAME starter

1шт.

18

A49481

COIL

COIL ASSEMBLY, field

1шт.

19

A25391

SHOE

SHOE pole

4шт.

20

A42127

SCREW,3/8" - 24 x 0.20"

SCREW flat, head, pole, shoe

8шт.

21

A48718

ROD, CONNECTING

CONNECTOR field

1шт.

22

A41980

GROMMET

GROMMET connector

1шт.

23

A42023

SCREW,#10 - 32 x 1/2"

SCREW field, lead

1шт.

25

A25547

ARMATURE

ARMATURE starter

1шт.

26

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER spacer

1шт.
