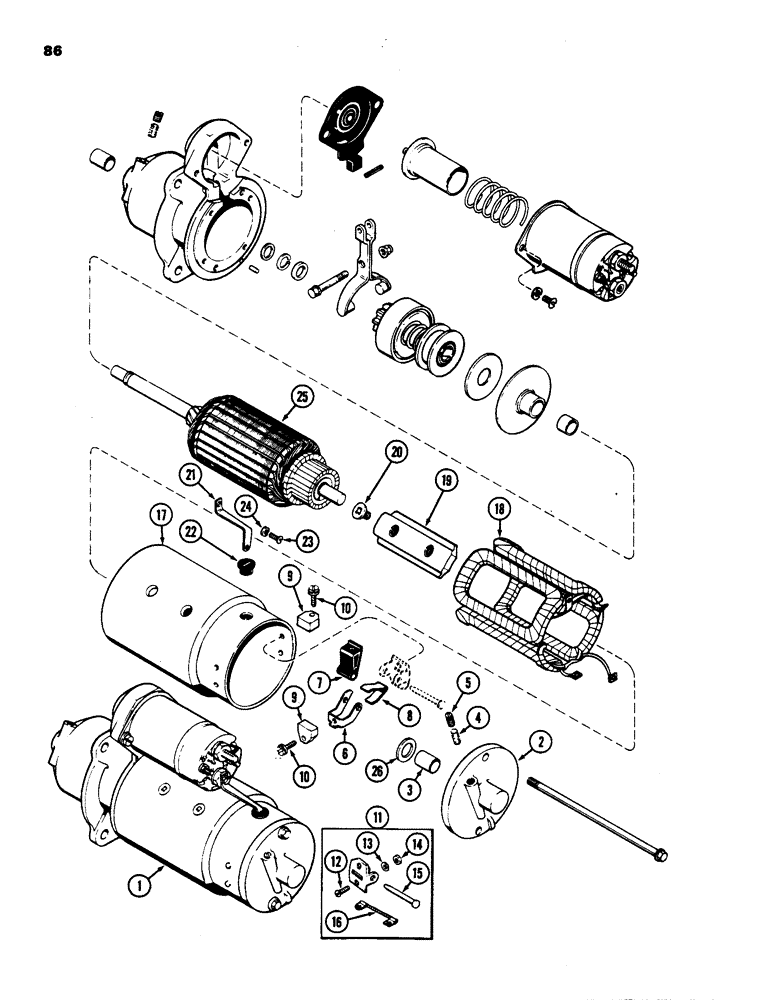

Запчасти Case IH 1835 (086) - D12495 STARTER, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

R29870

STARTING MOTOR

STARTER ASSEMBLY, engine, Delco-Remy No. 11091490 order: P/N A169502, see Fig. 89A, Includes: Ref. 2 thru 26

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

HEAD ASSEMBLY, commutator, end, Includes: Ref. 3 thru 5

1шт.

3

A45152

BUSHING

BUSHING armature, shaft

1шт.

4

A41979

WICK

WICK oil

1шт.

5

221-1041

PLUG

PLUG slotted, 1/8 inch, PT

1шт.

6

A40217

HOLDER

HOLDER brush, grounded

2шт.

7

A49472

HOLDER

HOLDER brush, insulated

2шт.

8

A25359

SPRING

SPRING pressure, brush

2шт.

9

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH aramture

4шт.

10

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW ASSEMBLY, brush

4шт.

11

A25379

KIT

KIT support, brush, holder, Includes: Ref. 12 and 16

2шт.

12

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW round, head, No. 10-24 x 1/2 inch

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

14

129-17

NUT,Hex, #10 - 24

NUT hex, No. 10-24

2шт.

15

R15035

PIN

PIN brush, holder

1шт.

16

A42494

ELECTRICAL WIRE

WIRE LEAD ground, brush

1шт.

17

NSS

NOT SOLD SEPARAT

FRAME starter

1шт.

18

A25548

COIL

COIL ASSEMBLY, field

1шт.

19

A25391

SHOE

SHOE pole

4шт.

20

74-612

SCREW,3/8" - 24 x 3/4"

SCREW flat head, 3/8 x 5/8 inch, NF

8шт.

21

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR field

1шт.

22

A41980

GROMMET

GROMMET connector

1шт.

23

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW round, head, No.10-32 x 7/16 inch

1шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

25

A25547

ARMATURE

ARMATURE starter

1шт.

26

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER spacer

1шт.

This starter changed from a 10 tooth gear to a 9 tooth gear for faster cranking speed. This changed the nose piece in the area of the offset. Megavolt gets more cores in on the 10 tooth gear and the offset is only .050 diff. between the two gears. at times the nose pieces get mixed up and the result is the starter gear won't mesh with the ring gear unless the starter mounting bolts are loose. On 2/26/96 (MEGA-VOLT) is in process of designing a fixture to readily identify the different nose pieces. byTS

1шт.

The P/N R29870 subs to P/N 104202A2R.

1шт.
