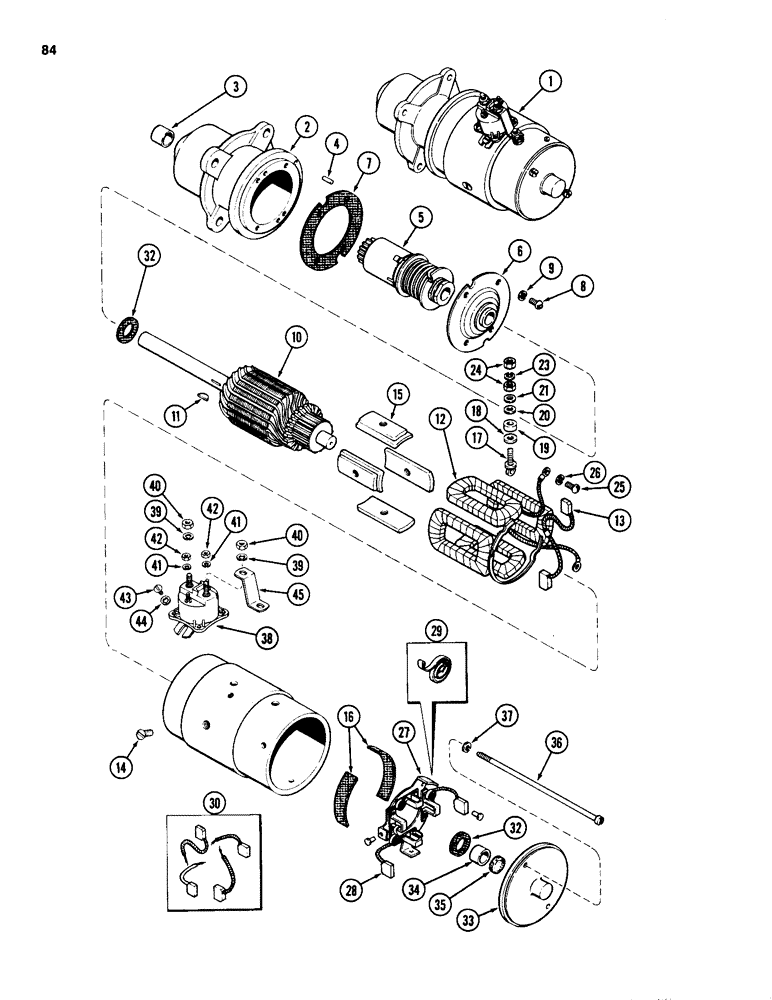

Запчасти Case IH 1835 (084) - D124795 STARTER, 148B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

D124795

STARTING MOTOR

STARTER ASSEMBLY, engine, Prestolite No. MDU - 7117, Includes: Ref. 2 thru 45

1шт.

2

A25610

HOUSING

ASSEMBLY, drive, end, Includes: Ref. 3 and 4

1шт.

3

A25611

BEARING

armature, shaft

1шт.

4

NSS

NOT SOLD SEPARAT

PIN locating

1шт.

5

A40272

DRIVE

ASSEMBLY, starter

1шт.

6

A43257

BUSHING

PLATE ASSEMBLY, intermediate, bearing

1шт.

7

G46910

GASKET

bearing, plate

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

round, head, No. 10-32 x 7/16 inch

4шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

10

A44996

ARMATURE

starter

1шт.

11

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

12

A25604

PACKAGE

COIL ASSEMBLY, field, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH coil, order Ref. 30

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW pole, shoe

4шт.

15

NSS

NOT SOLD SEPARAT

SHOE pole, Includes: Ref. 13

4шт.

16

NSS

NOT SOLD SEPARAT

INSULATION coil

2шт.

NLS

NO LONGER SERVICED

terminal, field, stud, Includes: Ref. 17 thru 26

1шт.

17

NSS

NOT SOLD SEPARAT

STUD field, terminal

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER insulating, inner

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING insulating

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER insulating, outer

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER steel

1шт.

23

87812

LOCK WASHER,#8

Washer, Lock, #8

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

#8-32

2шт.

25

182-545

SCREW,Slotted Pan Hd, #8-32 x 5/16"

pan, head, No. 8-32 x 3/8 inch

1шт.

26

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

27

A25612

PLATE

ASSEMBLY, brush, carrier, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

BRUSH starter, order: Ref. 30

2шт.

29

A40275

SPRING

KIT spring, brush, set of 4

1шт.

30

A25603

BRUSH SET

SET brush, starter, set of 4

1шт.

A40277

KIT

washer, thrust, Includes: Ref. 32

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER, 1/32 inch (0.8 mm)

4шт.

32

NSS

NOT SOLD SEPARAT

WASHER, 3/64 inch (1 mm)

2шт.

33

A40274

HEAD

ASSEMBLY, commutator end, Includes: Ref. 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

BUSHING armature, shaft

1шт.

35

NSS

NOT SOLD SEPARAT

FELT oiler

1шт.

36

A25601

SCREW

through

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

38

A48923

SOLENOID

ASSEMBLY, , Includes: Ref. 39 thru 42

1шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

40

129-122

NUT,5/16"-24, G5

2шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

42

129-37

NUT,#10-32

1шт.

43

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

round, head, No. 10-32 x 1/4 inch

2шт.

44

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

45

A48922

CONNECTOR, ELEC

CONNECTOR, Serial Range: solenoid-field

1шт.
