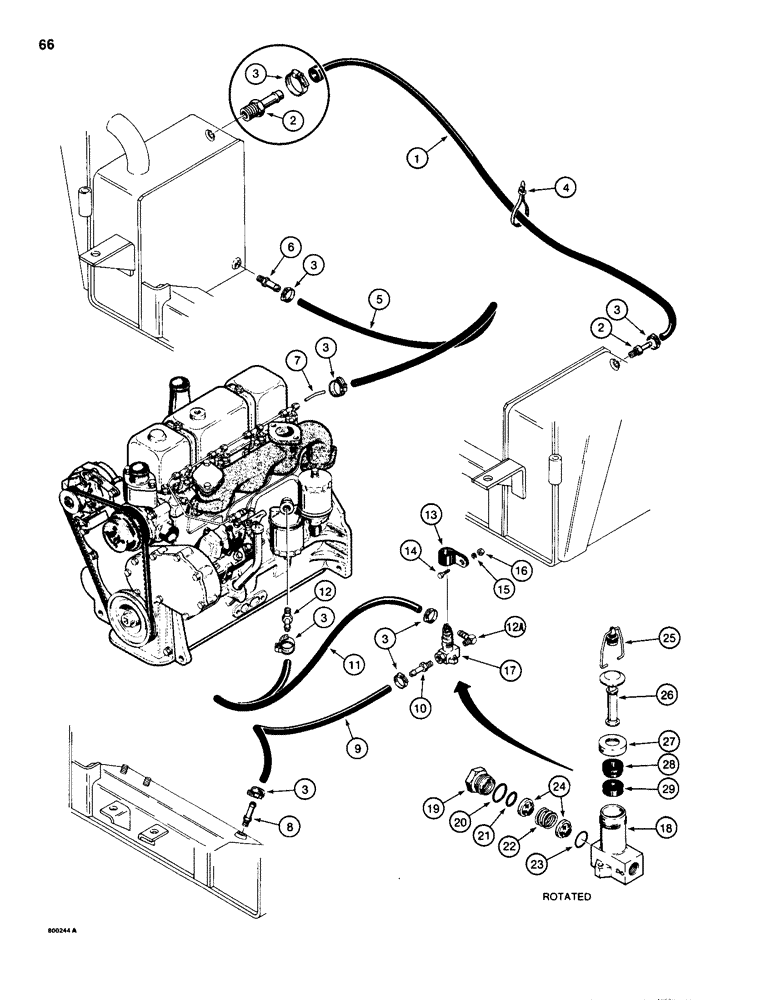

Запчасти Case IH 1835 (066) - FUEL LINES, DIESEL MODELS (03) - FUEL SYSTEM

1

REF

INSTRUCTION

HOSE fuel, vent, 3/8 inch (10 mm) x 40 inch (1016 mm) long

1шт.

Cut from P/N A21562 bulk hose.

1шт.

2

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

stem - straight, Fuel vent, hose to tank 3/8" Hose X 1/4" NPTF Beaded

2шт.

3

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP hose

8шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

5

REF

INSTRUCTION

HOSE fuel return, 1/4 inch (6 mm) x 48 inch (1220 mm) long, cut from A21561 bulk hose, see below

1шт.

Cut from P/N A21561 bulk hose.

1шт.

6

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

hose stem, straight, fuel return hose to fuel tank

1шт.

7

D67306

TUBE

fuel, return hose

1шт.

8

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

stem - straight, Fuel tank to fuel primer hose 3/8" Hose X 1/4" NPTF Beaded

1шт.

9

REF

INSTRUCTION

HOSE tank to primer 1/4 inch (6 mm) x 17 inch (432 mm) long

1шт.

Cut from P/N H400184 bulk length hose, Ref. 9A.

1шт.

9a

H400184

FUEL HOSE,6.35 mm ID x 1905.00 mm, SAE 30R1, SAE 30R3

6.35 mm ID x 1905.00 mm Bulk, SAE 30R1, SAE 30R3, Cut from Bulk Hose, Not Shown

1шт.

10

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

hose, stem, straight, hose to primer

1шт.

11

REF

INSTRUCTION

HOSE primer to fuel filter, 1/4 inch (6 mm) x 17 inch (432 mm) long

1шт.

Cut from P/N H400184 bulk length hose, Ref. 9A.

1шт.

12

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

hose, stem, straight, hose to fuel filter

1шт.

12a

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

barb, 90 degree

1шт.

13

R21385

CLAMP

primer

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

25-106

NUT,3/8"-16, G5

hex, 3/8 inch - 16 NC

1шт.

17

D75092

PUMP

PRIMER fuel, Includes: Ref. 17 thru 29

1шт.

18

F10070

BODY

primer

1шт.

19

F10068

NUT

FITTING special

1шт.

20

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL fitting

1шт.

21

73692

ARM

SEAL valve

1шт.

22

D75866

SPRING

valve

1шт.

23

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL valve body

1шт.

24

F10076

LOCK VALVE

VALVE primer

2шт.

25

F10073

CLAMP

plunger

1шт.

N7519

KIT

PLUNGER ASSEMBLY, primer, Includes: Ref. 26 thru 29

1шт.

26

F10074

KIT

PISTON plunger

1шт.

27

D75865

KIT

CAP plunger

1шт.

28

F10072

GUIDE

SLEEVE piston

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

A21562

HOSE,0.38" ID x 25.00"

bulk, 1/4 inch (6 mm) x 25 feet (7.62 mm) long

1шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk

1шт.
