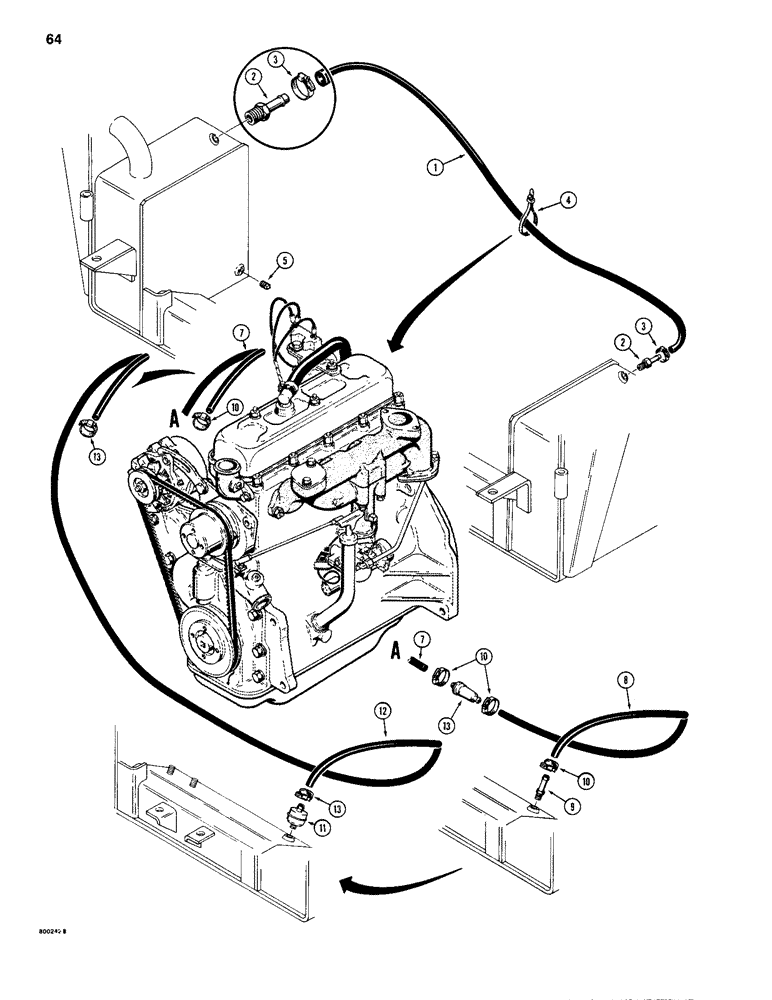

Запчасти Case IH 1835 (064) - FUEL LINES, GASOLINE MODELS (03) - FUEL SYSTEM

1

REF

INSTRUCTION

HOSE fuel, vent, 3/8 inch (10 mm) x 40 inch (1016 mm) long

1шт.

Cut from P/N A21562 bulk hose.

1шт.

2

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

stem - straight, Fuel vent, hose to tank 3/8" Hose X 1/4" NPTF Beaded

2шт.

3

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP fuel, vent, hose

2шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

5

221-11

PLUG,Sq Hd, 1/8"-27

square, head, 1/8 inch NPT

1шт.

6

D59949

FILTER

fuel, in-line, if used

1шт.

7

REF

INSTRUCTION

HOSE filter to fuel pump, 1/4 inch (6 mm) x 7-3/16 inch (183 mm) long, used on models with in-line filter

1шт.

Cut from P/N C18275 bulk length hose, Ref. 7A.

1шт.

7a

C18275

HOSE

bulk length, 1/4 inch (6 mm) x 44 inch (1118 mm) long, not shown

1шт.

8

REF

INSTRUCTION

HOSE tank to filter, 1/4 inch (6 mm) x 33 inch (838 mm) long used on models with in-line filter

1шт.

Cut from P/N A21561 bulk hose.

1шт.

9

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

hose, stem, straight, fuel tank to filter hose, used on models with in-line filter

1шт.

10

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP hose

4шт.

11

D53499

FILTER

fuel, tank, mounted, if used

1шт.

12

REF

INSTRUCTION

HOSE filter to fuel, pump, 5/16 inch (8 mm) x 40 inch (1016 mm) long, used on models with tank mounted fuel filter, cut from H424101 bulk length hose, item 12A

1шт.

12a

H424101

HOSE,7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

- Bulk, Not shown 7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

1шт.

13

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

CLAMP hose

2шт.

A21562

HOSE,0.38" ID x 25.00"

bulk, 1/4 inch (6 mm) x 25 feet (7.62 mm) long

1шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk

1шт.
