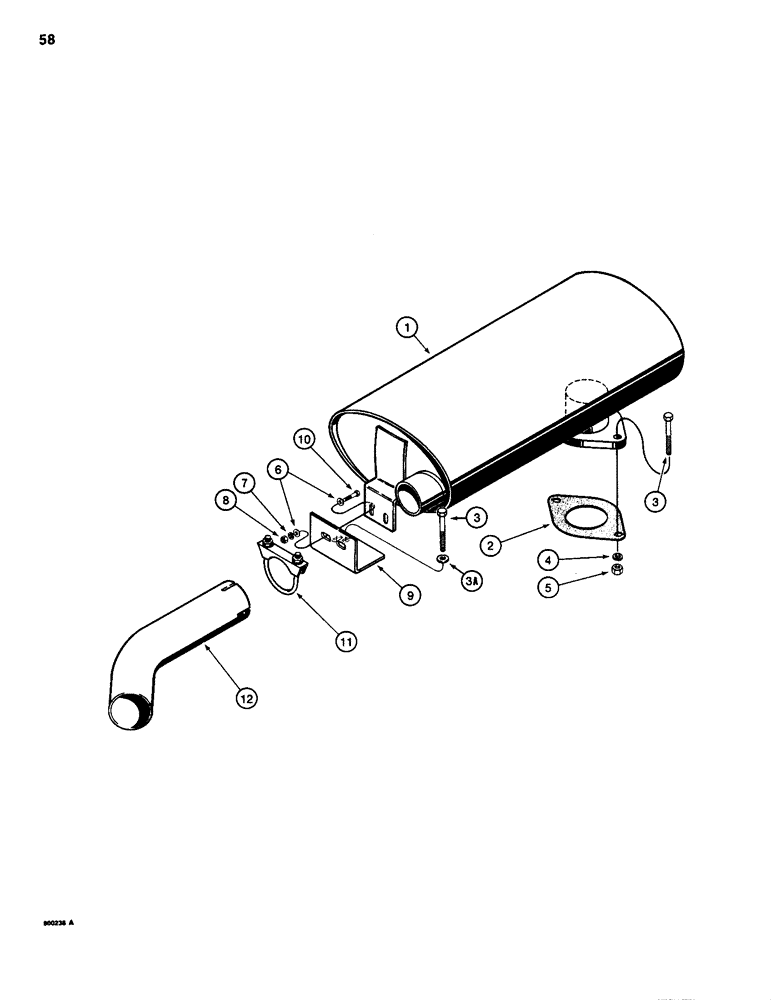

Запчасти Case IH 1835 (058) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

D88436

MUFFLER

exhaust, standard, if used

1шт.

1

D92598

MUFFLER

exhaust, wrapped, noise control, not shown, if used

1шт.

1

D91319

MUFFLER

exhaust, spark arresting, not shown, if used

1шт.

2

G46853

MANIFOLD GASKET

muffler

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, head, 3/8 inch - 16 NC x 1-1/2 inch

3шт.

3a

195-25

WASHER,3/8"

1шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

hex, 3/8 inch - 16 NC

2шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

flat, 5/16 inch

4шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch - 18 NC

2шт.

9

D88435

BRACKET

muffler, mounting

1шт.

10

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

11

L73301

CLAMP,51mm ID

ASSEMBLY, muffler, Includes: hardware

1шт.

12

D91297

PIPE, EXHAUST SYSTEM

PIPE exhaust

1шт.
