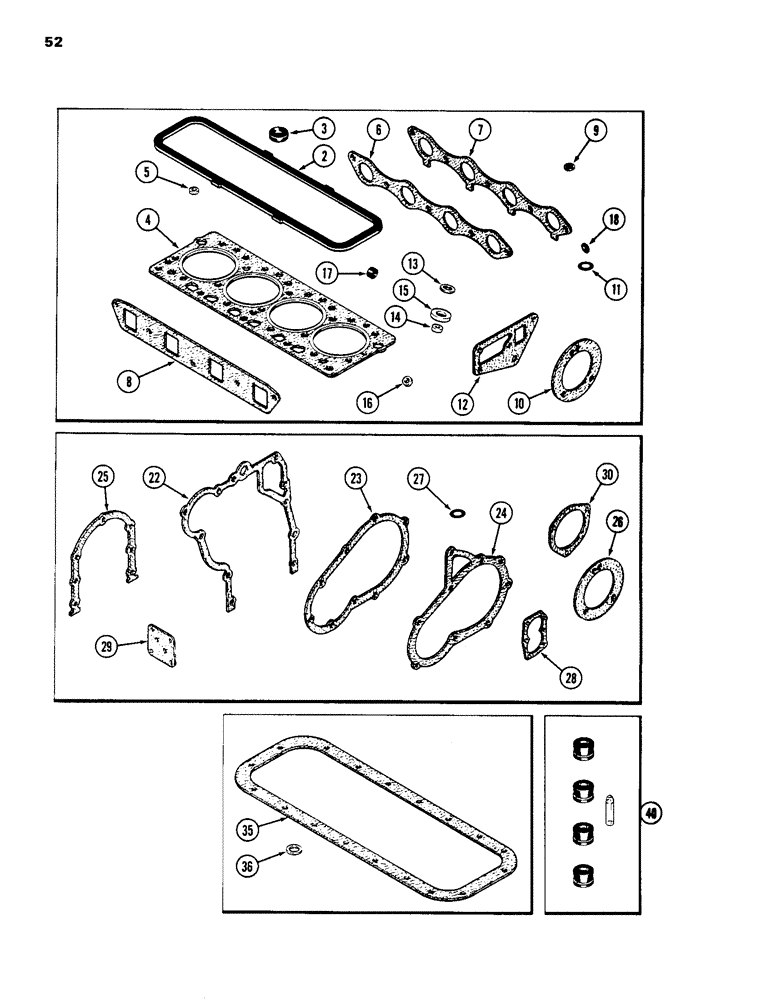

Запчасти Case IH 1835 (052) - ENGINE GASKET KITS, 188 DIESEL ENGINE (02) - ENGINE

A155589

GASKET KIT

KIT GASKET, valve, grind, Includes: Ref. 2 thru 18

1шт.

For complete engine overhaul order: P/N A155589, A43198 AND A44758.

1шт.

2

A43030

GASKET,3.05mm Thk

valve, cover

1шт.

3

A142098

GROMMET

valve, cover, studs

2шт.

4

A148745

CYLINDER HEAD GASKET

cylinder, head

1шт.

5

G46851

SEAL

valve, stem

8шт.

6

G46872

MANIFOLD GASKET

exhaust, manifold, without turbocharger

1шт.

7

A155137

GASKET

exhaust, manifold, with turbocharger, not used this application

1шт.

8

G46871

GASKET

intake, manifold

1шт.

9

A50694

DISC

WASHER seal, intake, manifold, stud

3шт.

10

A38083

GASKET

water, pump

1шт.

11

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

water, pump, body, 3/4 inch (20 mm) ID

1шт.

12

A38084

GASKET,1.27mm Thk

water, pump, body

1шт.

13

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

GASKET fuel, injection, engine

8шт.

14

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon, stop, injector, nozzle, engine

4шт.

15

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

seal, injector, nozzle

4шт.

16

G49068

GASKET

injector, nozzle, not used this application

4шт.

17

222-101

SLEEVE,3/16" Tube

3/16 inch, tube, not used this application

4шт.

17

222-103

SLEEVE,5/16" Tube

(Not used this application) 5/16" Tube

2шт.

18

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

manifold, stud, not used this application

3шт.

A43198

GASKET

KIT GASKET, cylinder, block, Includes: Ref. 22 thru 30

1шт.

For complete engine overhaul order: P/N A155589, A43198 AND A44758.

1шт.

22

A51529

GASKET

timing, gear, cover

1шт.

23

A39925

GASKET

drive, gear, cover

1шт.

24

G46859

GASKET

drive, gear, cover, not used this application

1шт.

25

A39188

GASKET

oil, seal, retainer

1шт.

26

A38083

GASKET

water, pump

1шт.

27

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

water, pump, 3/4 inch (19 mm) ID

1шт.

28

G46852

GASKET

oil, pump, cover

1шт.

29

G46854

GASKET

oil, filter, bracket, not used this application

1шт.

30

A30042

GASKET

power steering pump, not used this application

1шт.

A44758

GASKET

KIT GASKET oil, pan

1шт.

For complete engine overhaul order: P/N A155589, A43198 AND A44758.

1шт.

35

NSS

NOT SOLD SEPARAT

GASKET pan to block, Includes: Ref. 36 thru 40

1шт.

36

A58608

GASKET

drain, plug, nylon

1шт.

36

A34827

GASKET

drain, plug, copper, not used this application

1шт.

40

M20611

SEAL KIT

SEAL valve, stem, Includes: 4 seals and tool

1шт.
