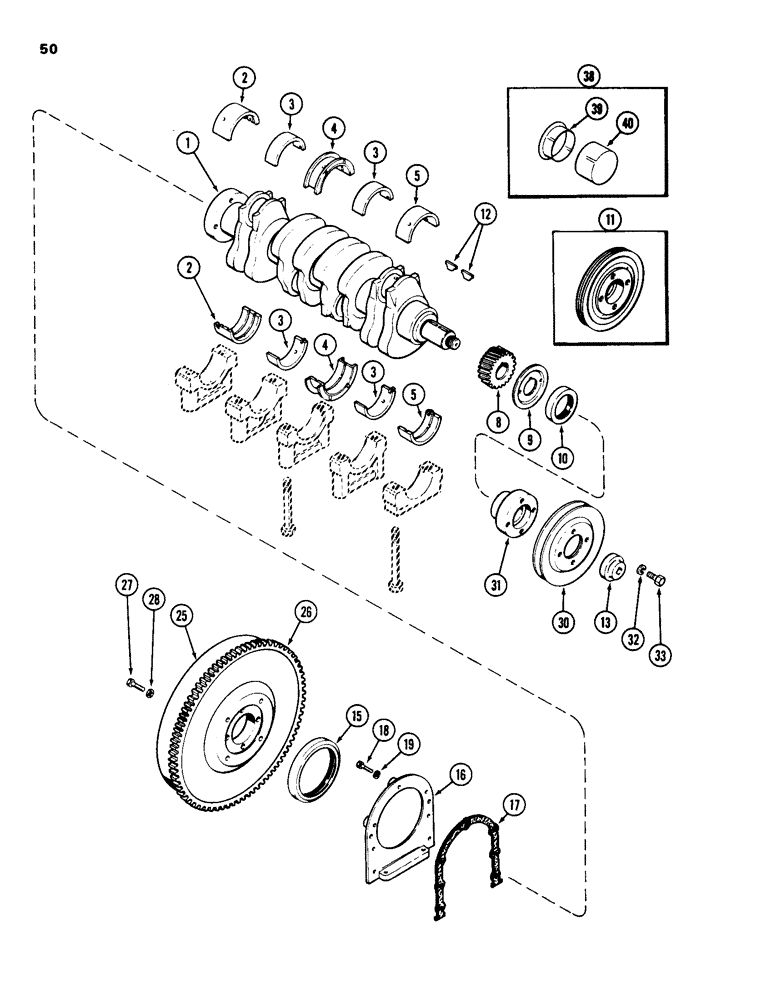

Запчасти Case IH 1835 (050) - CRANKSHAFT AND FLYWHEEL, 188 DIESEL ENGINE (02) - ENGINE

1

A151015

CRANKSHAFT

engine

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

INSERT rear, bearing, set of 2, Standard

1шт.

2

A36496

LINING

INSERT rear, bearing, set of 2, 0.002 inch (0.051 mm), undersize

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

INSERT rear, bearing, set of 2, 0.010 inch (0.254 mm), undersize

1шт.

2

A36498

KIT

INSERT rear, bearing, set of 2, 0.020 inch (0.508 mm), undersize

1шт.

2

A36499

BEARING LINER

INSERT rear, bearing, set of 2, 0.030 inch (0.762 mm), undersize

1шт.

3

A36485

LINING

INSERT intermediate, bearing, set of 2, Standard

2шт.

3

A36486

LINING

INSERT intermediate, bearing, set of 2, 0.002 inch (0.051 mm), undersize

2шт.

3

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

INSERT intermediate, bearing, set of 2, 0.010 inch (0.254 mm), undersize

2шт.

3

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

INSERT intermediate, set of 2, 0.020 inch (0.508 mm), undersize

2шт.

3

A36489

LINING

INSERT intermediate, bearing, set of 2, 0.030 inch (0.762 mm), undersize

2шт.

4

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

INSERT center, bearing, set of 2, Standard

1шт.

4

A36491

LINING

INSERT center, bearing, set of 2, 0.002 inch (0.051 mm), undersize

1шт.

4

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT center, bearing, set of 2, 0.010 inch (0.254 mm), undersize

1шт.

4

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT center, bearing, set of 2, 0.020 inch (0.508 mm), undersize

1шт.

4

A36494

LINING

INSERT center, bearing, set of 2, 0.030 inch (0.762 mm), undersize

1шт.

5

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

INSERT front bearing, set of 2, Standard

1шт.

5

A36481

LINING

INSERT front bearing, set of 2, 0.002 inch (0.51 mm), undersize

1шт.

5

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

INSERT front bearing, set of 2, 0.010 inch (0.254 mm), undersize

1шт.

5

A36483

LINING

INSERT front bearing, set of 2, (0.508 mm) undersize

1шт.

5

A36484

LINING

INSERT front bearing, set of 2, 0.030 inch (0.762 mm), undersize

1шт.

8

A39288

GEAR

crankshaft

1шт.

9

A29259

SLINGER

oil

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

oil, front

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

oil, front

1шт.

11

A155856

PULLEY

belt, drive, order: Ref. 30 thru 33

1шт.

12

A39132

KEY

pulley and gear

2шт.

13

A166176

NUT

pulley

1шт.

15

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

oil, rear

1шт.

16

A38390

RETAINER

oil, seal

1шт.

17

A39188

GASKET

retainer

1шт.

18

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

hex, 1/4 NC x 3/4 inch, Grade 8

4шт.

18

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

hex, 1/4 NC x 1 inch, Grade 8

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

25

A135781

FLYWHEEL

ASSEMBLY, engine, Includes: Ref.26

1шт.

26

G11710

GEAR

O-ring

1шт.

27

A37216

BOLT

flywheel

4шт.

28

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

bolt, flywheel

4шт.

30

A166049

PULLEY

belt drive

1шт.

31

A156746

HUB

pulley

1шт.

32

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

33

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

38

A155893

SLEEVE

KIT seal, wear, front, oil, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

40

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.
