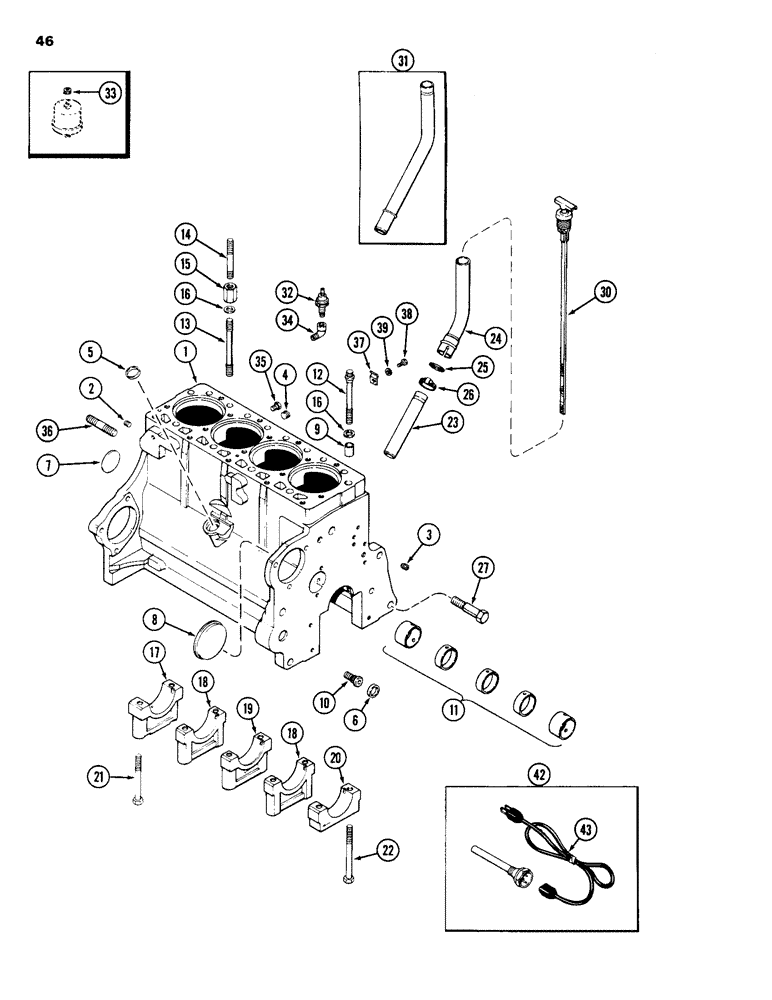

Запчасти Case IH 1835 (046) - CYLINDER BLOCK, 188 DIESEL ENGINE (02) - ENGINE

A46352

CRANKCASE

BLOCK ASSEMBLY, short, Includes: stripped block, piston assembly, connecting rods and bearings, crankshaft and bearings, camshaft, oil pump and timing gears

1шт.

1

A46351

BASIC BLOCK

BLOCK ASSEMBLY, stripped casting No. A152625, Includes: Ref. 2 thru 43

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

3шт.

3

G49070

PLUG

drilled, 1/4 inch PT

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG socket head, 3/8 inch PT

1шт.

5

A38534

PLUG

cup type, 1-1/6 inch (27 mm) diameter

1шт.

6

41-1016

PLUG,Cup, 1"

cup type, 1 inch (25 mm) diameter

1шт.

7

41-1030

PLUG,Cup, 1 7/8"

expansion, 1-7/8 inch (54 mm) diameter

1шт.

8

41-1052

PLUG,Cup, 3 1/4"

cup type, 3-1/4 inch (83 mm) diameter

1шт.

9

G49608

RING

dowel

2шт.

10

A153552

ADAPTER

oil, filter, Replaces: P/N A37206

1шт.

11

REF

INSTRUCTION

BUSHING camshaft see Fig. 20

1шт.

12

A39047

12 PT SCREW

BOLT cylinder, head, 3-1/2 inch, 12 point head

4шт.

12

A39048

12 PT SCREW

BOLT cylinder, head, 5-1/8 inch, 12 point head

11шт.

12

A39049

12 PT SCREW

BOLT cylinder, head, 5-5/8 inch, 12 point head

2шт.

13

A36902

STUD

lower, cover, 5-5/8 inch

2шт.

14

A51271

STUD

cover, 3-3/4 inch

2шт.

15

A51114

NUT

connector, 3/8 NC and 1/2 inch NC

2шт.

16

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

head bolt

19шт.

17

A38385

CAP

rear, crankshaft, bearing

1шт.

18

G2128

CAP

intermediate, crankshaft bearing

2шт.

19

G2127

CAP

center, crankshaft bearing

1шт.

20

G2126

CAP

front, crankshaft bearing

1шт.

21

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

hex, 1/2 NC x 4-1/2 inch, Grade 8

8шт.

22

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

hex, 1/2 NC x 5-1/8 inch, Grade 8

2шт.

23

A37149

TUBE

oil, filler and dipstick, service repair block, see Ref. 31

1шт.

24

A37407

TUBE

EXTENSION tube, service repair block, see Ref. 31

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

tube, seal

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP tube, 1-3/16 inch to 1-3/4 inch

1шт.

27

A38303

BOLT

BOLT, 5/8 x 3-3/16 NC, not used this application

1шт.

30

A136379

DIPSTICK

oil, level

1шт.

31

A140185

COUPLING

oil, filler and dipstick, J.I. Case installed block

1шт.

32

A162297

SWITCH

SENDER - engine, oil, pressure, Replaces: P/N D63294

1шт.

33

193-1000

NUT,Keps, w/LW,#10-32

Sems, No. 10 NF

1шт.

34

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

45 degree, street, Replaces: 221-401

1шт.

35

221-662

PLUG,Hex Hd, 1/4"-18

hex, head, 1/4 inch, PT

1шт.

36

A51412

STUD

rear, 1-3/4 inch

1шт.

37

A26673

CLIP

retaining, fuel shutoff, cable

1шт.

38

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

39

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

42

A44815

HEATER

ASSEMBLY, cylinder, block, block heater

1шт.

43

A44814

ELECTRIC CABLE

CORD, 12 inch, long, block heater

1шт.
