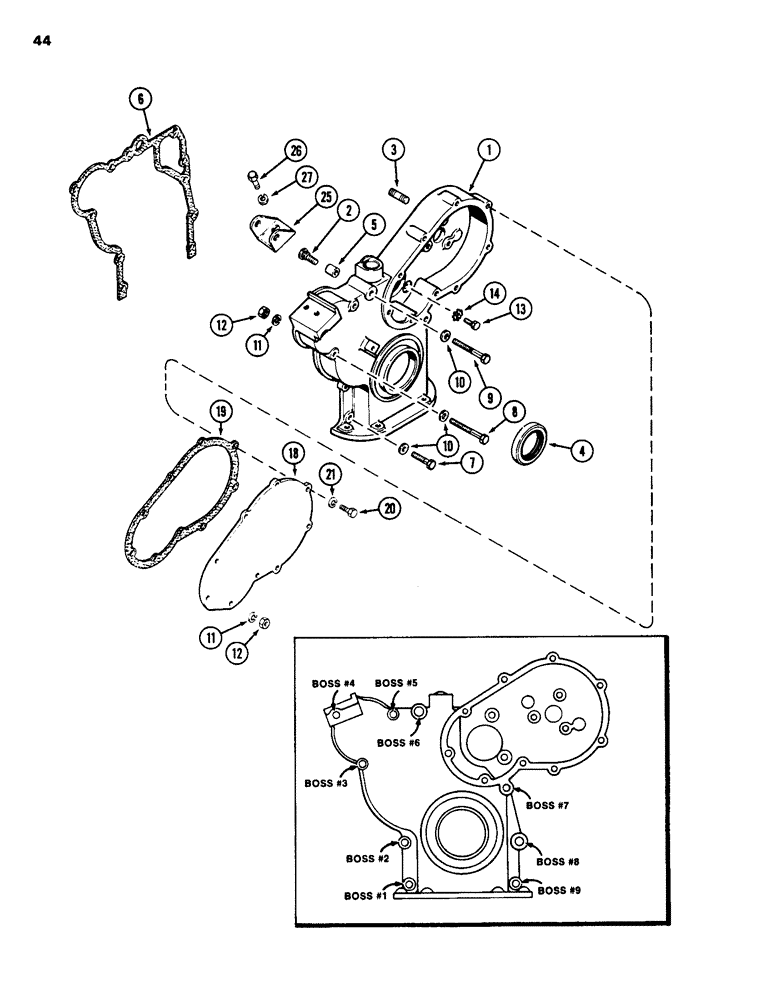

Запчасти Case IH 1835 (044) - TIMING GEAR COVER, 188 DIESEL ENGINE (02) - ENGINE

1

A51981

COVER

ASSEMBLY, timing gear, Includes: Ref. 2 thru 4

1шт.

2

A51649

STUD

cover

2шт.

3

G102128

BOLT

pump, mounting, 1-7/16 inch long

3шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

oil, crankshaft, front

1шт.

5

A29442

RING

DOWEL locating

2шт.

6

A51529

GASKET

cover

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Boss No. 1,2,9) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch (Boss No. 8)

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

hex, 3/8 NC x 2-3/4 inch (Boss No. 7)

1шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

hex, 3/8 NC x 3 inch (Boss No. 6)

1шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex, 3/8 NC x 3-1/2 inch (Boss No. 3,4,5)

3шт.

10

A50820

WASHER

cover, bolt

9шт.

10

95-6

WASHER,3/8"

flat, 7/16 x 1 x 1/16 inch (11 x 25 x 2 mm)

1шт.

11

92-6

LOCK WASHER,3/8"

5шт.

12

25-106

NUT,3/8"-16, G5

hex, 3/8 inch oil

5шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

14

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

18

A51908

COVER

COVER injection, pump, drive

1шт.

19

A39925

GASKET

cover

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

21

92-6

LOCK WASHER,3/8"

9шт.

25

A160391

BRACKET

ternator

1шт.

26

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.
