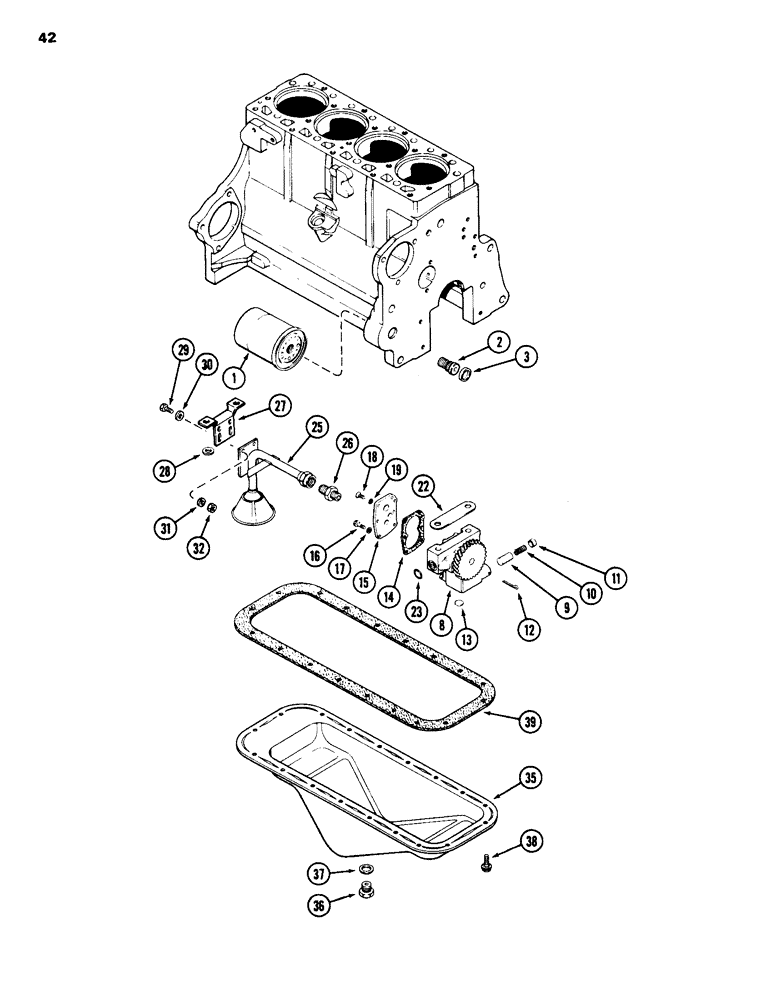

Запчасти Case IH 1835 (042) - OIL FILTER, 188 DIESEL ENGINE (02) - ENGINE

1

A146696

ENGINE OIL FILTER

FILTER engine, oil

1шт.

2

A153552

ADAPTER

ADAPTER oil, Serial Range: filter-block

1шт.

3

41-1016

PLUG,Cup, 1"

PLUG cup type, 1 inch diameter (25 mm), oil filter

1шт.

8

A38372

PUMP

PUMP ASSEMBLY, oil, Ref. 9 thru 19, oil pump

1шт.

8

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

8

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

9

A155144

VALVE, PRESSURE RELI

EF VALVE relief, Replaces: P/N A29279, oil pump

1шт.

10

G48500

SPRING

SPRING relief, valve, oil pump

1шт.

11

A29260

RETAINER

RETAINER spring, oil pump

1шт.

13

A39321

PLUG,Cup, 7/16"

PLUG cup type, 1/2 inch (13 mm) diameter, oil pump

1шт.

14

G46852

GASKET

GASKET cover, oil pump

1шт.

15

NSS

NOT SOLD SEPARAT

COVER, body, oil pump

1шт.

16

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, , Oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

16

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

4шт.

18

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW flat head, 1/4 NC x 5/8 inch, oil pump

2шт.

12

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Oil pump 1/8" x 2"

1шт.

19

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

22

G11337

SHIM,.002" Thk

SHIM, , Mounting (0.051 mm), Oil pump .002" Thk

1шт.

22

G11338

SHIM,.005" Thk

SHIM, , Mounting (0.127 mm), Oil pump .005" Thk

1шт.

23

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O-RING port, oil pump

1шт.

25

A156794

FILTER SCREEN

SCREEN ASSEMBLY, suction, oil pump

1шт.

26

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR straight, 5/8 tube 7/8-14 thread x 3/8 inch, PT, oil pump

1шт.

27

A156845

BRACKET

BRACKET support, screen, Replaces: P/N A155169, oil pump

1шт.

28

G35009

WASHER

WASHER flat, hardened, Replaces: P/N G49494, oil pump

2шт.

29

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, , Oil pump Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

30

95-4

WASHER,1/4"

WASHER flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm), oil pump

2шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

2шт.

32

25-104

NUT,1/4"-20, G5

NUT, , Oil pump 1/4"-20, G5

2шт.

35

A36782

PAN

PAN ASSEMBLY, oil, Ref. 36 and 37, oil pan

1шт.

36

A140222

PLUG

PLUG drain, oil pan

1шт.

37

A58608

GASKET

GASKET drain plug, oil pan

1шт.

38

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT hex, Sems, 5/16 NC x 3/4 inch, oil pan

18шт.

39

REF

INSTRUCTION

GASKET pan, order: P/N A44758 Fig. 52, oil pan

1шт.
