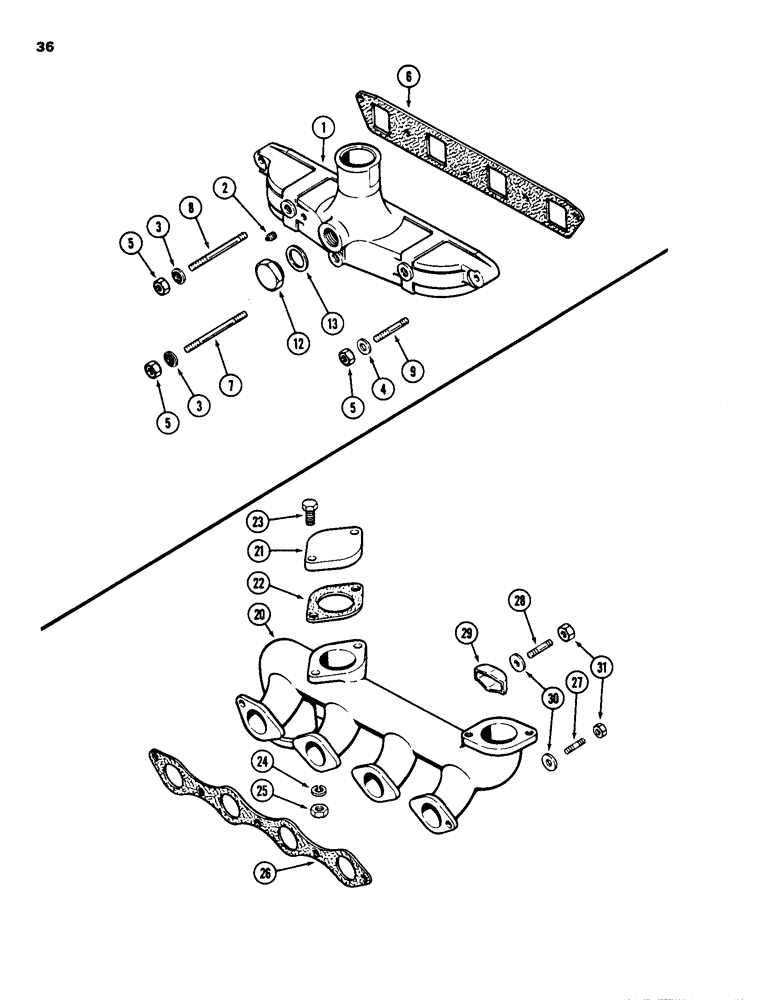

Запчасти Case IH 1835 (036) - INTAKE MANIFOLD, 188 DIESEL ENGINE (02) - ENGINE

1

A152536

MANIFOLD

ASSEMBLY, intake, Includes: Ref. 2 thru 5

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

square, head, 1/8 inch. PT, intake manifold

1шт.

3

A50694

DISC

WASHER sealing, intake manifold

3шт.

4

195-525

WASHER,3/8", SAE

flat, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm), intake manifold

2шт.

5

25-166

NUT,3/8"-16, G5, Hvy

hex, 3/8 inch. NC, intake manifold

5шт.

6

G46871

GASKET

manifold, intake

1шт.

7

A51500

STUD

center, 5-5/16 inch, intake manifold

1шт.

8

A153248

STUD

intermediate, 4-13/16 inch, intake manifold

2шт.

9

A140924

STUD

end, 2-5/8 inch, intake manifold

2шт.

12

A20917

PLUG

heater, hole, intake manifold

1шт.

13

A20916

MANIFOLD GASKET

GASKET plug, intake manifold

1шт.

20

A39233

MANIFOLD

ASSEMBLY, exhaust, Includes: Ref. 21 thru 25, exhaust manifold

1шт.

21

A38188

PLATE

cover, exhaust manifold

2шт.

22

G46853

MANIFOLD GASKET

cover, plate, exhaust manifold

2шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Exhaust manifold Hex, 3/8"-16 x 1 1/2", G5

4шт.

24

195-525

WASHER,3/8", SAE

flat, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm), exhaust manifold

4шт.

25

131-903

NUT,3/8"-16

NUT hex, Seez-Pruf, 3/8 inch. NC, exhaust manifold

4шт.

26

G46872

MANIFOLD GASKET

manifold, exhaust

1шт.

27

A29431

STUD

end, 3/8 NC x 1-3/4 inch, exhaust manifold

2шт.

28

A140924

STUD

clamp, 2-5/8 inch, exhaust manifold

3шт.

29

A35028

CLAMP

manifold, exhaust

3шт.

30

195-525

WASHER,3/8", SAE

flat, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm), exhaust manifold

5шт.

31

131-903

NUT,3/8"-16

NUT hex, Seez-Pruf, 3/8 inch NC, exhaust manifold

5шт.
