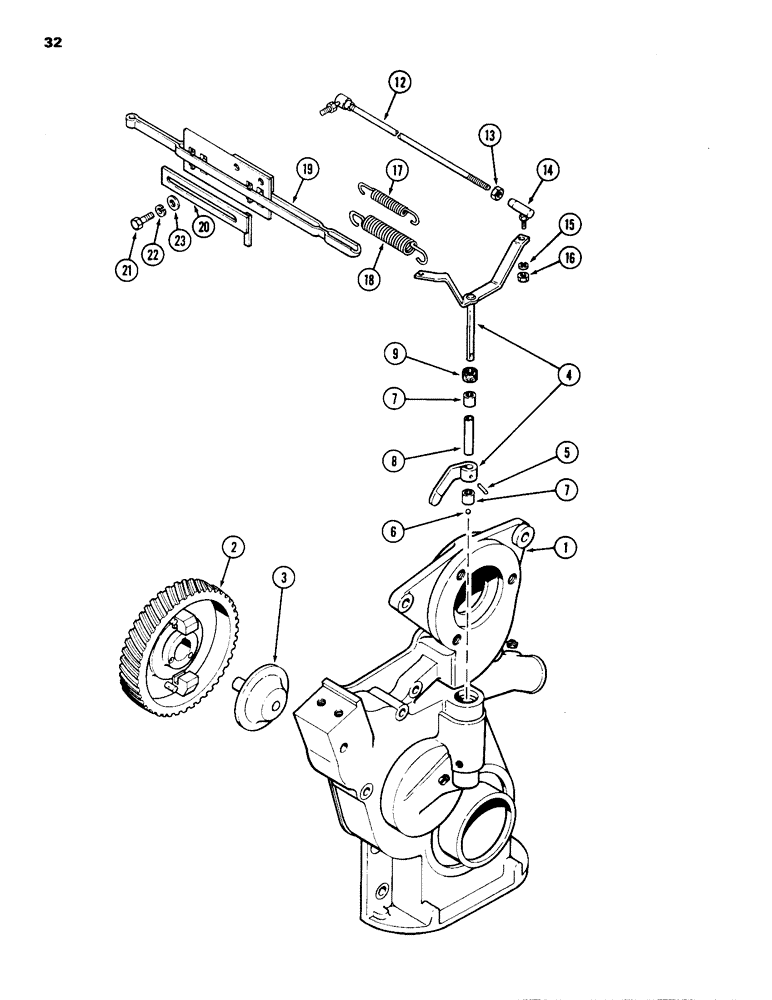

Запчасти Case IH 1835 (032) - GOVERNOR AND LINKAGE, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

REF

INSTRUCTION

COVER ASSEMBLY, timing gear, see Fig. 12

1шт.

2

G37066

GEAR

ASSEMBLY, camshaft, Includes: governor weights

1шт.

3

A29957

SHAFT

ASSEMBLY, governor

1шт.

4

A51754

LEVER

ASSEMBLY, governor control, Includes: Ref. 5

1шт.

5

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

6

211-5

BALL,3/16" Dia

thrust, 3/16 inch (5 mm) diameter

1шт.

7

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING needle, lever, shaft

2шт.

8

A30012

SPACER

thrust, governor, lever, shaft

1шт.

9

A30011

SEAL

dust, lever, shaft

1шт.

12

A38301

ROD

ASSEMBLY, governor, Includes: Ref. 13 and 14

1шт.

13

129-121

NUT,1/4"-28, G5

1шт.

14

A10329

BALL JOINT,1/4" - 28 x 1"

rod, end

1шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

16

129-121

NUT,1/4"-28, G5

2шт.

17

A30711

SPRING

inner, governor, control

1шт.

18

G47064

SPRING

outer, governor, control

1шт.

19

G45793

ROD

ASSEMBLY, governor, control

1шт.

20

G45792

STOP

GUIDE control, rod

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

23

195-103

WASHER,5/16"

flat, 5/16 x 11/16 x1/16 inch (8 x 17 x 2 mm)

2шт.
