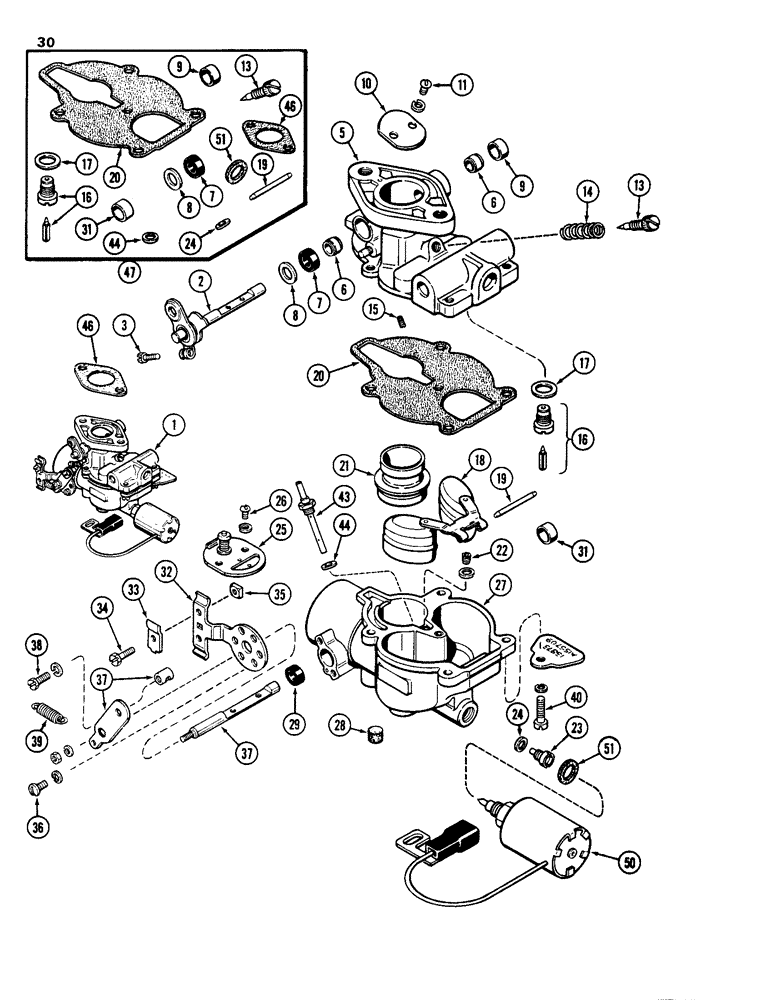

Запчасти Case IH 1835 (030) - CARBURETOR AND SOLENOID, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

A155709

CARBURETOR

ASSEMBLY, Facet No. 13873, Includes: P/N 155710, 155711, B51618

1шт.

A155710

CARBURETOR

ASSEMBLY, Facet No. OE-3604, order: P/N A155709, Includes: Ref. 2 thru 44

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY, throttle, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW stop

1шт.

5

NSS

NOT SOLD SEPARAT

BODY throttle

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING throttle, shaft

2шт.

7

A47774

RUBBER SEAL

throttle, shaft

2шт.

Part of repair kit, P/N A48388.

1шт.

8

B59360

RETAINER

WASHER seal, retaining

1шт.

Part of repair kit, P/N A48388.

1шт.

9

A40612

PLUG

throttle, shaft, hole

1шт.

Part of repair kit, P/N A48388.

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE throttle

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW throttle, plate

2шт.

NSS

NOT SOLD SEPARAT

PLUG body, not shown

2шт.

13

B51260

NEEDLE

NEEDLE idle, adjusting

1шт.

Part of repair kit, P/N A48388.

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING adjusting

1шт.

15

NSS

NOT SOLD SEPARAT

JET idle

1шт.

16

A47772

VALVE

ASSEMBLY, fuel, seat, Includes: Ref. 17

1шт.

Part of repair kit, P/N A48388.

1шт.

17

A166172

WASHER

fiber

1шт.

18

A48389

FLOAT

ASSEMBLY, carburetor

1шт.

19

B51427

GASKET

AXLE float

1шт.

Part of repair kit, P/N A48388.

1шт.

20

A47773

GASKET

bowl

1шт.

Part of repair kit, P/N A48388.

1шт.

21

NSS

NOT SOLD SEPARAT

VENTURI carburetor

1шт.

22

NSS

NOT SOLD SEPARAT

JET well, vent

1шт.

23

A47769

JET

main

1шт.

24

B51619

WASHER

main, jet

1шт.

Part of repair kit, P/N A48388.

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY, choke

1шт.

26

NSS

NOT SOLD SEPARAT

SCREW choke, plate

2шт.

27

NSS

NOT SOLD SEPARAT

BOWL ASSEMBLY, fuel, Includes: Ref. 28, 29 and 31

1шт.

28

NSS

NOT SOLD SEPARAT

DISC drain

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER packing, felt

1шт.

31

B51509

PLUG

choke, shaft, hole

1шт.

Part of repair kit, P/N A48388.

1шт.

32

NSS

NOT SOLD SEPARAT

BRACKET choke, cable, Includes: Ref. 33 thru 35

1шт.

33

NSS

NOT SOLD SEPARAT

CLIP cable

1шт.

34

NSS

NOT SOLD SEPARAT

SCREW clip

1шт.

35

NSS

NOT SOLD SEPARAT

NUT clip, retaining

1шт.

36

NSS

NOT SOLD SEPARAT

SCREW bracket

2шт.

37

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY, choke, Includes: Ref. 38

1шт.

38

NSS

NOT SOLD SEPARAT

SCREW swivel

1шт.

39

NSS

NOT SOLD SEPARAT

SPRING return

1шт.

40

NSS

NOT SOLD SEPARAT

SCREW, Serial Range: bowl-body

4шт.

43

NSS

NOT SOLD SEPARAT

JET ASSEMBLY, discharge

1шт.

44

51624

WASHER discharge, jet

1шт.

Part of repair kit, P/N A48388.

1шт.

NSS

NOT SOLD SEPARAT

PLUG bowl, drain, not shown

1шт.

46

A29956

GASKET

, Serial Range: carburetor-manifold

1шт.

Part of repair kit, P/N A48388.

1шт.

47

A48388

KIT

repair, Includes: Refs. 7, 8, 9, 13, 16, 19, 20, 24, 31, 44, 46, 47, 51

1шт.

50

A155711

SOLENOID

shut-off

1шт.

51

B51618

WASHER

GASKET - solenoid

1шт.

Part of repair kit, P/N A48388.

1шт.
