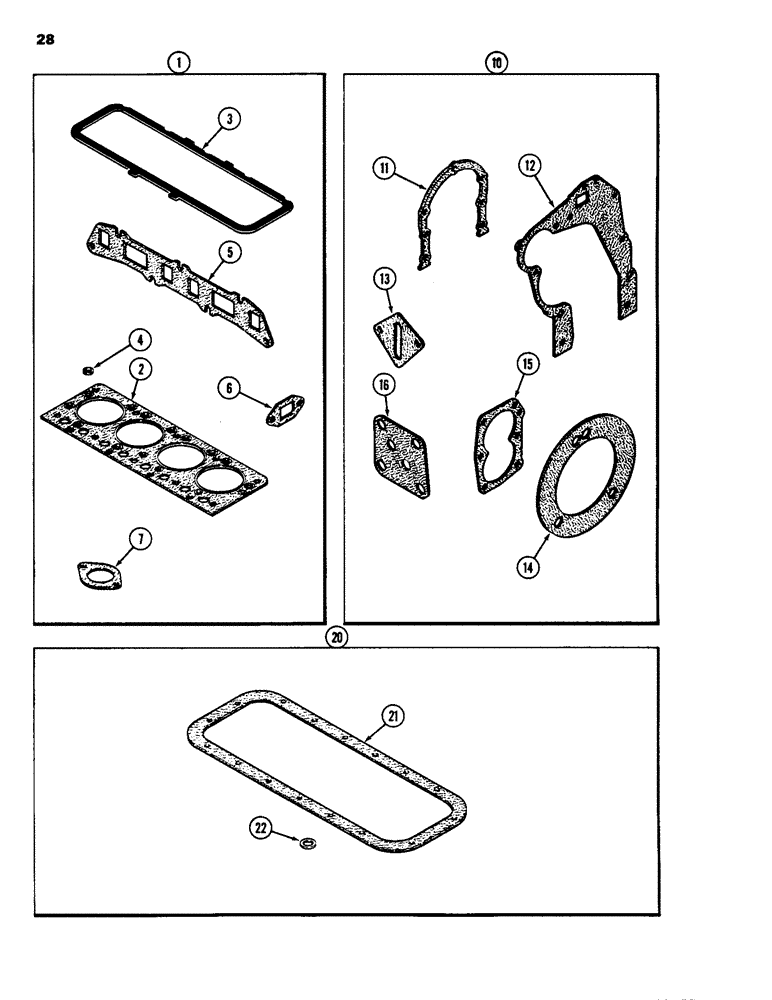

Запчасти Case IH 1835 (028) - ENGINE GASKET KITS, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

G11963

GASKET

KIT gasket, valve, grind, Includes: Ref. 2 thru 7

1шт.

For complete engine overhaul order: P/N G11963, A41465 AND A40710.

1шт.

2

G46870

CYLINDER HEAD GASKET

cylinder, head

1шт.

3

A43021

GASKET

cylinder, head, cover

1шт.

4

G46851

SEAL

valve, stem

4шт.

5

A30030

GASKET

manifold

1шт.

6

A30003

GASKET

water, outlet, elbow

1шт.

7

A29956

GASKET

carburetor, with 11/32 inch, bolt, holes

1шт.

7

G46826

GASKET

carburetor, with 13/32 inch bolt holes not used this application

1шт.

10

A41465

GASKET

KITgasket, cylinder, block, Includes: Ref. 11 thru 16

1шт.

For complete engine overhaul order: P/N G11963, A41465 AND A40710.

1шт.

11

A39188

GASKET

rear, oil, seal, retainer

1шт.

12

A38226

GASKET

timing, gear, cover

1шт.

13

A65561

GASKET

fuel, pump

1шт.

14

A38083

GASKET

water, pump

1шт.

15

G46852

GASKET

oil, pump, cover

1шт.

16

G46854

GASKET

oil, filter, bracket, not used for this application

1шт.

20

D128322

RELAY

gasket, oil, pan, Includes: Ref. 21 and 22

1шт.

For complete engine overhaul order: P/N G11963, A41465 AND A40710.

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET oil, pan

1шт.

22

A58608

GASKET

drain, plug, nylon

1шт.

22

A34827

GASKET

drain, plug, copper, not used for this application

1шт.
