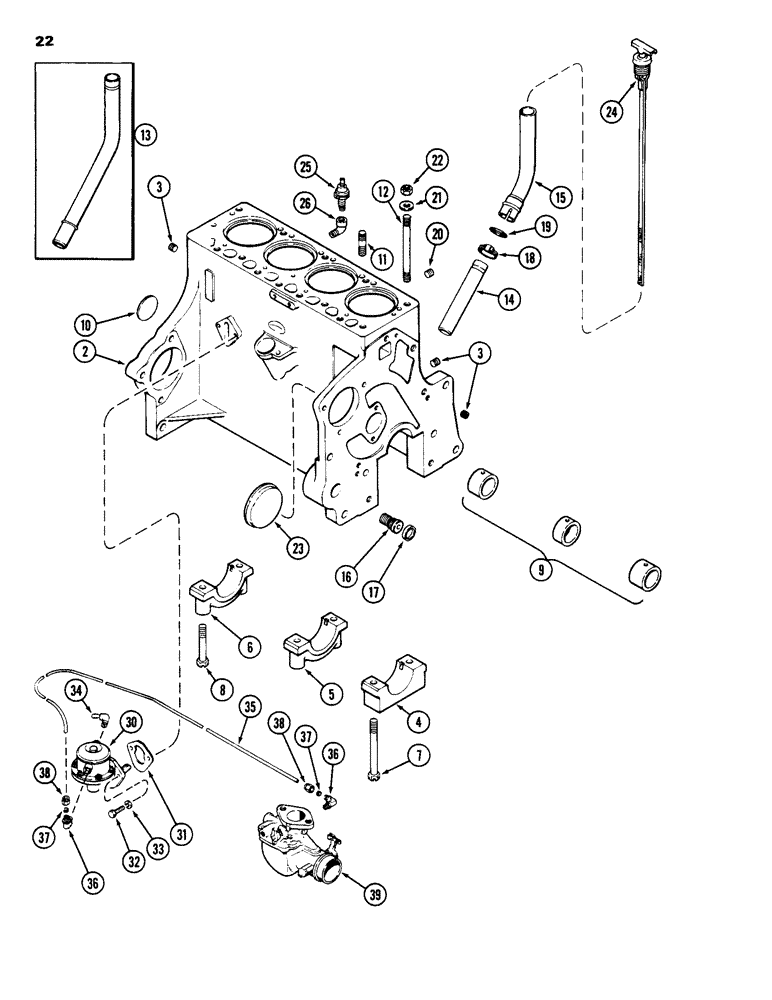

Запчасти Case IH 1835 (022) - CYLINDER BLOCK, 148B SPARK IGNITION ENGINE, FUEL PUMP (02) - ENGINE

A40586

SKELETON ENGINE

BLOCK ASSEMBLY, cylinder, short, Includes: Ref. 2, also crankshaft and bearing, connecting rods, pistons, camshaft, oil pump and timing gears

1шт.

2

A37828

SKELETON ENGINE

BLOCK ASSEMBLY, cylinder, stripped, casting No. A37470, Includes: Ref. 3 thru 17

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Cylinder block Hex Soc, 1/4"-18 NPTF

3шт.

4

G2035

CAP

front, main, bearing, cylinder block

1шт.

5

G2036

CAP

center, main, bearing, cylinder block

1шт.

6

G2037

CAP

rear, main, bearing, cylinder block

1шт.

7

G49059

BOLT

bearing, cap, front, 4-3/4 inch, cylinder block

2шт.

8

G49037

BOLT

bearing, cap, 3 inch, cylinder block

4шт.

9

REF

INSTRUCTION

SET bushing, camshaft, see Fig. 20, cylinder block

1шт.

10

41-1030

PLUG,Cup, 1 7/8"

expansion, 2-1/8 inch (54 mm) diameter, cylinder block

1шт.

If a 2 1/8 inch plug is needed, the P/N is 41-1034.

1шт.

11

A30057

STUD

1/2 inch, NF x 2 inch, cylinder block

9шт.

12

A29436

STUD

1/2 inch, NF x 5-7/8 inch, cylinder block

5шт.

13

A39281

TUBE

oil, filler, J.I. Case installed, cylinder block

1шт.

14

A37149

TUBE

oil, filler, service repair, cylinder block

1шт.

15

A37407

TUBE

oil, filler, extension, service repair, cylinder block

1шт.

16

A153552

ADAPTER

oil, filter, Replaces: P/N A37206, cylinder block

1шт.

P/N A47772 was Rubber, now subs to P/N A182056, that is made of metal.

1шт.

17

41-1016

PLUG,Cup, 1"

cup, 1 inch diameter (25.4 mm), cylinder block

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP tube, 1-3/16 to 1-3/4 inch, cylinder block

1шт.

19

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

tube, seal, cylinder block

1шт.

20

221-662

PLUG,Hex Hd, 1/4"-18

hex, head, 1/4 inch, PT, cylinder block

1шт.

21

G49404

WASHER

stud, nut, cylinder block

14шт.

22

A30021

NUT

head, stud

14шт.

23

41-1052

PLUG,Cup, 3 1/4"

cup, 3-1/4 inch diameter (83 mm), cylinder block

1шт.

24

A136379

DIPSTICK

oil, level, cylinder block

1шт.

25

A162297

SWITCH

SENDER oil, pressure, cylinder block

1шт.

26

221-401

ELBOW,45 Degree, 1/8"-27, NPT

45 degree, 1/8 inch, PT, cylinder block

1шт.

30

G45778

PUMP

ASSEMBLY, fuel pump

1шт.

31

A65561

GASKET

mounting, fuel pump

1шт.

32

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Fuel pump

2шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Fuel pump 5/16"

2шт.

34

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

ELBOW 90 degree, 1/8 PT x 5/16 inch barb, fuel pump

1шт.

35

A141054

TUBE

LINE fuel, pump to carburetor, fuel pump

1шт.

36

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ASSEMBLY, 90 degree, 5/16 tube x 1-2/-24 thread x 1/8 inch, PT, fuel pump, Includes: 37 and 38

2шт.

37

222-653

SLEEVE,5/16" Tube, Comp

5/16 inch tube, fuel pump

1шт.

38

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT hex, 5/16 tube 1/2-24 inch thread, fuel pump

1шт.

39

REF

INSTRUCTION

CARBURETOR ASSEMBLY, engine fuel, see Fig. 30, fuel pump

1шт.
