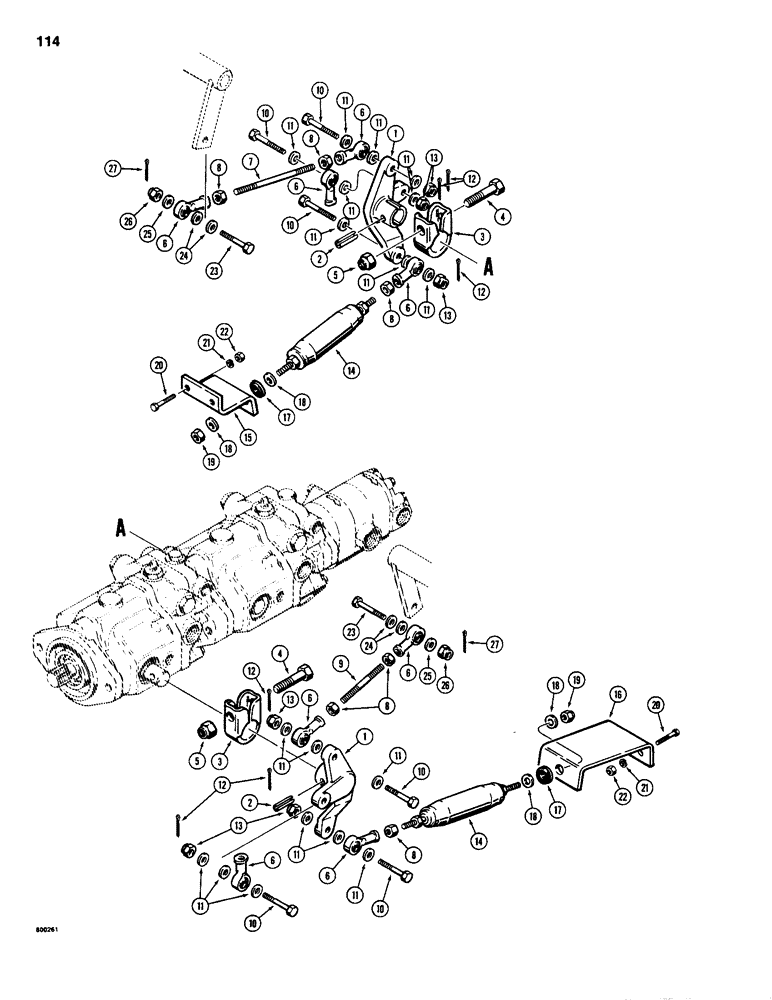

Запчасти Case IH 1835 (114) - TANDEM PUMP CONTROL LEVERS AND MOUNTING (11) - TRACKS/STEERING

1

D77928

LEVER

pump, shock absorber to tandem pump

2шт.

2

138-173

LOCK PIN,3/8" x 1 3/8", Slotted

PIN, 3/8" x 1 3/8", Slotted

2шт.

3

D72703

CLAMP

pin retaining, to tandem pump

2шт.

4

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

5

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

6

S108030

JOINT

ball, female, 3/8 inch - 24 NF

8шт.

7

D90667

ROD

control, L.H.

1шт.

8

25-116

NUT,Hex, 3/8"-24, G5

hex, 3/8 inch - 24 NF

6шт.

9

D83595

ROD

control, R.H.

1шт.

10

D77933

BOLT

special

6шт.

11

D41740

WASHER

special, 3/8

18шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

6шт.

13

131-6

LOCK NUT,3/8"-16, GC

NUT hex, self-locking, 3/8 inch - 16 NC

6шт.

14

D66538

SHOCK ABSORBER

ABSORBER shock, control

2шт.

15

D65918

BRACKET

mounting, shock absorber, L.H.

1шт.

16

D83597

BRACKET

mounting, shock absorber, R.H.

1шт.

17

49566

GROMMET

rubber, shock absorber

2шт.

18

195-25

WASHER,3/8"

4шт.

19

131-528

LOCK NUT,3/8"-24

NUT hex, self-locking, 3/8 inch - 24 NF

2шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

hex, 3/8 inch - 16 NC

4шт.

23

D72104

BOLT

special

2шт.

24

D41740

WASHER

special, 3/8 inch

4шт.

25

195-25

WASHER,3/8"

2шт.

26

131-6

LOCK NUT,3/8"-16, GC

NUT hex, self-locking, 3/8 inch - 16 NC

2шт.

27

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.
